Lumens Depot LED Corn Lights – Comprehensive Overview

Available Wattages

• 80W, 100W, 120W, 160W, 200W, 250W, 300W

Color Temperature

• 5000K (Daylight)

Lens Color Available

• Clear Cover

Wattage Equivalent

• Replaces 160W-1200W MH, HPS, HID bulbs

Lumens Output

• 12000 LM (80W), 15000 LM (100W), 18000 LM (120W), 24000 LM (160W), 30000 LM (200W), 37500 LM (250W), 45000 LM (300W)

Beam Angle

• 360° Degree Beam Angle

Voltage Options

• 100-277V or 277-480V

Operating Temperature

• -40℉ – 113℉

Power Factor

• 90%

Material Composition

• Aluminum + PBT (Polybutylene Terephthalate)

Certifications

• UL, cUL, DLC Approved

Lifespan

• 50,000 Hours

Manufacturer’s Warranty

• 5 Years

LED Corn Bulb Features

Purpose & Application

The Lumens Depot LED Corn Bulb is designed as a replacement for traditional 360-degree lighting solutions, such as metal halide (MH), compact fluorescent (CFL), high-intensity discharge (HID), and high-pressure sodium (HPS) bulbs. It is particularly suitable for large commercial and industrial areas like parking lots, gas stations, warehouses, and workshops. This energy-efficient LED lighting solution seamlessly integrates into existing fixtures, offering a cost-effective way to reduce energy consumption.

Durability & Cooling System

The design incorporates a Fin Heatsink with an active Sunon fan for cooling, ensuring optimal heat management. The PC cover protects the LEDs from dust, insects, and humidity, making it ideal for various working environments. The driver is fully sealed with thermal paste, effectively dispersing heat to prevent overheating. Additionally, the use of high-efficiency 150LM/W LED chips enhances light output, improving energy efficiency.

Optics & Versatility

The LED Corn Bulb features a transparent PC cover, offering wide coverage with options ranging from 80W to 300W. Available with an E39 socket, it can be used in a variety of applications with either sealed or open fixtures.

Electrical & Surge Protection

The bulb includes standard 6kV surge protection to safeguard against power surges. It operates within the voltage range of 100-277V, with no ballast required for installation. The 360° beam angle provides extensive light coverage, and it is equipped with a top-brand Rubycon capacitor for enhanced reliability. Furthermore, it produces no UV or IR radiation, making it safer for the environment.

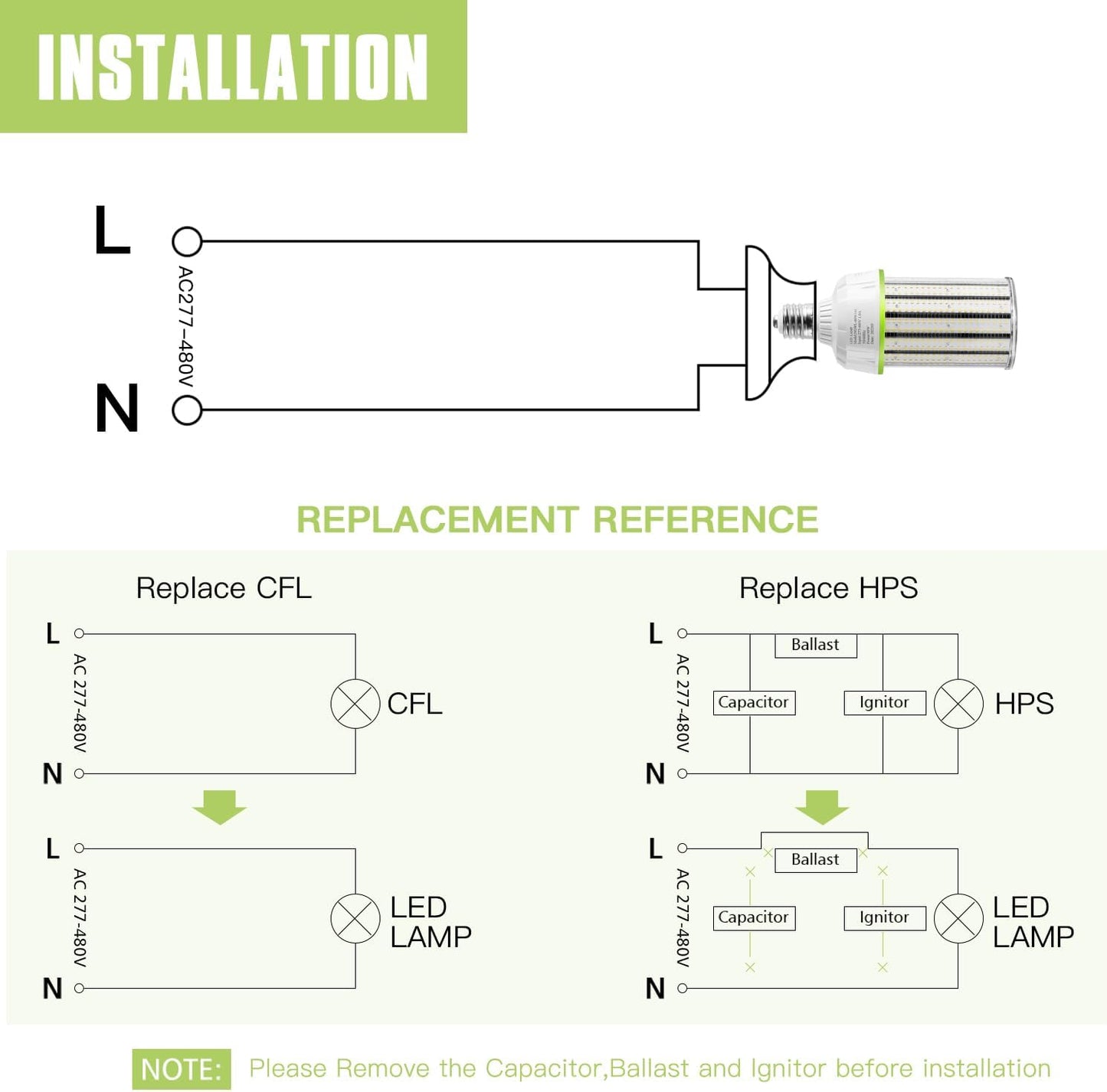

Installation

The installation process is simple and straightforward, with the LED Corn Bulb being compatible with traditional fixtures. To install, you must remove or bypass the ballast in your electric circuit before screwing in the bulb (E39 base). The recommended installation height for optimal performance is between 10ft and 15ft.

Environmental Suitability

The bulb is UL, cUL, and DLC certified, ensuring it meets safety standards for various environments. It is suitable for sealed, dry, and humidity-prone environments, operating efficiently in temperatures ranging from -40°C to 45°C.

Product Highlights

Ultra Bright & Energy-Efficient

• The 80W LED Corn Bulb offers 12,000 lumens with a 360° beam angle and a color temperature of 6000K. It is an excellent replacement for 350W HID bulbs, consuming over 90% less electricity than traditional lighting solutions.

High-Quality & Durable

• The 80W LED Corn Light with E39 base is ETL certified, ensuring minimal maintenance. It is perfect for large-area commercial and industrial applications such as shopping malls, supermarkets, dining rooms, gyms, workshops, warehouses, storage rooms, and basements.

Easy Installation

• Designed for open fixtures only, the 80W LED Corn Bulb features an E39 Mogul Base. Simply screw the bulb into the socket, ensuring the ballast is removed or bypassed. The installation height should be between 10ft and 15ft for the best lighting results.

Long Lifespan & Cost-Effective

• With a lifespan of 50,000 hours, the 80W LED Corn Cob Bulb will last approximately 23 years based on 6 hours of use per day. This extended lifespan helps reduce energy consumption, maintenance, and replacement costs.

Widely Used

• The high-power LED Bulbs are ideal for high-ceiling applications, including workshops, high bay shops, garages, warehouses, office lighting, wall packs, barns, and pendant lighting. These LED lights offer stable and durable illumination for commercial and industrial settings. However, note that the E39 LED Corn Light is not suitable for dusty or water vapor-heavy environments.

5-Year Service

• Lumens Depot offers a 5-year service for all LED Corn Cob Bulbs. If you encounter any issues or have questions, feel free to contact us via email, and we will respond within 24 hours.

Whether you're upgrading your current lighting or outfitting a new commercial space, Lumens Depot's LED Corn Lights offer an efficient, long-lasting, and cost-effective solution for all your industrial lighting needs.
