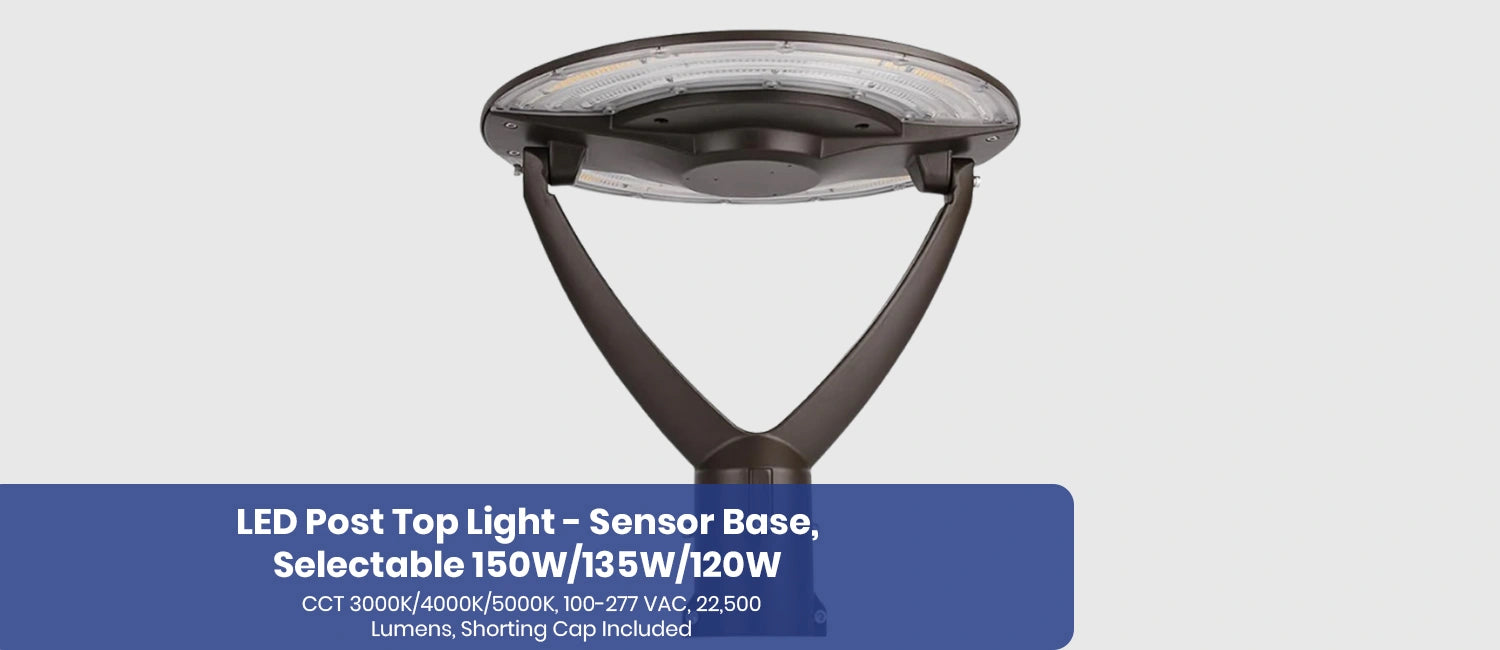

LED Post Top Light - Sensor Base, Selectable 150W/135W/120W and CCT 3000K/4000K/5000K, 100-277 VAC, 22,500 Lumens, Shorting Cap Included

SKU: SKU:25-PTL-019

47 in stock

Enjoy additional discounts on orders above $500 at Lumens Depot.

Learn More

$262.00 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

Color: Matte Black

View full details

Details

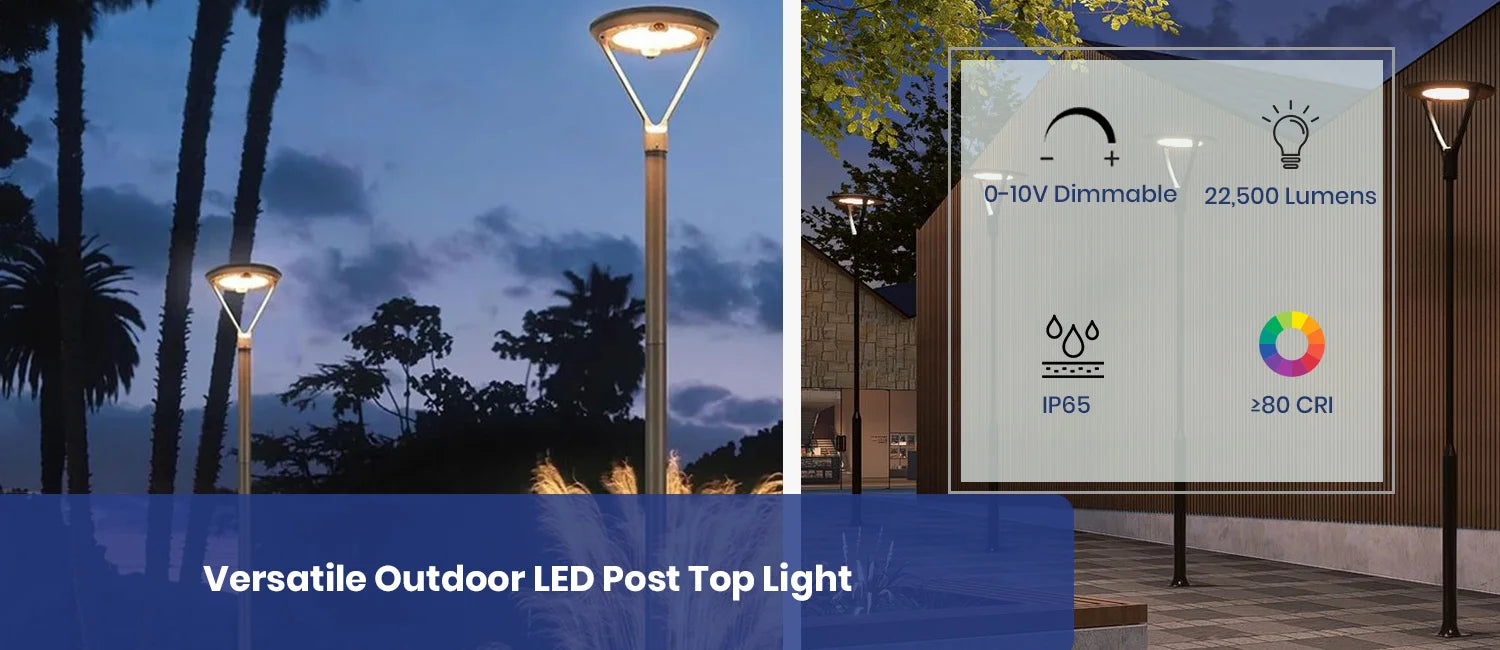

Versatile Outdoor LED Post Top Light
This selectable LED post top light offers adjustable wattage and CCT settings, allowing full control over brightness and color output. It delivers up to 22,500 lumens, providing reliable illumination for parks, pathways, campuses, and public outdoor areas.

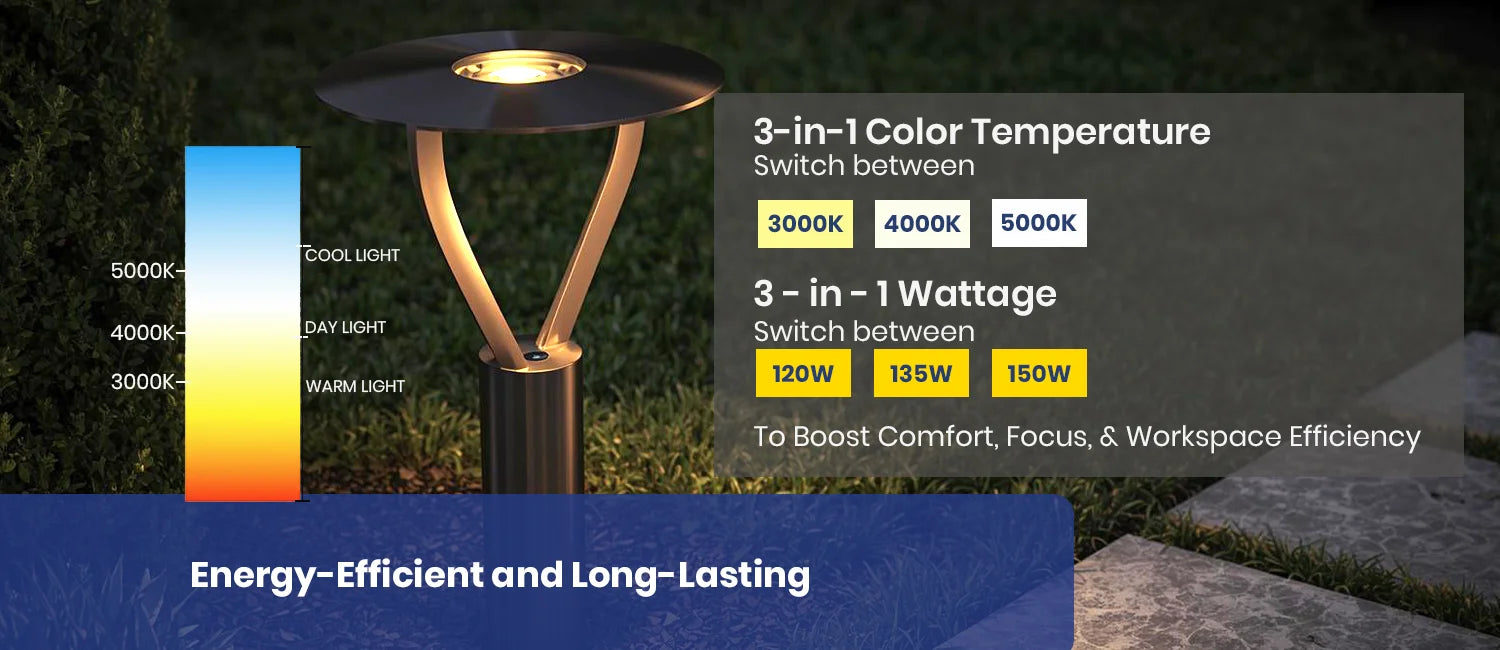

Customizable Illumination Settings
Choose between 150W, 135W, or 120W output and select 3000K, 4000K, or 5000K color temperature. The fixture adapts easily to residential or commercial environments requiring specific brightness or ambiance.

Sensor-Ready Operation
Designed with a sensor base for optional dusk-to-dawn photocell installation, providing flexible lighting control and energy-saving operation. A shorting cap is included for use when a photocell is not required.

Efficient and Long-Lasting Design
LED technology ensures high efficiency and reduced operating costs. With a 50,000-hour rated lifespan and universal 100–277 VAC compatibility, the fixture offers dependable lighting with minimal maintenance.

Durable Outdoor Construction
The weather-resistant housing and UV-stabilized lens provide excellent durability in harsh environments. Corrosion-resistant materials ensure long-term performance and consistent light clarity.

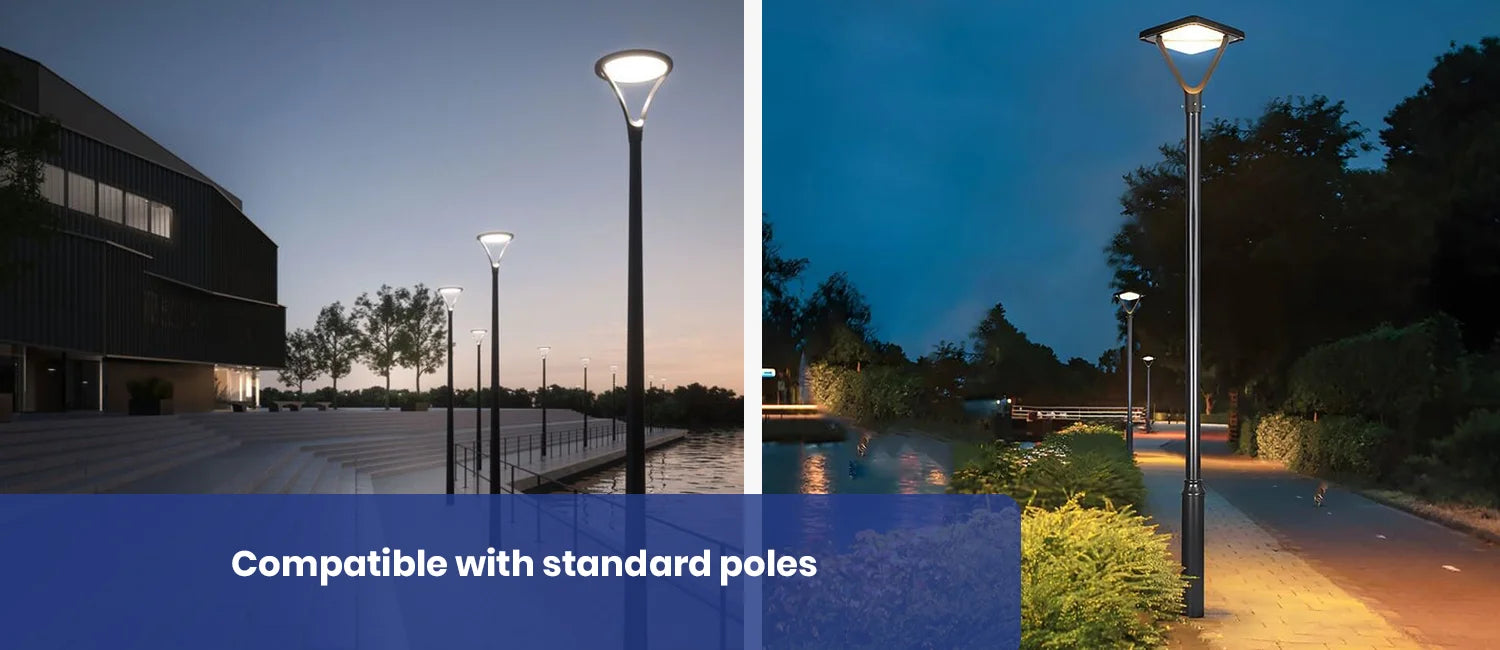

Easy Pole-Mounted Installation
Designed for standard pole mounts, the fixture installs quickly with simple wiring. The included shorting cap ensures a hassle-free setup for both retrofit and new outdoor lighting projects.

Specifications

Beam angle	120°	Cct	3000K/4000K/5000K
Certification	UL and DLC©	Chip type	SMD3030
Cri	≥80	Dimmable	0-10V
Efficacy	150 lm/w	Frequency	50/60HZ
Ip rating	IP65	Life hours	50000 Hours
Lumens	22,500 Lumens	Operating temperature	-40°F to 113°F
Power factor	[">0.9 "]	Voltage	100-277 VAC
Warranty	5 Years	Watt	150W/135W/120W

Downloads

Installation Guide

FAQS

What is the advantage of the sensor base?

The built-in sensor base lets you easily add a photocell or smart sensor later without replacing the fixture.

Why is a shorting cap included?

The shorting cap allows the light to operate normally until you decide to install a photocell or lighting sensor.

Can I upgrade this fixture to automatic dusk-to-dawn lighting later?

Yes. Simply replace the shorting cap with a compatible photocell whenever automatic operation is needed.

Who is this post top light best suited for?

It's an excellent choice for municipalities, HOAs, schools, commercial campuses, and large outdoor properties.

Will this light improve visibility in large open spaces?

Yes. Its 22,500-lumen output provides bright, consistent illumination for roads, parking areas, and public spaces.

Can one fixture be used for different project requirements?

Yes. Adjustable wattage and CCT allow the same fixture to meet multiple lighting specifications.

Is this fixture suitable for new construction and retrofits?

Yes. It installs easily on standard pole mounts, making it ideal for both new installations and lighting upgrades.

Does this light require frequent servicing?

No. The durable LED design delivers up to 50,000 hours of reliable performance with minimal maintenance.

Can this fixture be integrated into energy management systems?

Yes. The sensor-ready design and 0–10V dimming make it compatible with many lighting control systems.

Why choose a sensor-ready post top light instead of a standard model?

A sensor-ready fixture offers greater flexibility, allowing you to add smart controls in the future without replacing the entire light.
