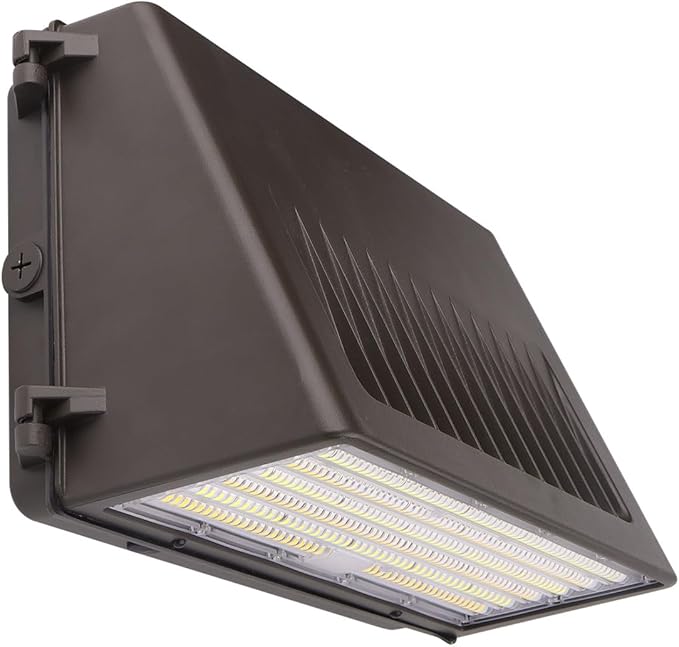

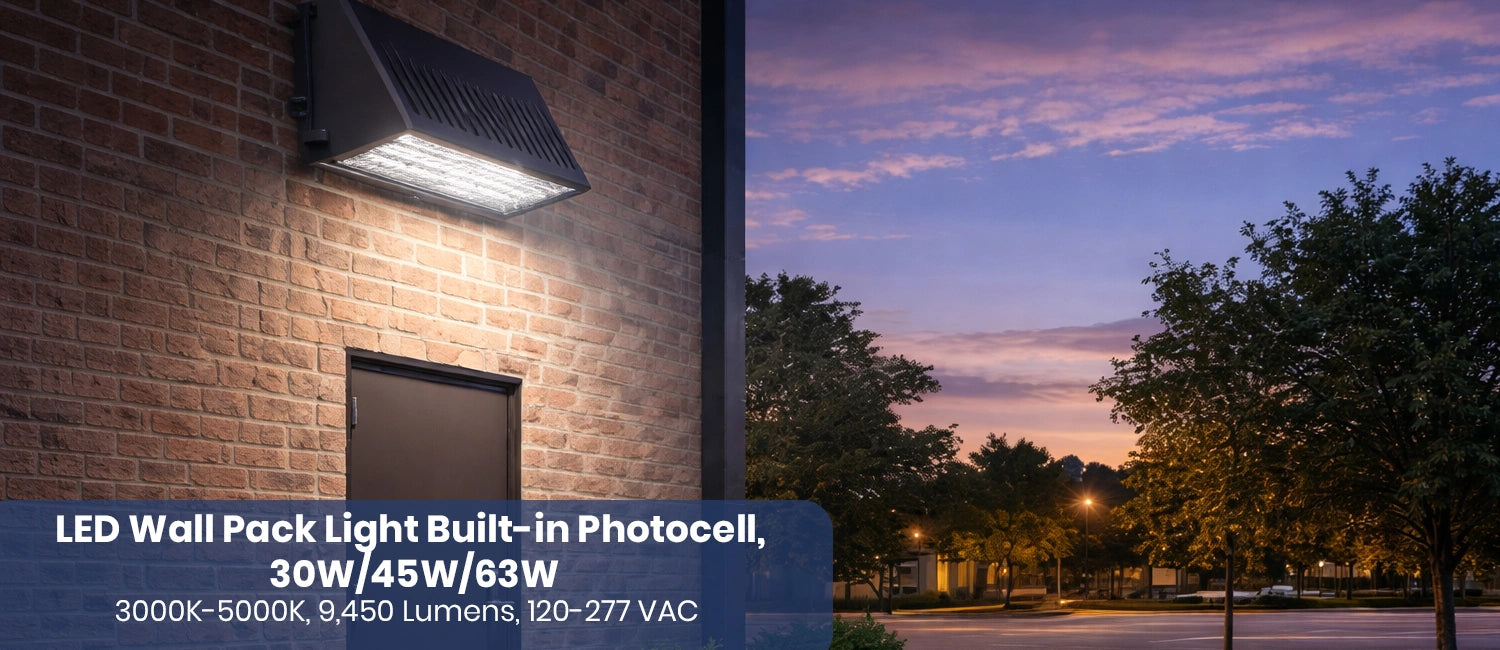

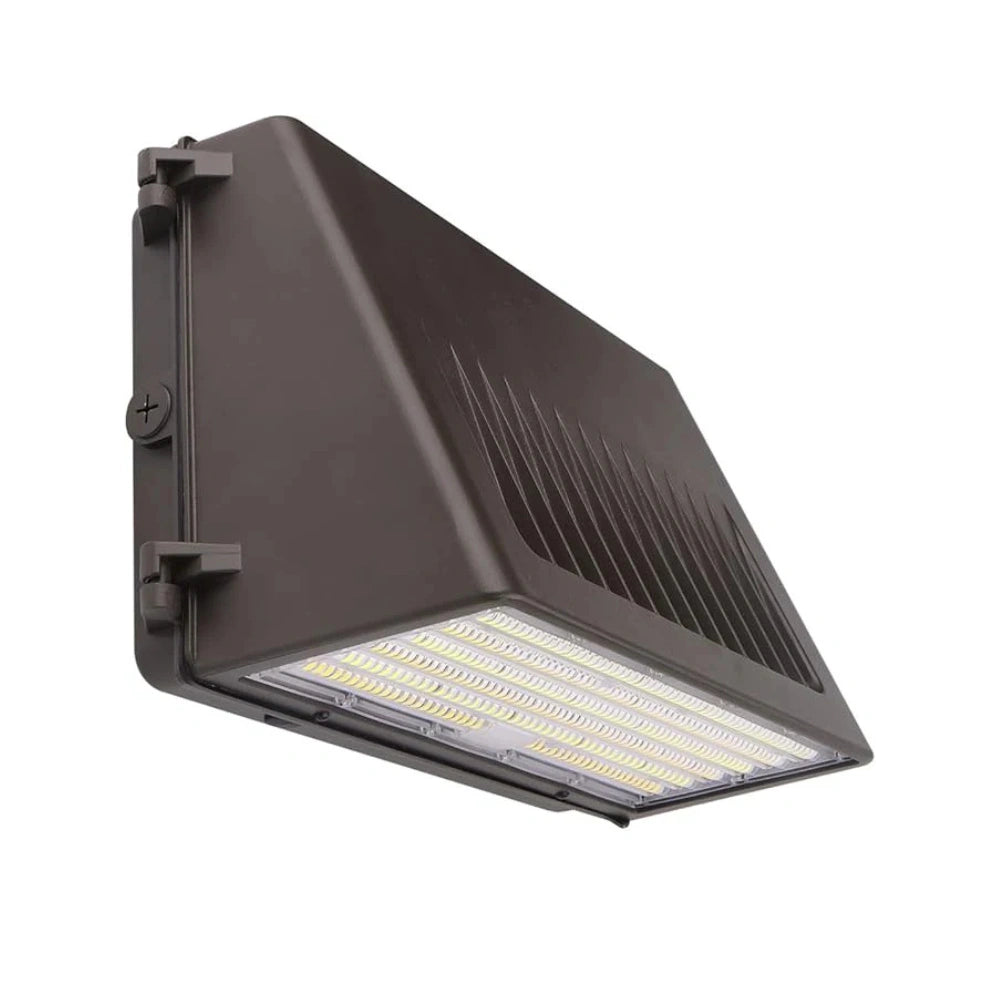

LED Wall Pack Light Built-in Photocell, 30W/45W/63W, 3000K-5000K, 9,450 Lumens, 120-277 VAC

SKU: SKU:7-WL-046

92 in stock

Enjoy additional discounts on orders above $500 at Lumens Depot.

Learn More

$109.00 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

View full details

Details

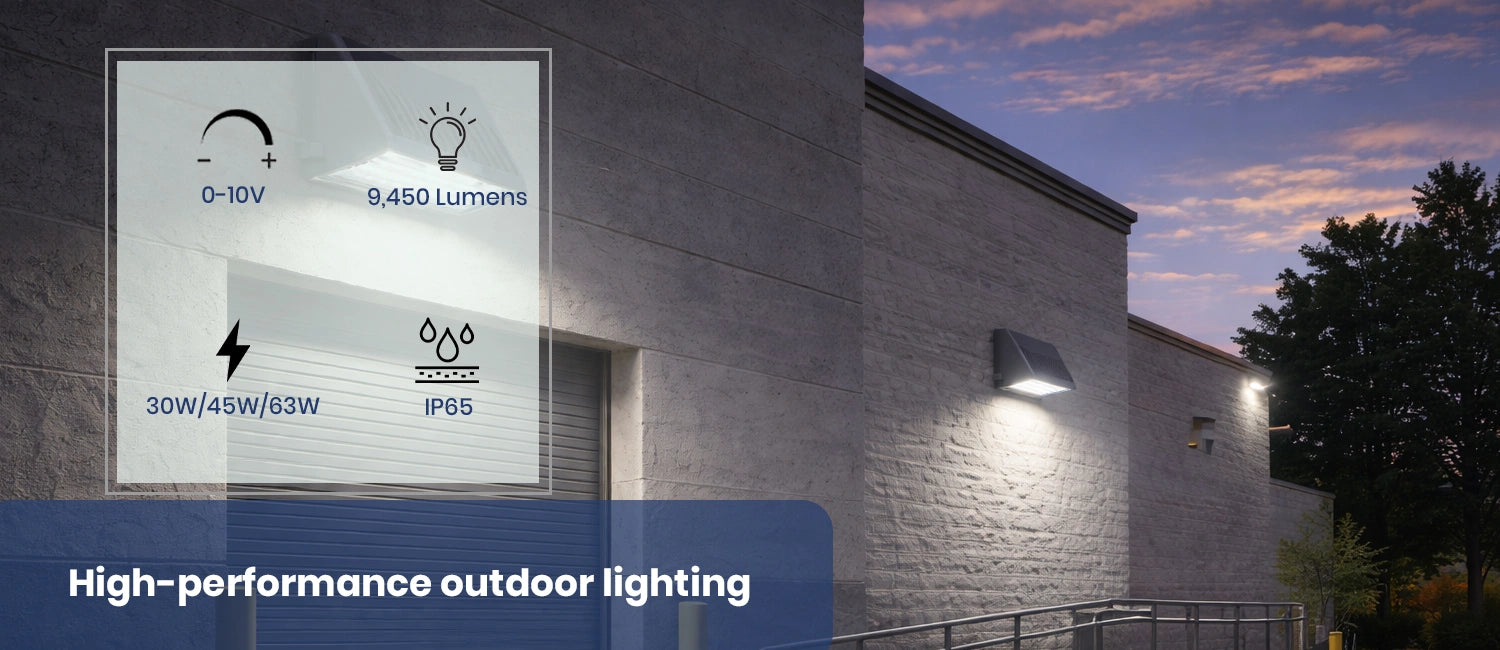

High-Performance Outdoor Lighting
The LED Wall Pack Light delivers powerful, uniform outdoor illumination with selectable wattage options of 30W, 45W, or 63W, producing up to 9,450 lumens. It is designed to meet demanding commercial, industrial, and municipal lighting requirements efficiently.

Energy Efficiency and Control
With high efficacy up to 150 lm/W, this fixture reduces energy consumption while maintaining brightness. Integrated 0–10V dimming allows smooth control and compatibility with modern lighting systems for enhanced energy savings and flexibility.

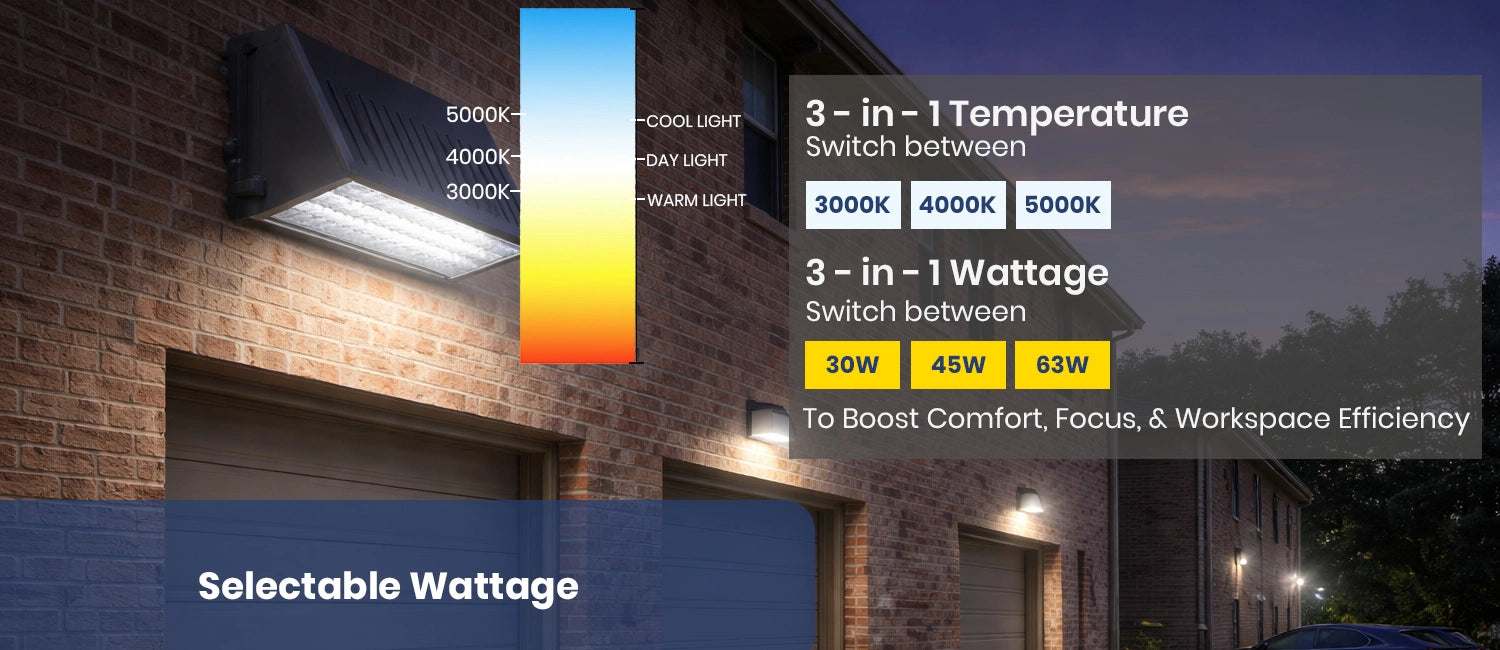

CCT Tunable Versatility
The wall pack features selectable color temperatures of 3000K, 4000K, and 5000K. This tunability allows users to adapt lighting ambiance and visibility to different exterior environments and functional needs.

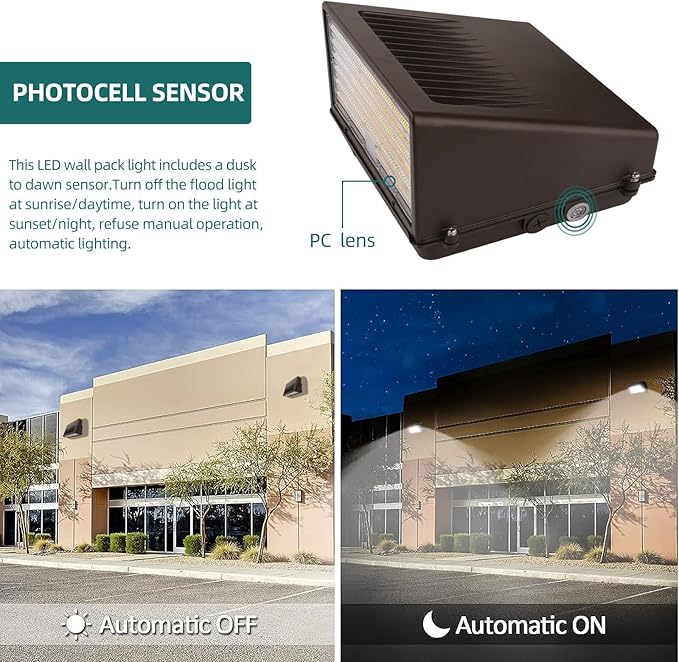

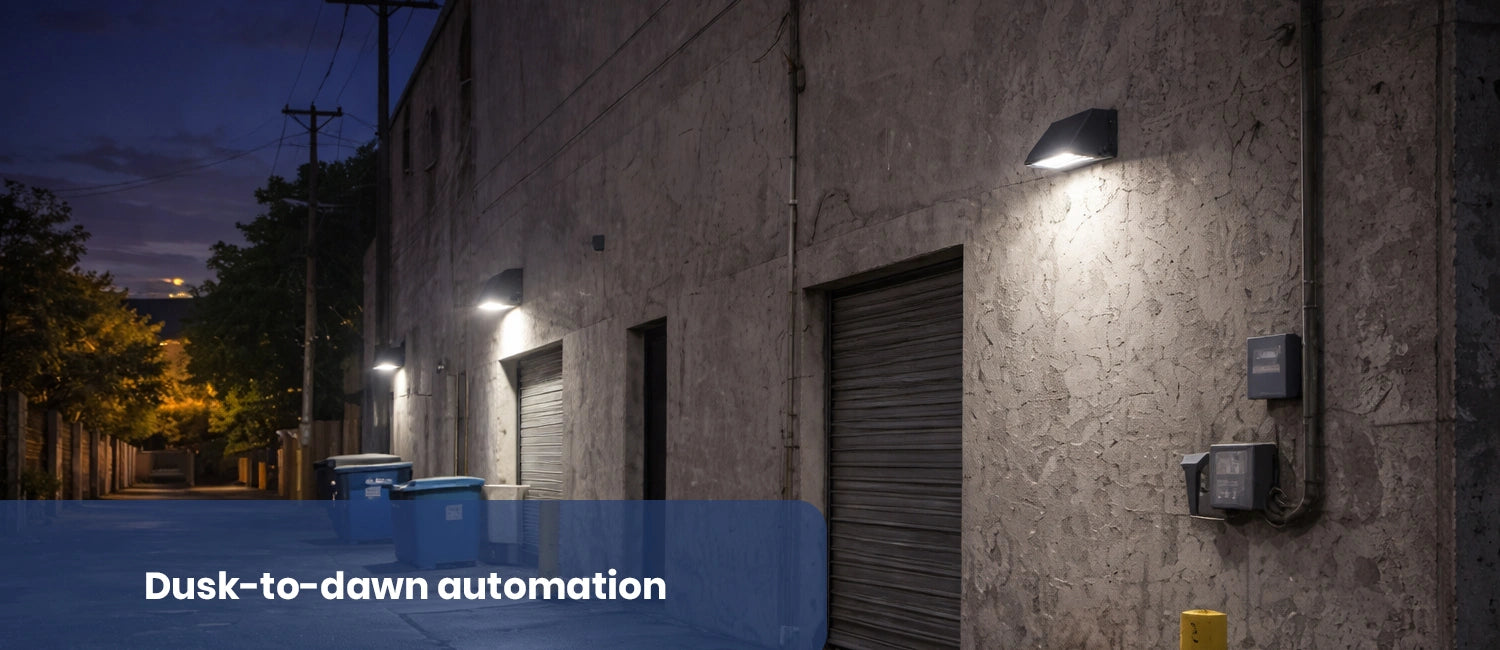

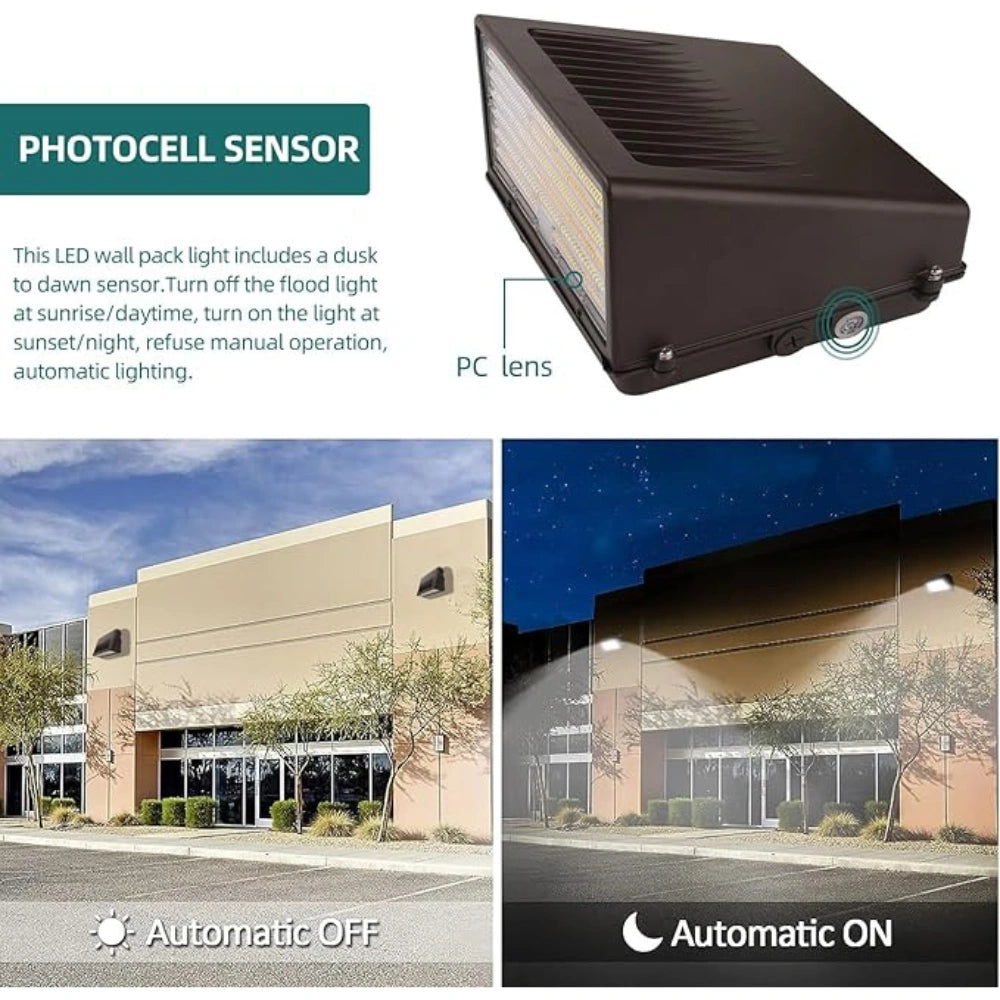

Built-In Smart Automation

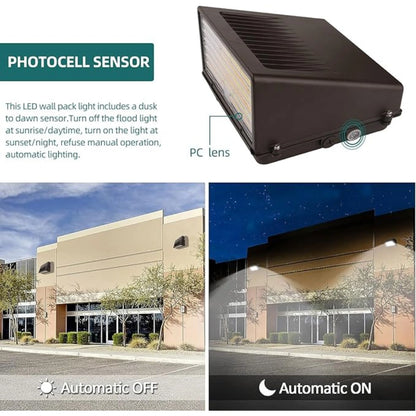

A built-in photocell enables automatic dusk-to-dawn operation, improving security and convenience while minimizing manual control and maintenance. This smart feature ensures lighting is used only when needed.

Durable Outdoor Construction
Constructed with rugged die-cast aluminum and a high-impact polycarbonate lens, the fixture is fully sealed against dust and moisture. Its durable dark bronze finish and IP-rated design ensure long-term outdoor reliability.

Ideal Commercial Applications

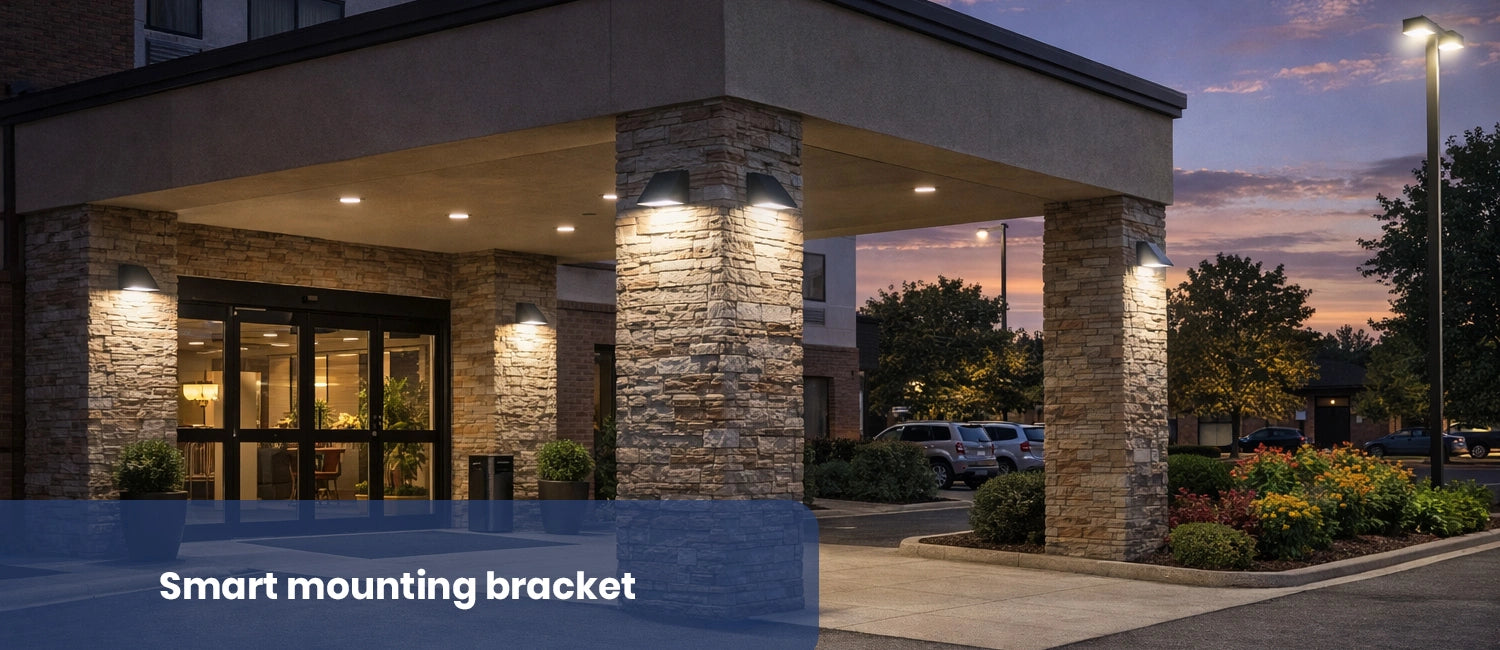

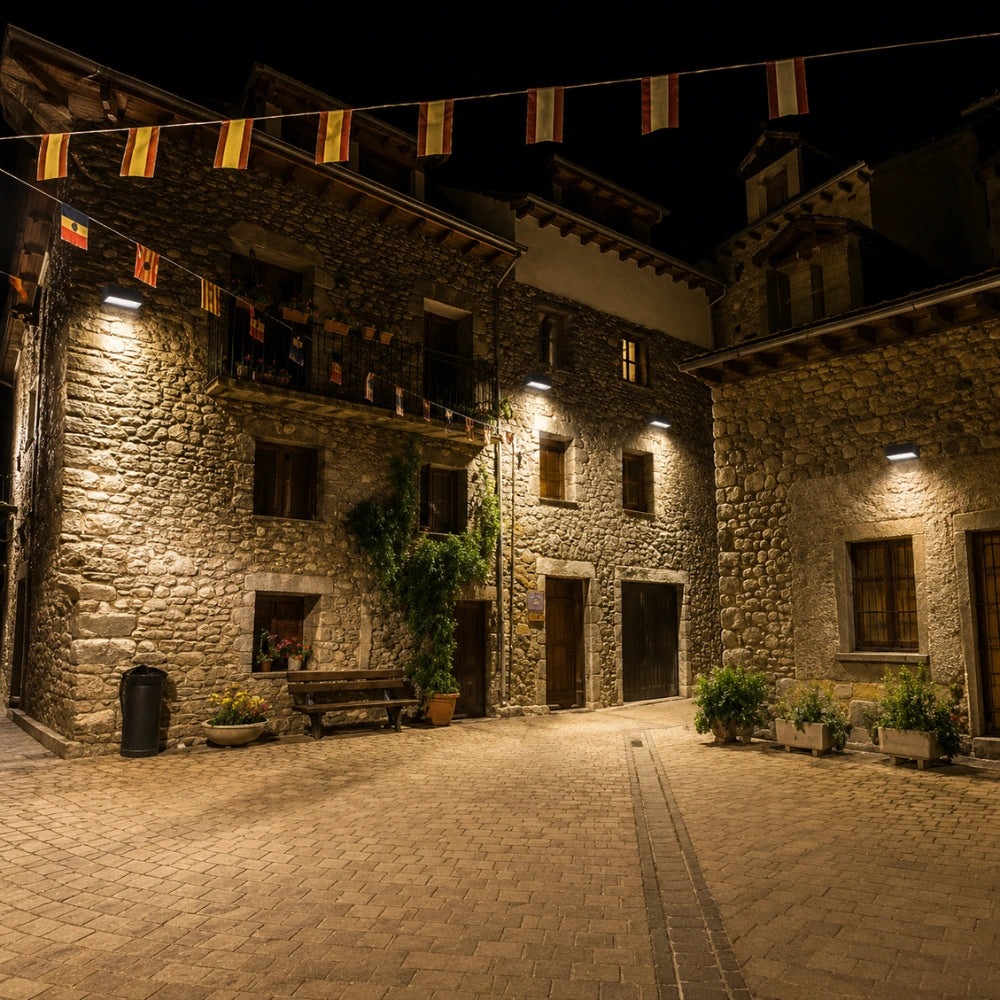

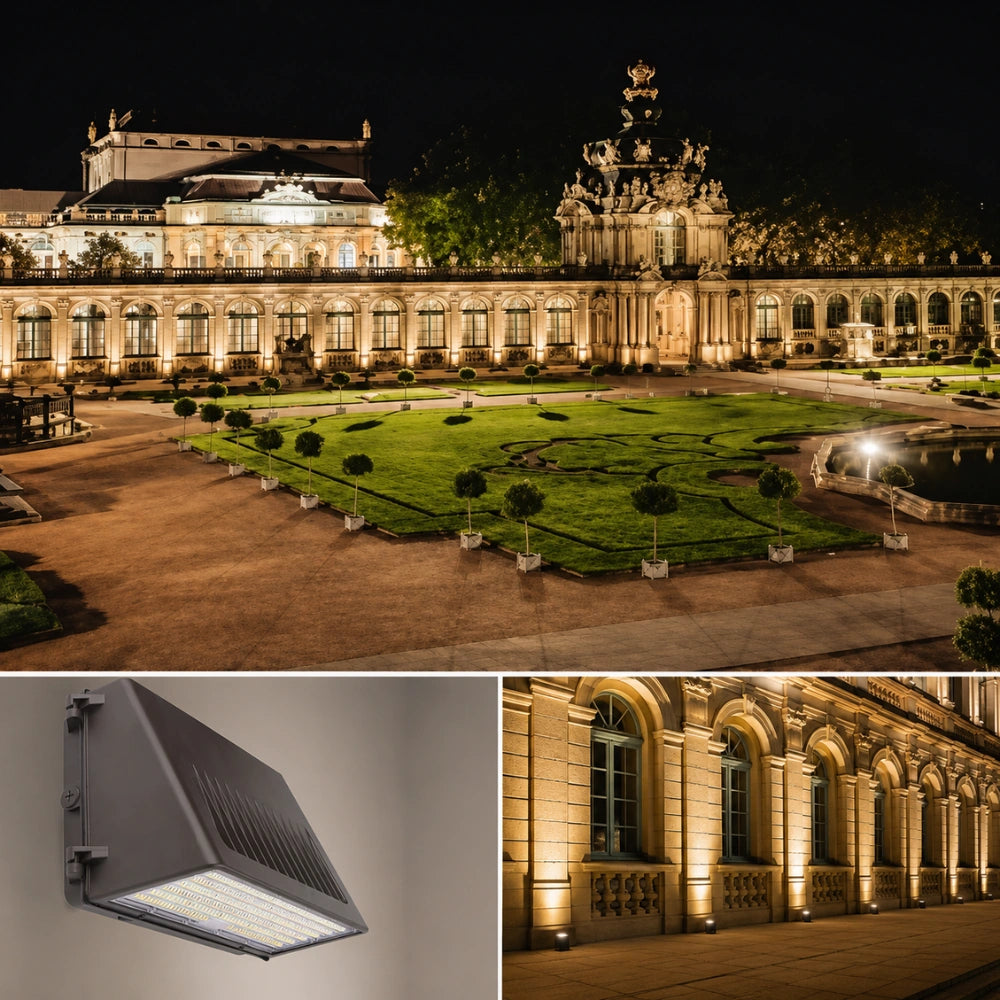

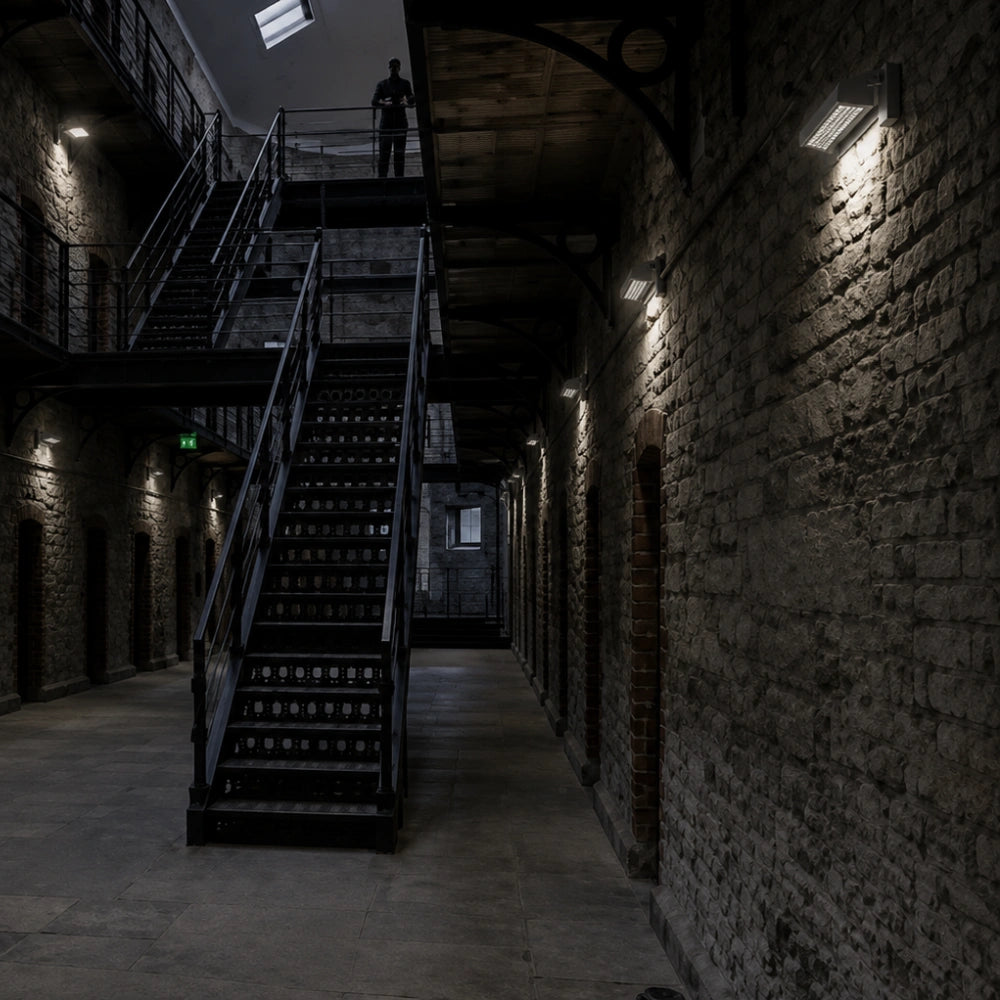

This LED wall pack is well suited for building perimeters, parking areas, entryways, walkways, warehouses, and campuses. Its easy smart-bracket installation and 5-year warranty make it a dependable all-in-one outdoor lighting solution.

Specifications

Cct	3000K/4000K/5000K	Certification	UL (DLC)© Listed
Color	Dark Bronze	Cri	>70
Dimmable	0-10V	Dlc model number	X-WPD(63/45/30)W- (30/40/50)KUV-P
Efficacy	150lm/w	Housing	die-cast aluminum
Ip rating	IP65	Lumens	9,450 Lumens
Voltage	120-277 VAC	Warranty	5 Years
Watt	30W/45W/63W	Diffuser type	PC (polycarbonate)

Downloads

Installation Guide

FAQS

Can I change color temperature and wattage?

Yes! This model has selectable wattage (30W / 45W / 63W) and tunable CCT (3000K / 4000K / 5000K) so you can choose brightness and light tone to match your needs.

What is the expected lifespan of the LED?

LED wall pack lights like this are typically rated for up to ~50,000 hours of use, which means years of reliable operation before replacement is needed.

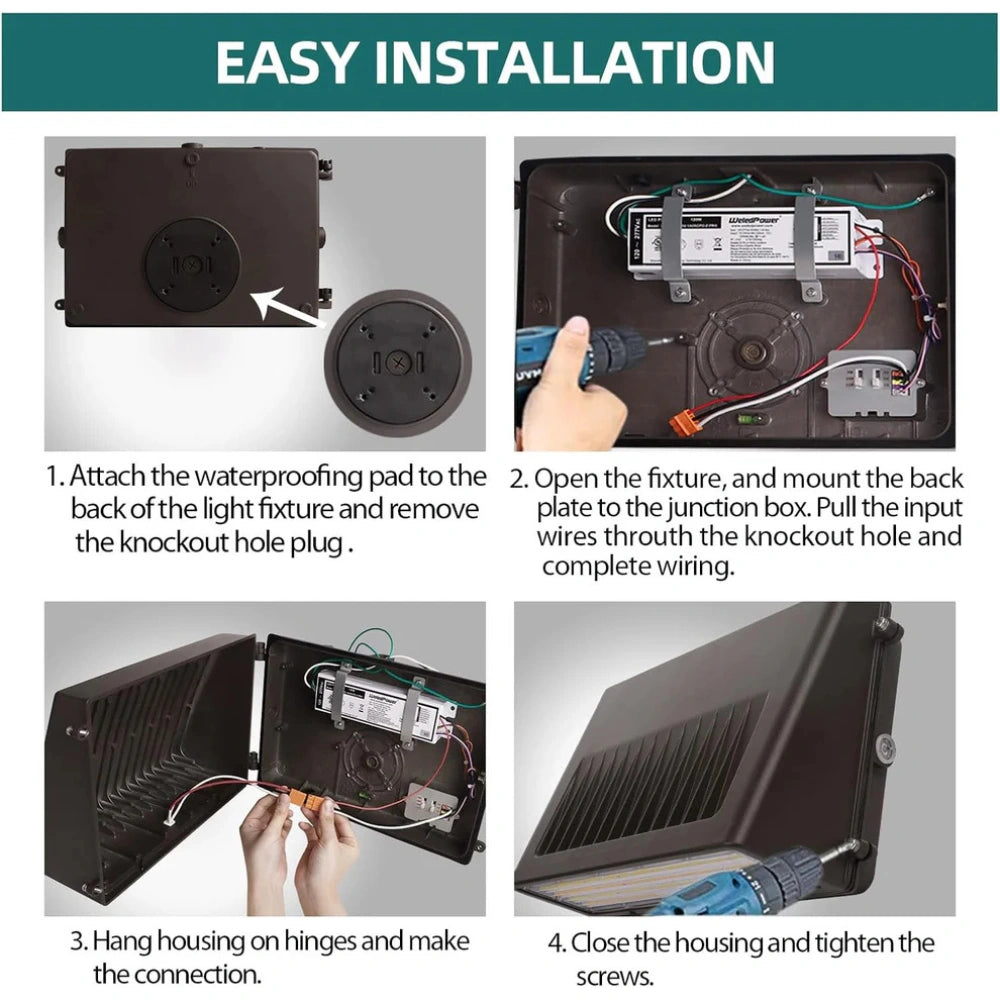

Is installation difficult?

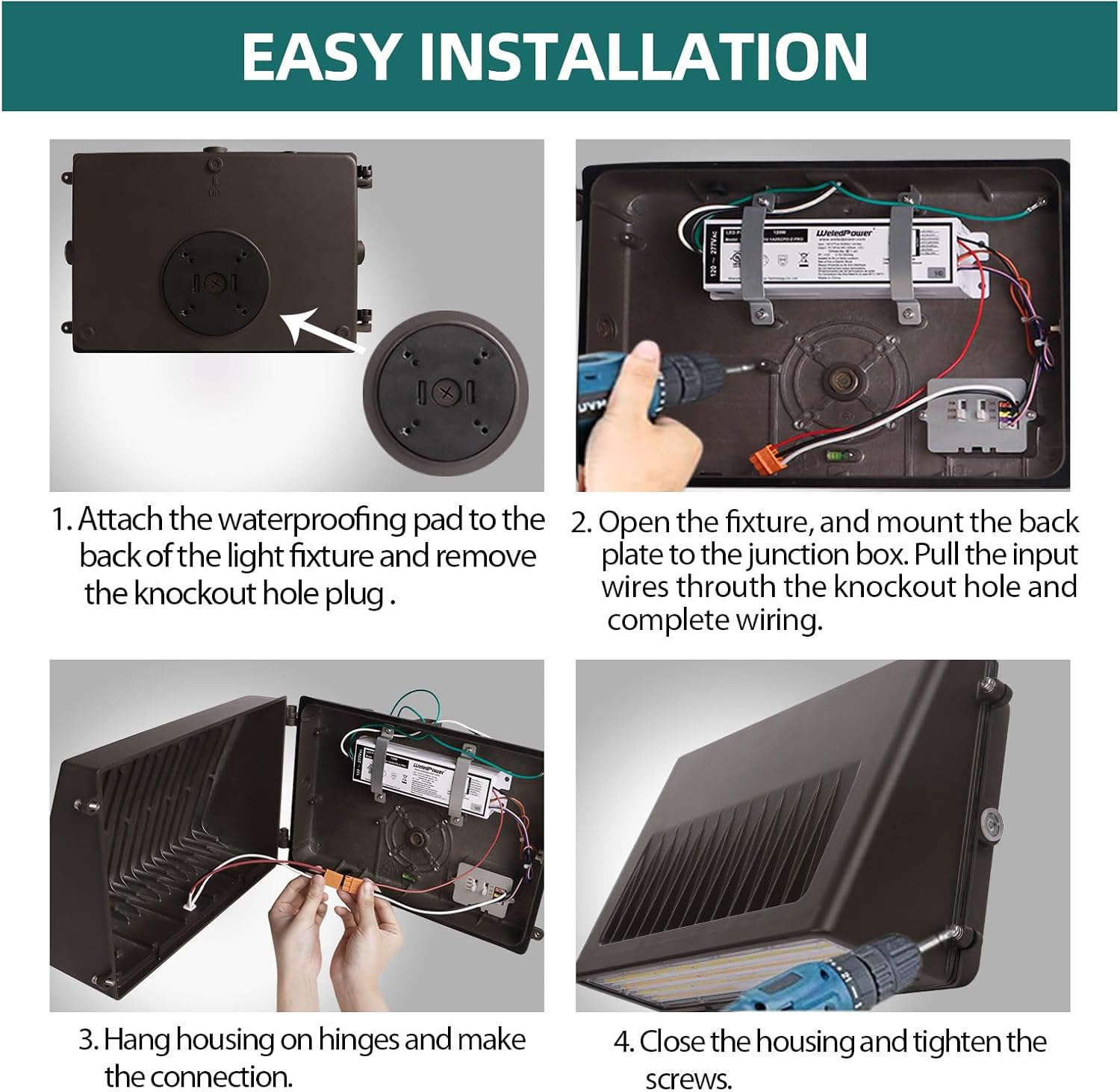

Installation is designed to be straightforward with a smart mounting bracket included — ideal for commercial, industrial, and municipal settings.

Does this fixture work in all weather conditions?

Yes — the light is built with a rugged, weather-resistant housing and is rated for outdoor use, including wet, dusty environments.

Can this light be dimmed or controlled?

Yes — it supports 0-10V dimming, allowing you to integrate it with lighting control systems for further energy savings.

What voltage does it require?

It operates on a wide voltage range (120-277 VAC), making it compatible with standard electrical systems for commercial installations.

Is there a warranty?

Yes — this product comes with a 5-year warranty for peace of mind.

What applications is this wall pack suitable for?

What applications is this wall pack suitable for? Great for building perimeters, walkways, entryways, warehouses, parking lot walls, campuses, or security lighting around commercial and industrial properties.
