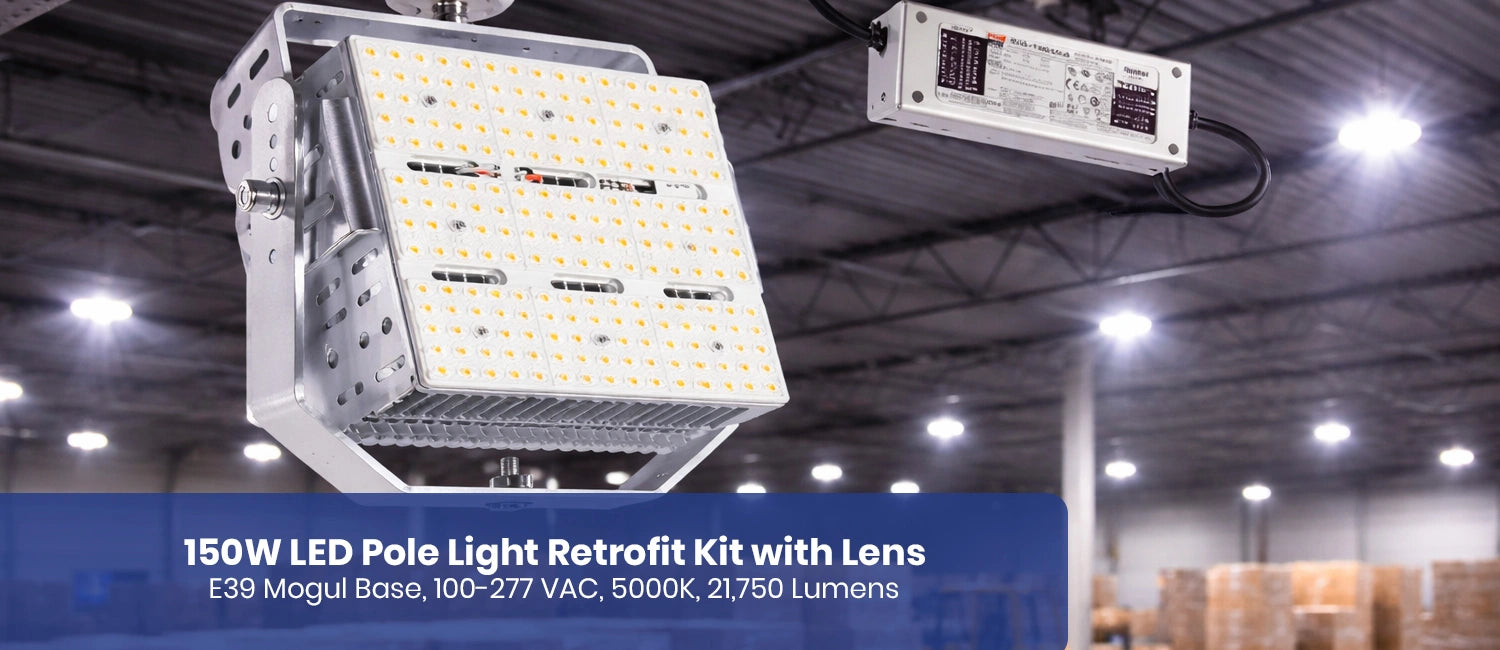

150W LED Pole Light Retrofit Kit with Lens, E39 Mogul Base, 100-277 VAC, 5000K, 21,750 Lumens

150W LED Pole Light Retrofit Kit with Lens, E39 Mogul Base, 100-277 VAC, 5000K, 21,750 Lumens

SKU: SKU:01-RCL-043

34 in stock

free-shipping-icon
free-shipping-icon
free-shipping-icon

Enjoy additional discounts on orders above $500 at Lumens Depot.

Learn More
Regular price $149.00 USD

Regular price Sale price $149.00 USD
Sale Sold out
Shipping calculated at checkout.
View full details
Product A Image Product A Image Product A Image Product A Image Product A Image

Details

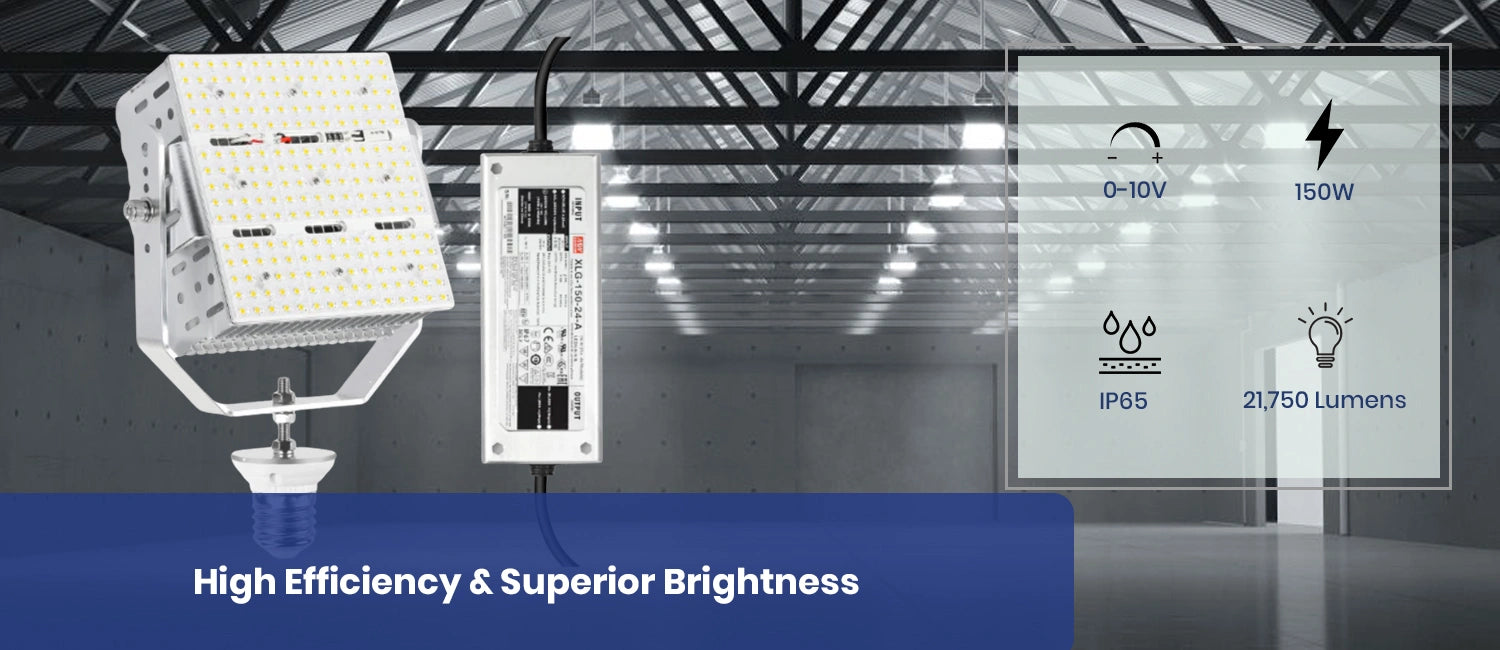

High Efficiency & Bright Illumination
Delivers up to 21,750 lumens at 150W (145 lm/W) for bright, uniform lighting while significantly reducing energy consumption compared with traditional 650W MH/HPS fixtures.

Easy Retrofit Installation
Designed with an E39 Mogul base and ballast-bypass configuration for convenient installation in compatible existing fixtures. The 180° adjustable bracket provides flexible mounting and light positioning.

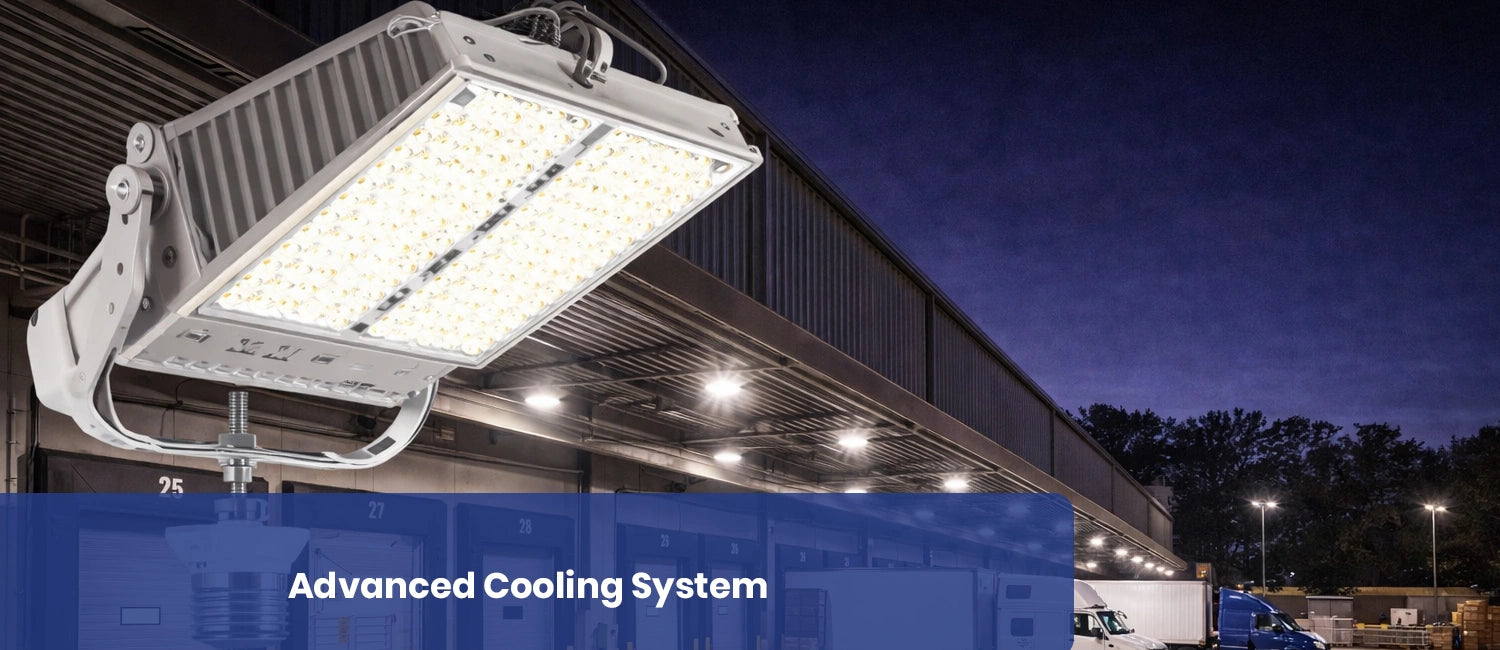

Reliable Thermal Performance
Built with premium SMD 3030 LED chips and an aluminum fin heat sink for efficient heat dissipation. Rated for up to 50,000 hours of reliable service with minimal maintenance.

Wide Voltage & Outdoor Ready

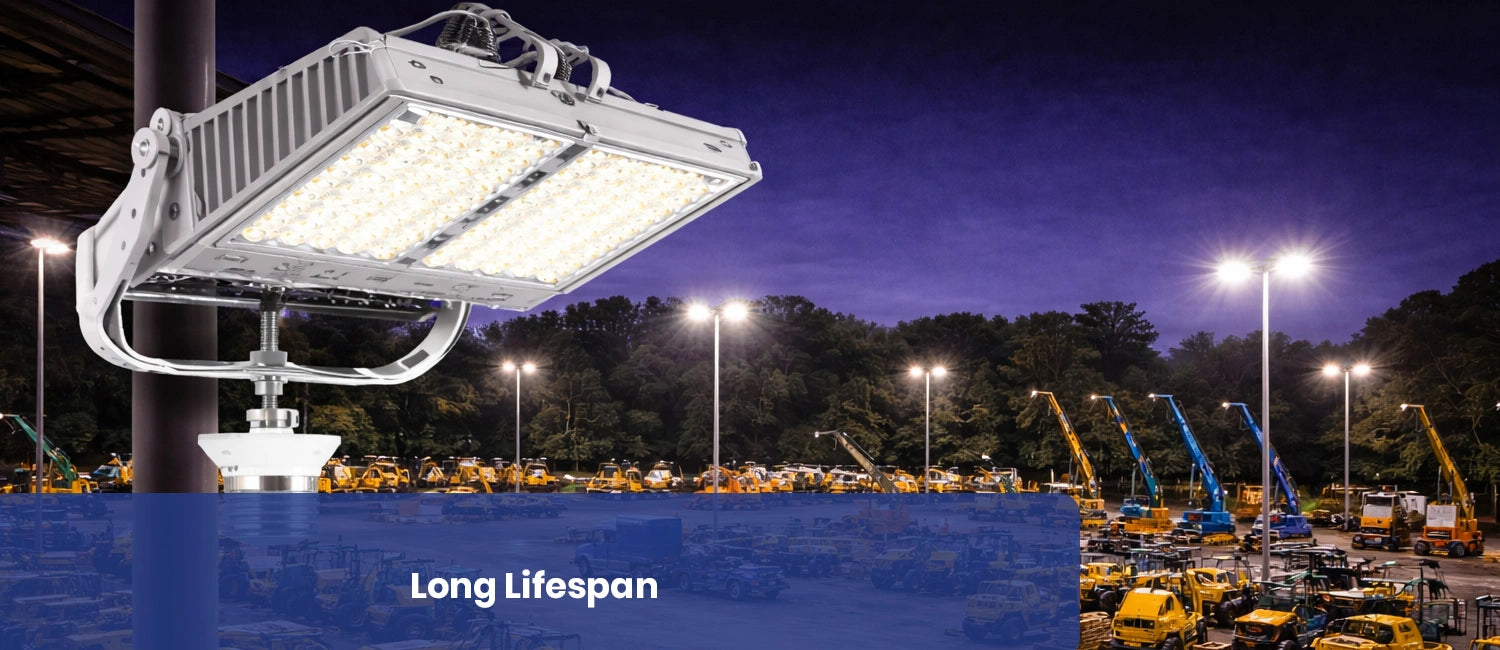

Supports 100–277V operation, making it suitable for a wide range of commercial and outdoor lighting applications. Ideal for parking lots, streets, canopies, gas stations, and security lighting.

ETL & DLC Certified
ETL and DLC certified for dependable safety and energy performance. Its high-efficiency design may also qualify for applicable energy rebate programs.

Ideal for Commercial & Industrial Applications
Perfect for parking lots, street lights, tennis courts, high bays, canopies, gas stations, wall packs, and other large-area lighting applications where powerful and energy-efficient illumination is needed.

Specifications

Beam angle 180 degree Cct 5000K
Certification ETL and DLC Chip type SMD 3030
Cri >80 Dimension 7.28L X 7.01W X 3.03H
Dimmable 0-10V Efficacy ‎145 lm/w
Ip rating IP65 Life hours 50000 Hours
Lumens 21750 Lumens Operating temperature -4°F to 104°F
Power factor ["> 0.90"] Voltage 100-277 VAC
Warranty 5 Years Watt 150 Watt
Frequency 50/60Hz Output voltage DC 12V

FAQS

What does this LED retrofit kit replace?

It can replace up to 650W MH/HPS fixtures, helping significantly reduce energy consumption.

How bright is the 150W retrofit kit?

It produces 21,750 lumens, delivering strong illumination at 145 lumens per watt.

What type of base does it use?

It features an E39 mogul base, designed to fit many existing commercial fixtures.

Does installation require removing the ballast?

Yes. It uses a ballast-bypass design, so the existing ballast must be bypassed during installation.

Can the lighting angle be adjusted?

Yes. The 180° adjustable bracket allows flexible positioning inside compatible fixtures.

What color temperature does it provide?

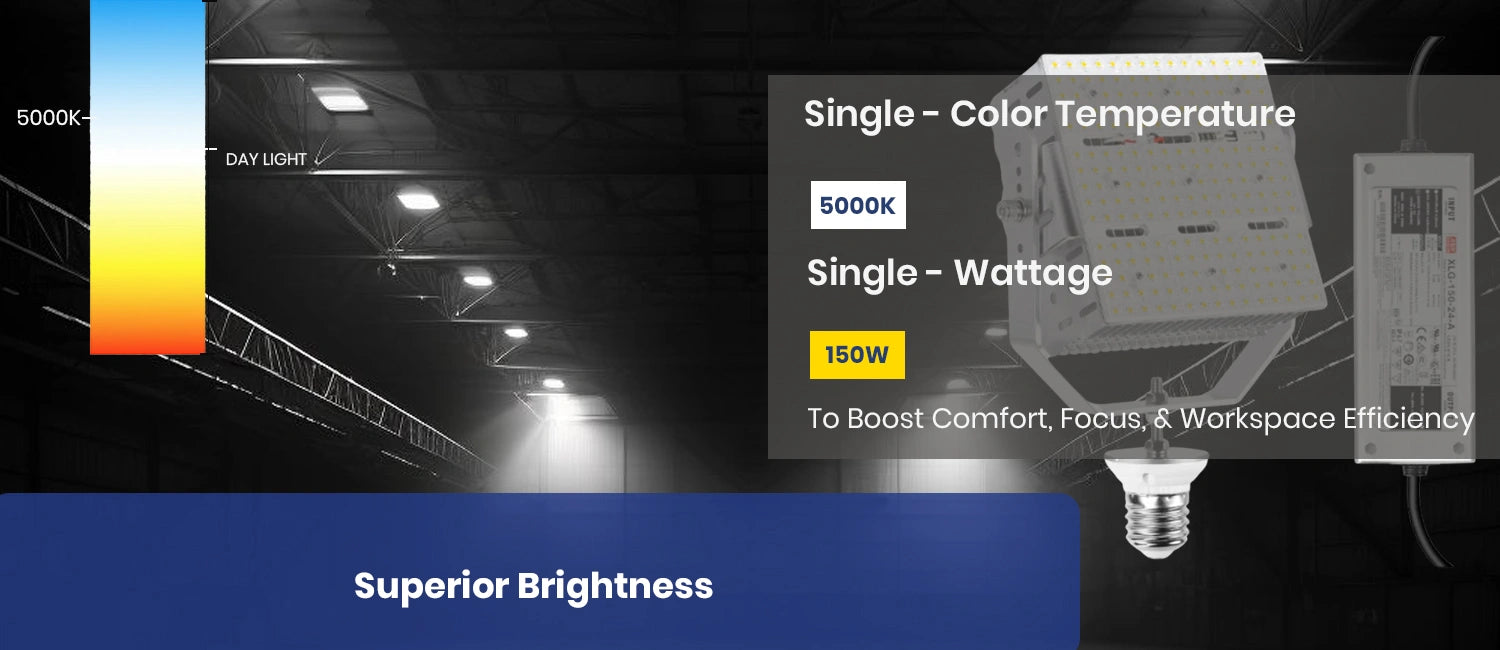

It produces 5000K daylight white with a CRI above 80 for clear visibility.

Is this retrofit kit dimmable?

Yes. It supports 0–10V dimming with a compatible control.

Where can this retrofit kit be used?

It is ideal for parking lots, street lights, tennis courts, high bays, canopies, and wall packs.

What voltage range does it support?

It operates on 100–277 VAC, suitable for many commercial electrical systems.

What is its expected lifespan?

It is rated for approximately 50,000 hours and includes a 5-year warranty.
