240W LED Pole Light Retrofit Kit with Lens, E39 Mogul Base, 100-277 VAC, 5000K, 34,800 Lumens

Name: 240W LED Pole Light Retrofit Kit with Lens, E39 Mogul Base, 100-277 VAC, 5000K, 34,800 Lumens
Brand: Lumens Depot
SKU: 01-RCL-045
Price: 190.00 USD
Availability: InStock

SKU: SKU:01-RCL-045

98 in stock

Enjoy additional discounts on orders above $500 at Lumens Depot.

Learn More

$190.00 USD

~~$210.00 USD~~ $190.00 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

Packs Pack of 1 Pack of 4

View full details

Details

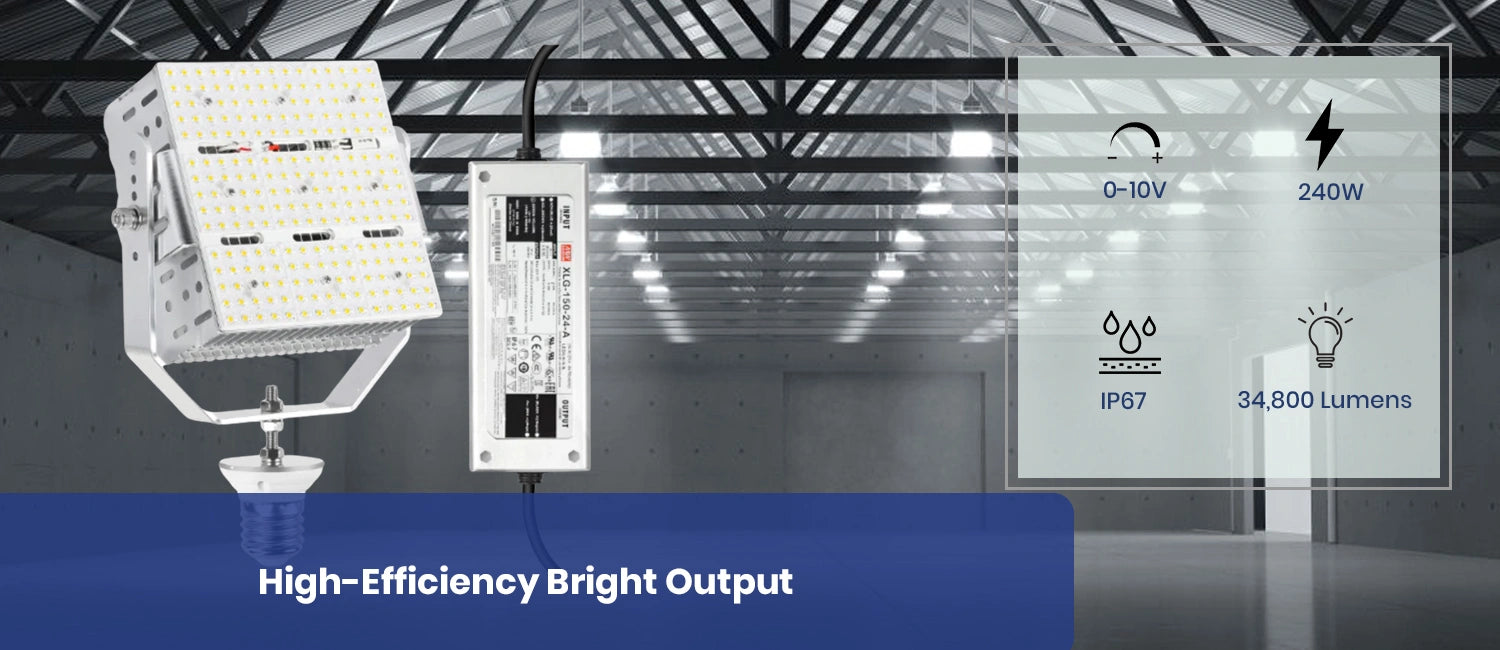

High-Efficiency Bright Output
Delivers 34,800 lumens at 145 lm/W using advanced SMD LEDs, producing crisp 5000K daylight illumination. Designed to replace 650W MH/HPS fixtures while providing wide, uniform coverage with a 120° beam angle.

Energy Savings & Performance
Consumes only 240W while replacing up to 1000W traditional lighting. Cuts energy usage by up to 90%, lowers annual operating costs, and maintains consistent performance over a 50,000-hour rated lifespan.

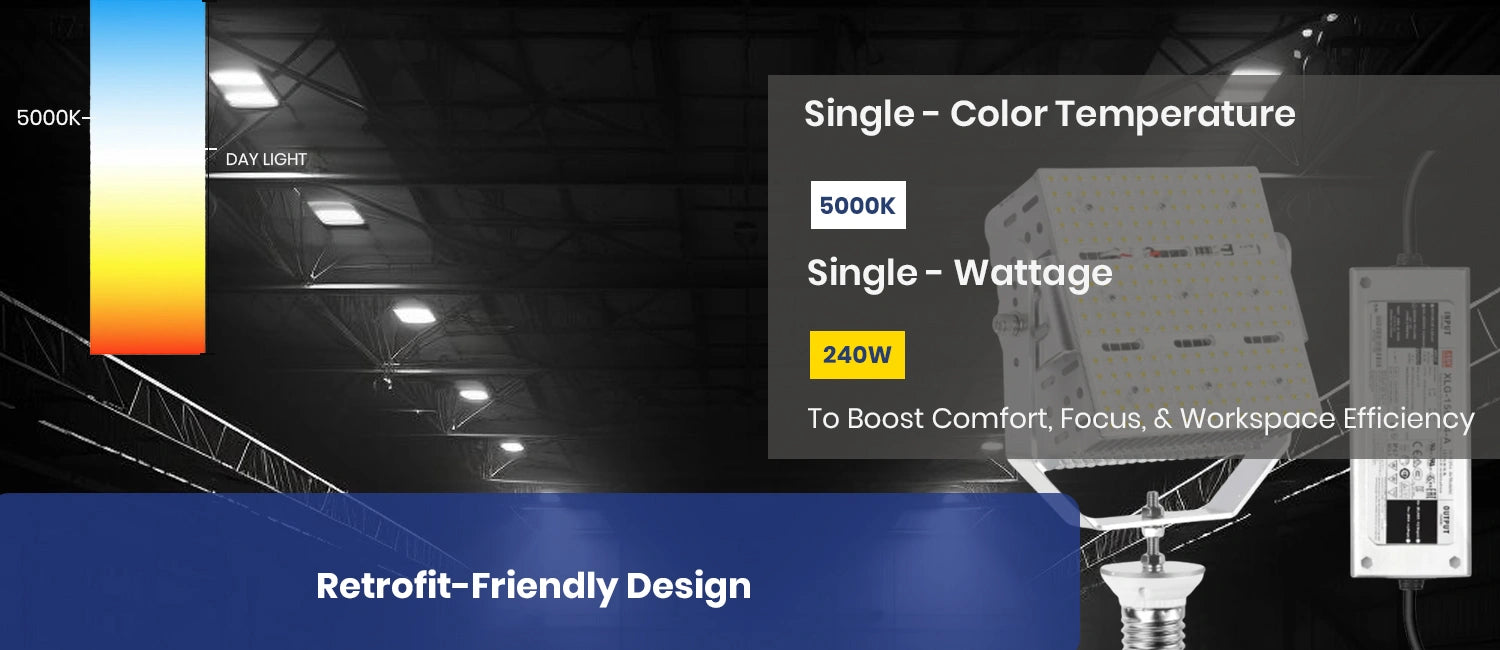

Retrofit-Friendly Design
Features an E39 mogul base with ballast bypass for simple retrofit installation. Separate power supply and light source make future repairs easier. Includes a 180° adjustable bracket for horizontal or vertical mounting.

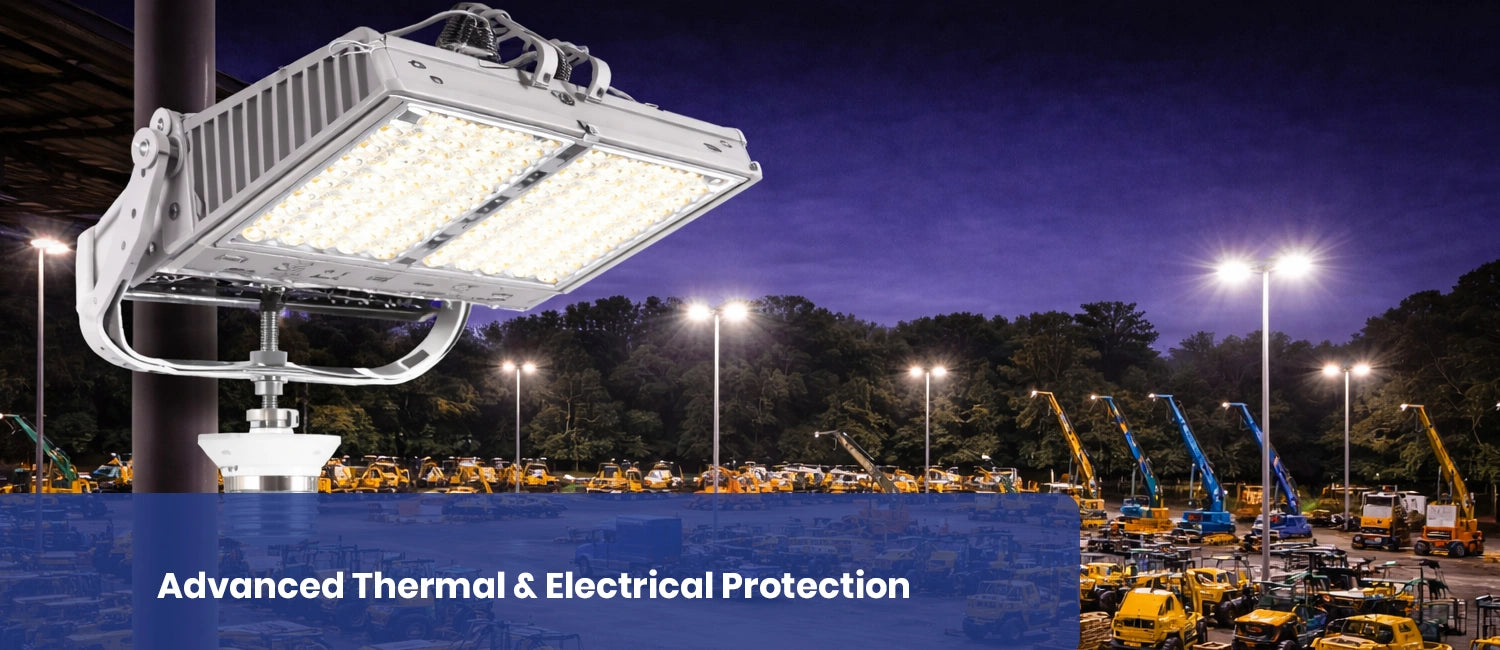

Advanced Thermal & Electrical Protection
Built with a large aluminum heat sink and high-speed cooling fan for effective heat dissipation. Equipped with a MEANWELL IP67 driver and 6KV surge protection for stable, long-term outdoor operation.

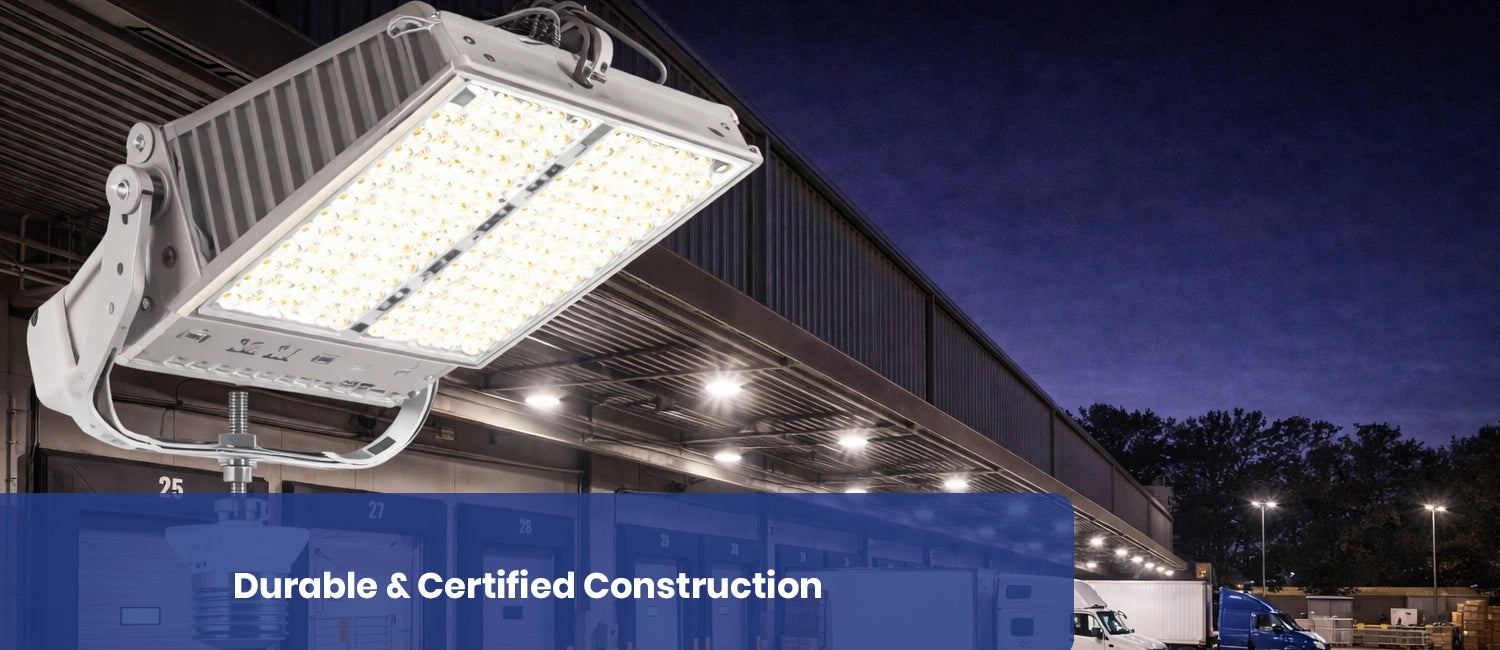

Durable & Certified Construction
ETL and DLC certified for safety, efficiency, and rebate eligibility. Engineered for reliable use with 100–277V input voltage, delivering dependable performance in demanding commercial and industrial environments.

Wide Application Versatility
Ideal for parking lots, streetlights, tennis courts, high bays, gas stations, canopies, wall packs, and shoebox pole fixtures, offering a cost-effective and powerful lighting upgrade across multiple outdoor settings.

Specifications

Beam angle	180 degree	Cct	5000K
Certification	ETL and DLC	Chip type	SMD 3030
Cri	>80	Dimension	7.87L X 7.01W X 3.74H
Dimmable	0-10V	Efficacy	‎145 lm/w
Ip rating	IP65	Life hours	50000 Hours
Lumens	34800 Lumens	Operating temperature	-4°F to 104°F
Power factor	["> 0.90"]	Voltage	100-277 VAC
Warranty	5 Years	Watt	240 Watt
Frequency	50/60Hz	Output voltage	DC 12V

Downloads

Installation Guide

FAQS

How bright is this 240W LED Retrofit Kit?

It delivers 34,800 lumens, providing powerful illumination for large commercial outdoor areas.

What type of base does it use?

It features an E39 mogul base, making it compatible with many existing commercial fixtures.

Can it replace traditional HID lamps?

Yes. It is designed as an energy-efficient replacement for many high-wattage metal halide and HPS lamps.

Does the existing ballast need to be bypassed?

Yes. This is a ballast-bypass retrofit, so the existing ballast must be removed or bypassed during installation.

What color temperature does it provide?

It produces 5000K daylight white, providing crisp visibility for large outdoor spaces.

Can the light direction be adjusted?

Yes. Its adjustable design allows better positioning of the LED light inside compatible fixtures.

Where can this retrofit kit be used?

It is ideal for pole lights, parking lots, street lights, high bays, canopies, and large area fixtures.

What voltage range does it support?

It operates on 100–277 VAC, suitable for many commercial electrical systems.

Why retrofit instead of replacing the entire fixture?

A retrofit kit allows you to reuse compatible existing fixture housing while upgrading to energy-efficient LED technology.

Does it provide instant full brightness?

Yes. Unlike traditional HID lamps, the LED provides immediate illumination without a warm-up period.
