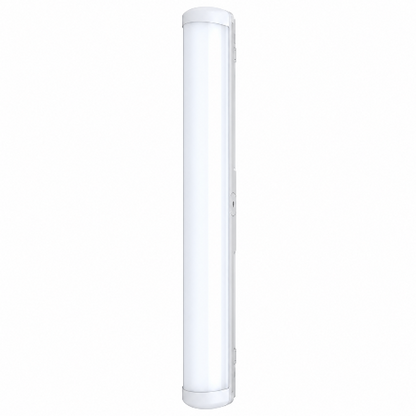

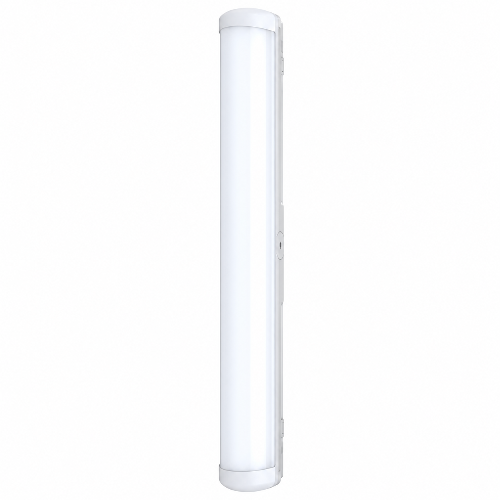

4FT LED Wide Wraparound Fixture with Lumen Switching

SKU: SKU:09-WAF-002

100 in stock

Enjoy additional discounts on orders above $500 at Lumens Depot.

Learn More

$288.89 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

Quantity Pack of 4

View full details

Product Description
Product Specification
FAQ

Details

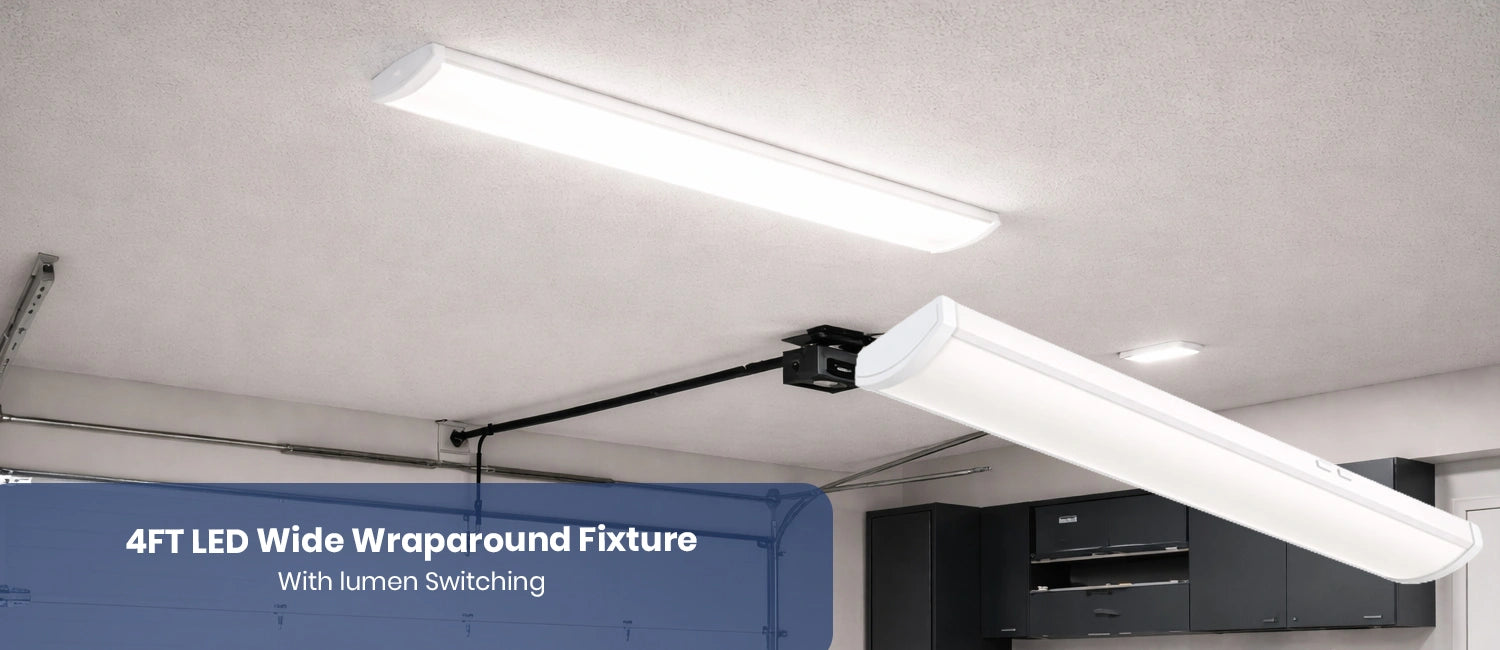

Versatile 4FT LED Wide Wraparound Fixture
Designed for both renovations and new construction, this 4FT LED Wide Wraparound Fixture offers flexible, high-performance lighting. Its wider housing neatly covers marks left by older fixtures, delivering a clean and modern finished appearance.

Adjustable Lumen Switching
Easily select between three brightness levels to suit your space: 4000 lumens (Low), 5000 lumens (Medium), and 6000 lumens (High). Compatible with 120–277V, it provides adaptable performance for commercial and residential applications.

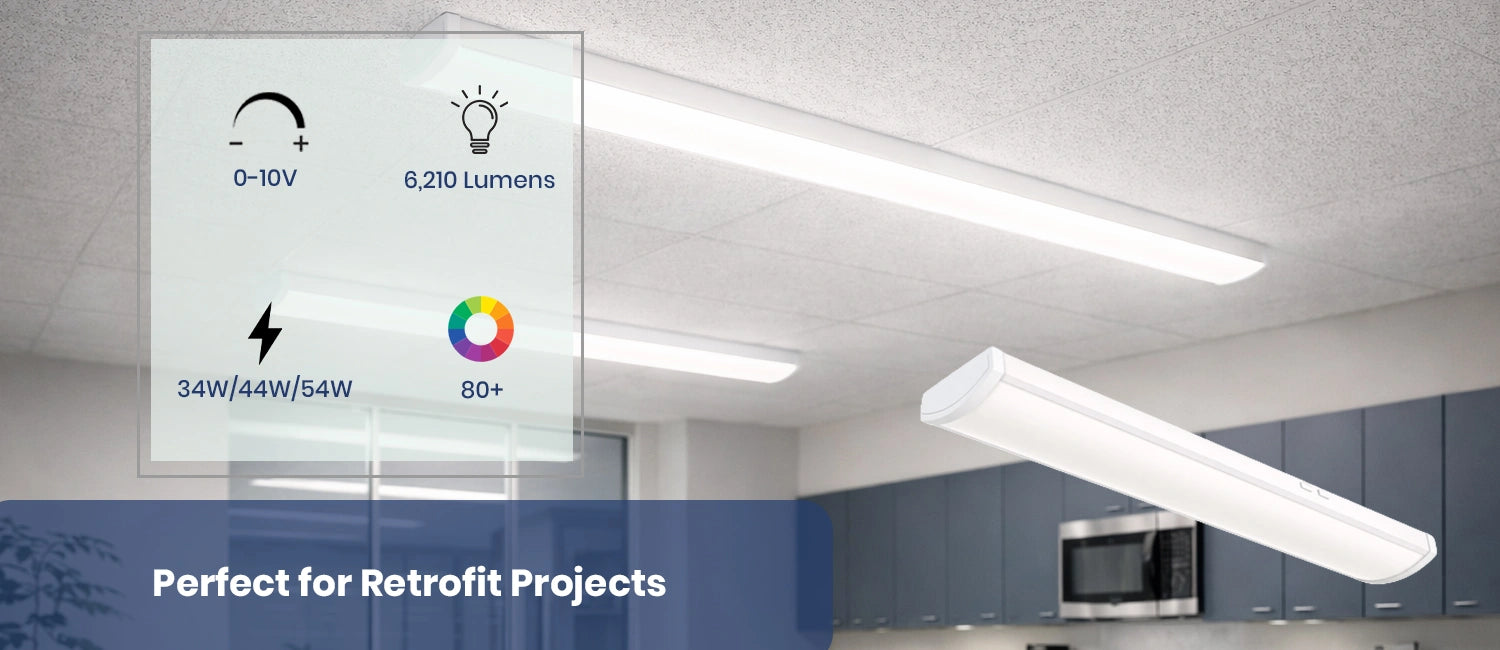

Ideal for Retrofit Projects
This fixture is a direct replacement for 2, 3, or 4-lamp T8 and T12 fluorescent wraps. Its wide design simplifies upgrades by concealing previous mounting footprints for a seamless installation.

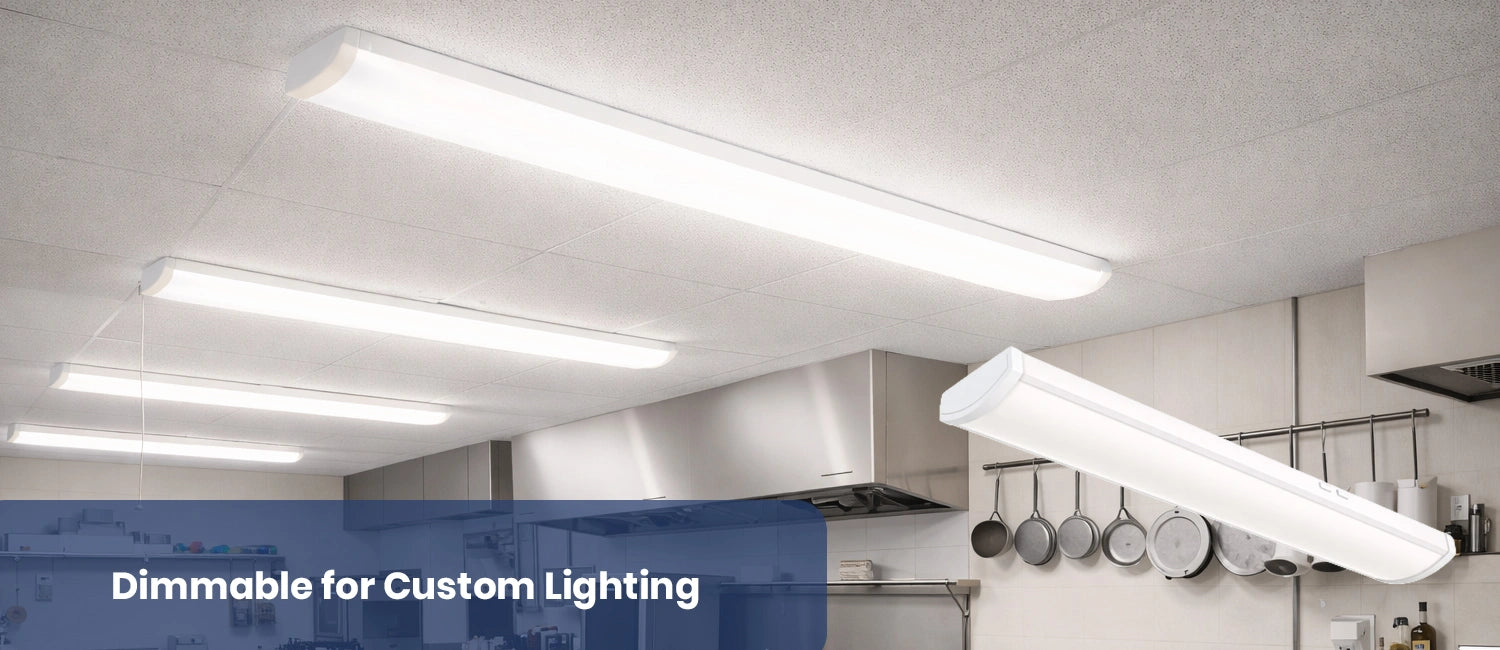

Smooth & Dimmable Light Control
Dimmable down to 10%, the fixture allows precise adjustment of lighting levels. It supports bright task lighting or softer ambient illumination depending on the needs of the environment.

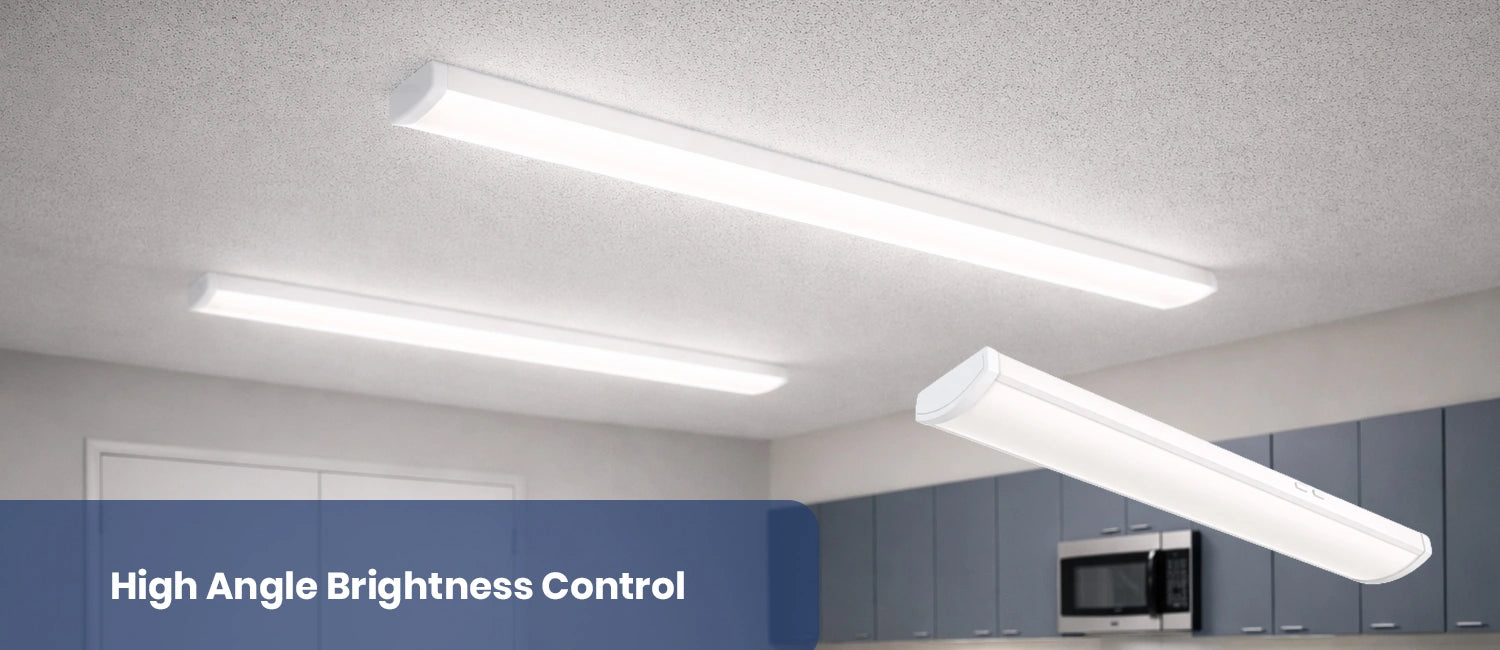

Uniform & Comfortable Illumination
A thermal-formed diffuser ensures even light distribution while minimizing glare. It delivers controlled high-angle brightness for a comfortable and visually balanced lighting experience.

Long Lifespan & Broad Applications
With a 60,000-hour lifespan, this maintenance-free LED wrap provides over 20 years of reliable performance at typical daily use. Ideal for offices, schools, hallways, retail spaces, and warehouses.

Specifications

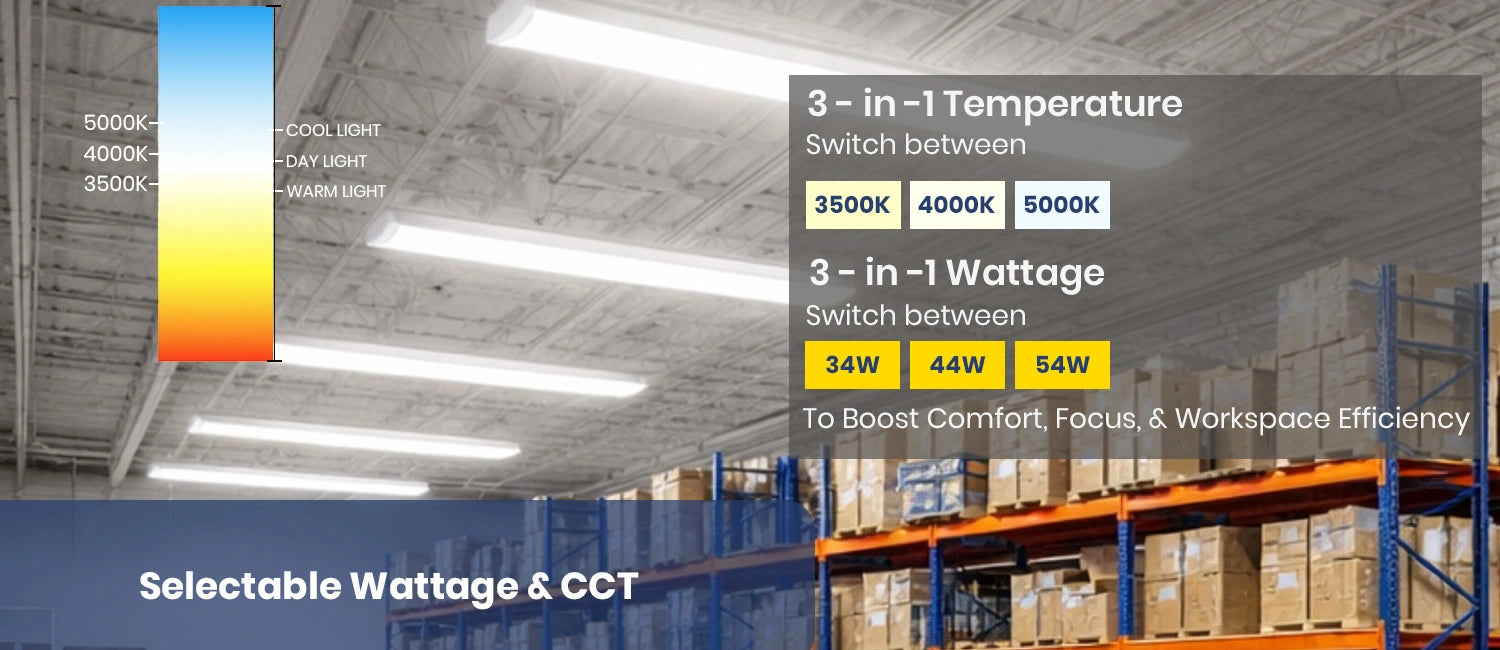

Cct	35/40/50K	Certification	UL/DLC
Color	White	Cri	80+
Dimming	0-10V	Life hours	60000 hours
Lumens	4114/5192/6210LM	Size	4 ft
Voltage	120-277 VAC	Warranty	5 years
Damp wet rating	Damp Rated	Light source type	LED
Power source	Hardwired	Special feature	LED Integrated
Wattage	34/44/54W

Downloads

Installation Guide

FAQS

What does “lumen switching” mean on this fixture?

Lumen switching allows you to adjust the brightness output without replacing the fixture.

Why is lumen switching useful in real applications?

It helps customize lighting for different room sizes, ceiling heights, and visibility needs.

How is a wide wraparound fixture different from standard wraparound lights?

The wider design helps provide broader and more even light distribution.

Can this fixture reduce the need for multiple lighting models?

Yes, adjustable lumen output makes one fixture suitable for multiple applications.

What type of spaces is this fixture best suited for?

It works well in schools, offices, hallways, garages, utility rooms, and commercial areas.

Will higher lumen settings make the space noticeably brighter?

Yes, increasing lumen output improves overall visibility and coverage.

Is this fixture suitable for retrofit projects?

Yes, it’s commonly used to replace traditional fluorescent wraparound fixtures.

Does the wide design help reduce dark spots?

Yes, the fixture is designed to create more uniform room illumination.

Can this fixture support long daily operating hours?

Yes, LED wraparound fixtures are built for continuous and reliable operation.

What is the biggest advantage of this wide wraparound fixture?

It combines adjustable brightness, wide light coverage, and energy-efficient LED performance.
