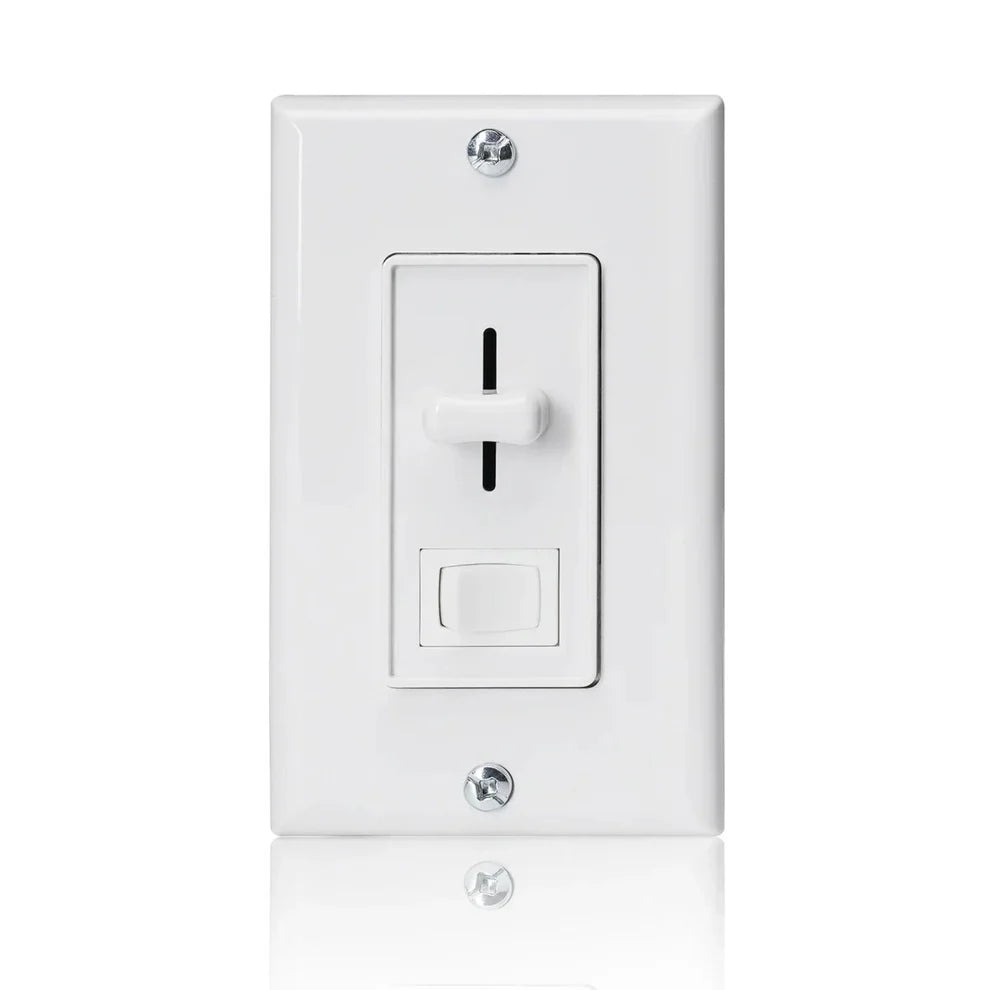

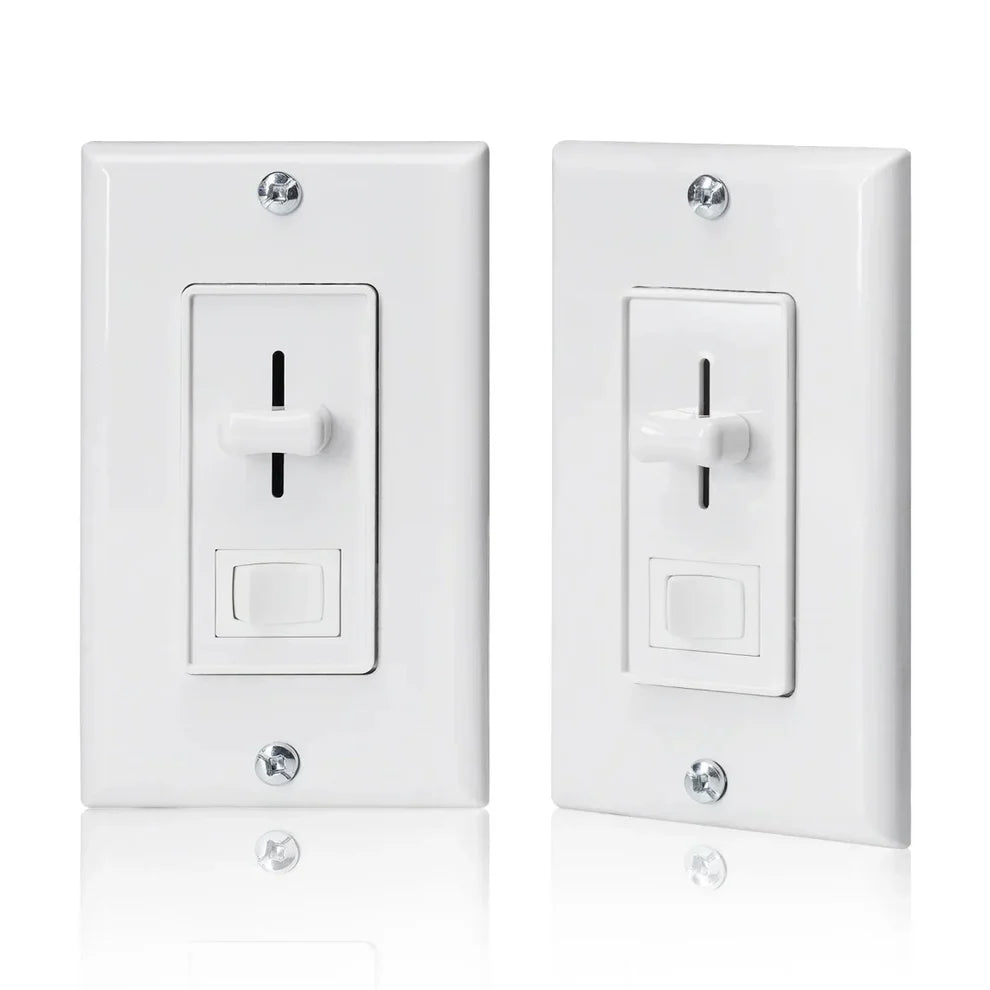

ELV Slide Dimmer Light Switch Pack Wall Plate Included UL Listed

ELV Slide Dimmer Light Switch – Single Pole / 3-Way, Wall Plate Included, UL Listed

The ELV Slide Dimmer Light Switch delivers smooth, precise lighting control for modern LED and electronic low-voltage lighting systems. Designed with advanced reverse phase (trailing-edge) dimming technology, it ensures stable performance while reducing flicker and buzzing commonly found in standard dimmers.

Featuring a large slide control for precise brightness adjustment and an integrated rocker switch for quick on/off operation, this dimmer makes it easy to set the perfect lighting level for any environment. Compatible with both 120V residential and 277V commercial electrical systems, it supports a wide range of lighting applications. The included wall plate provides a clean and professional finish after installation.

This dimmer is also designed for easy installation without a neutral wire, making it ideal for older homes or locations where neutral wiring is not available. With support for single-pole and 3-way configurations, it allows lighting to be controlled from one or two locations, such as staircases, hallways, or large rooms.

Key Features

Smooth & Precise Dimming

• Advanced ELV (Electronic Low Voltage) reverse phase dimming technology.

• Provides gradual brightness adjustment with minimal flicker.

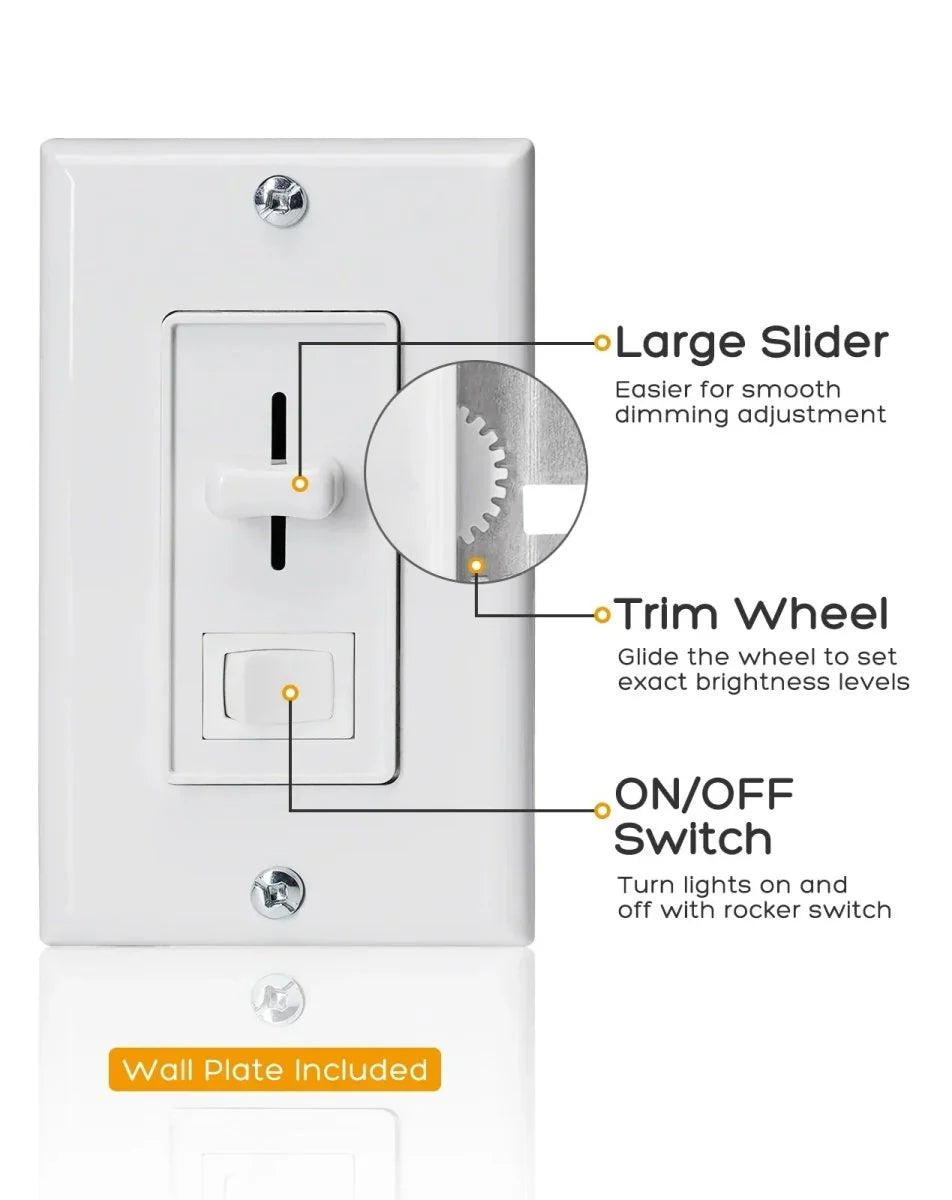

• Large slide control allows accurate lighting level selection.

Convenient Control Design

• Integrated rocker switch for easy on/off operation.

• Slide dimmer enables quick brightness adjustments.

• Wall plate included for a clean and professional appearance.

Wide Compatibility

• Supports up to 250W dimmable LED or CFL lighting.

• Supports up to 300W incandescent lighting.

• Works with AC120V and 277V, 60Hz systems for residential and commercial use.

• Compatible with Shine Decor lighting products including Lum Neon, Eco Neon, COB Neon, COB Strip, ProSelect Strip, and ProSelect Neon.

Flexible Installation Options

• Supports single-pole and 3-way wiring configurations.

• Perfect for controlling lighting from one location or two locations.

• No neutral wire required, simplifying installation in older homes.

Quiet & Reliable Operation

• Trailing-edge dimming technology helps reduce buzzing noise.

• Provides smooth and stable lighting transitions.

Technical Details

The dimmer operates on AC120V or 277V at 60Hz and uses a terminal cap wiring type for secure installation. It supports up to 300W for incandescent lighting and 250W for LED or CFL fixtures. The switch is designed to function in operating temperatures between 23°F and 104°F and is UL Listed, ensuring compliance with safety standards.

Each dimmer switch supports a maximum lighting run length of 65.6 feet. Exceeding this recommended length may cause the dimmer to overheat or become damaged.

Applications

• Residential LED lighting control

• Commercial lighting systems

• LED neon and strip lighting installations

• Staircases, hallways, and multi-location lighting control

• Architectural and accent lighting

Conclusion

The ELV Slide Dimmer Light Switch (UL Listed) provides reliable, smooth dimming performance with flexible installation options. With wide compatibility, quiet operation, and an easy-to-use slide control design, it offers an efficient and professional solution for managing LED and low-voltage lighting in both residential and commercial environments.

No specifications available for this product.
