LED Canopy Light, 180W, 5700K, 28,080 Lumens, 120-277 VAC

SKU: SKU:6-CL-069

98 in stock

Enjoy additional discounts on orders above $500 at Lumens Depot.

Learn More

$275.57 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

View full details

Details

Product Overview

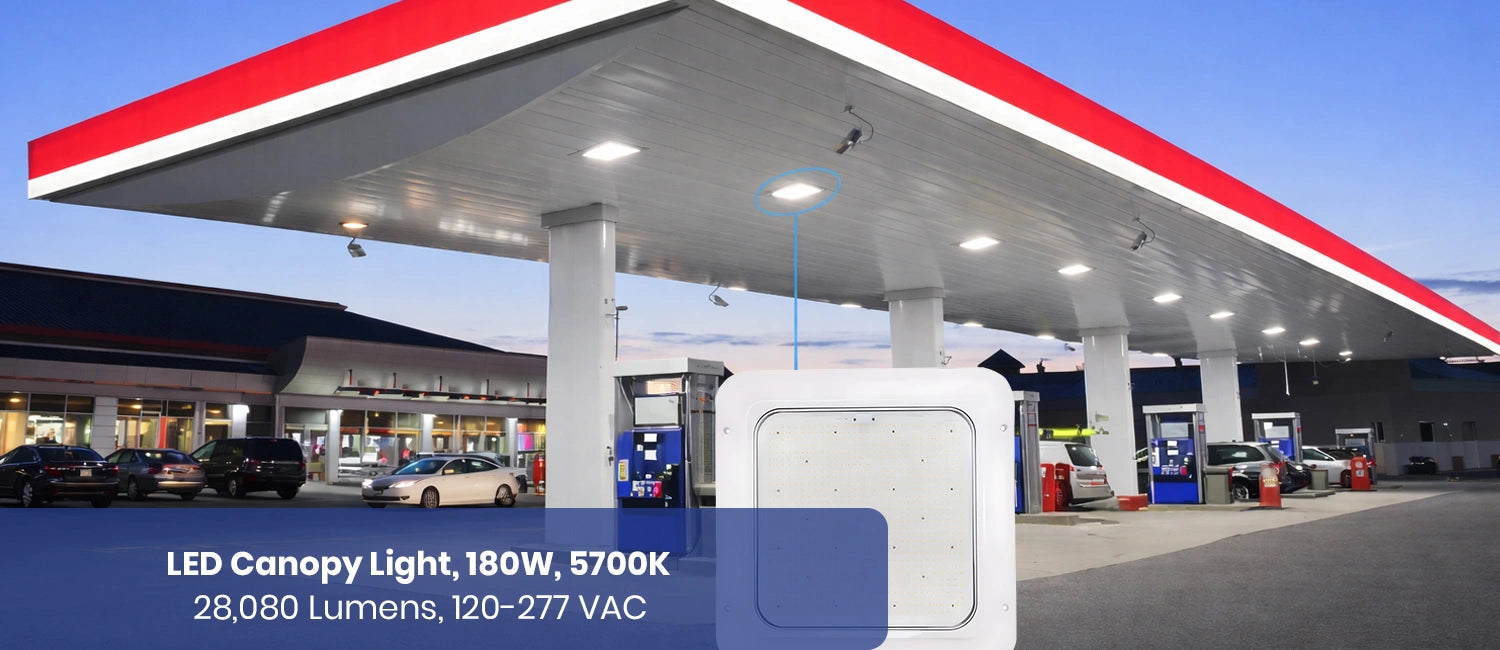

The Lumens Depot 2nd Gen 180W LED Canopy Light delivers powerful illumination with 28,080 lumens and a crisp 5700K daylight output. Designed for commercial and industrial use, it provides bright, even lighting while reducing energy consumption and operating costs.

Brightness & Efficiency

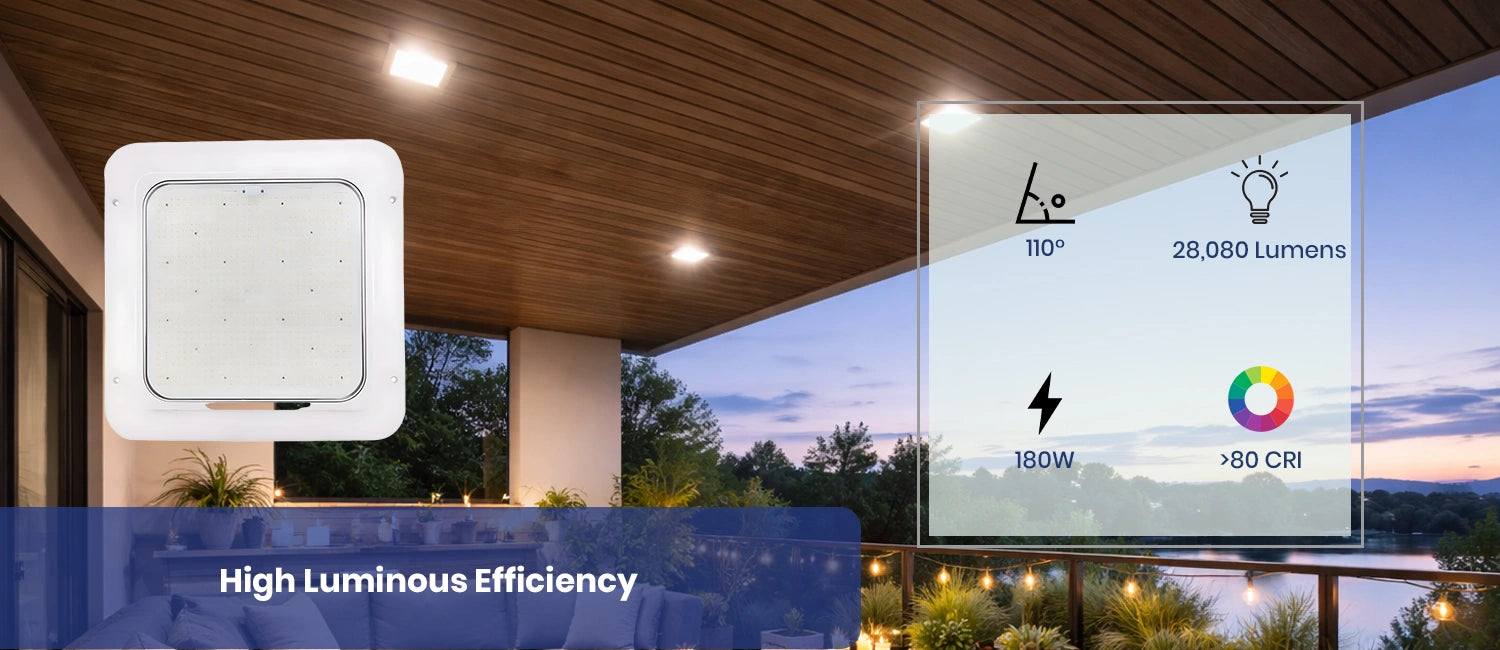

This fixture operates at 180W with up to 156 lumens per watt, offering high output with excellent energy savings. The strong lumen performance makes it ideal for large areas requiring reliable visibility and consistent light coverage.

Light Quality & Beam Coverage

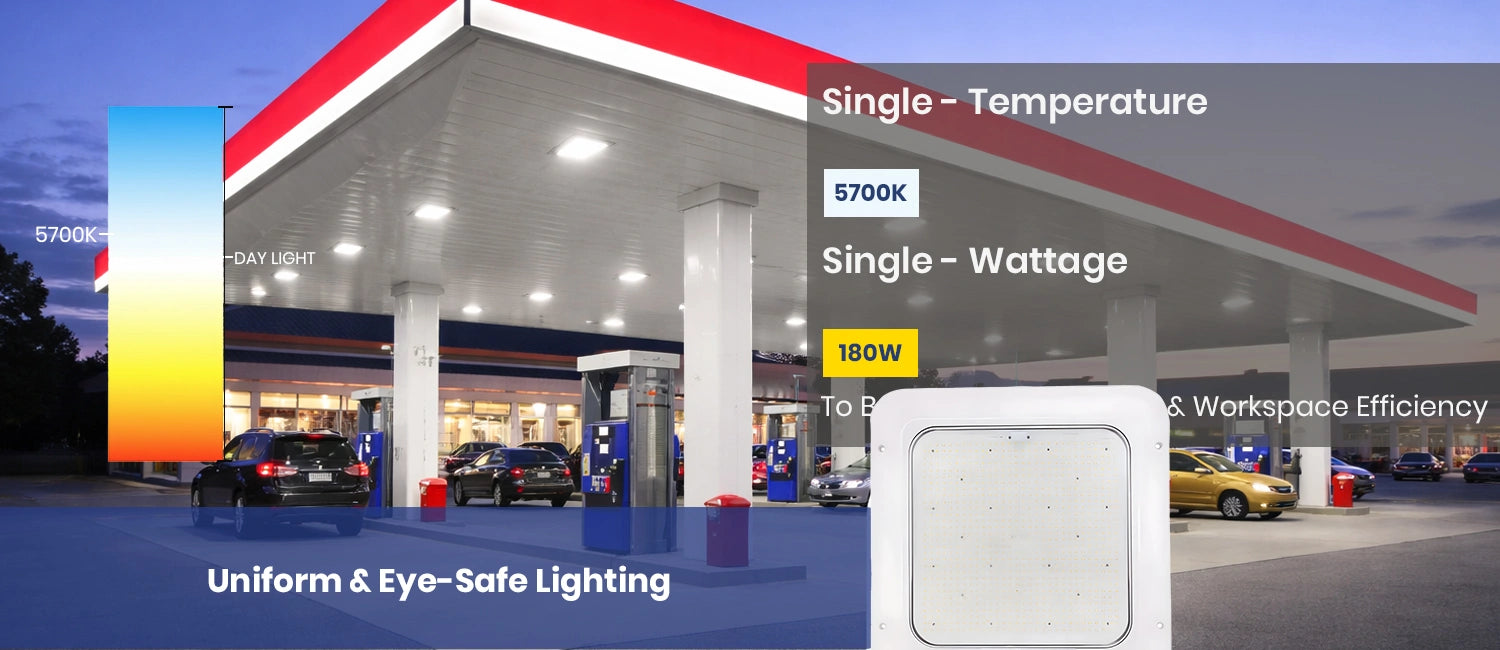

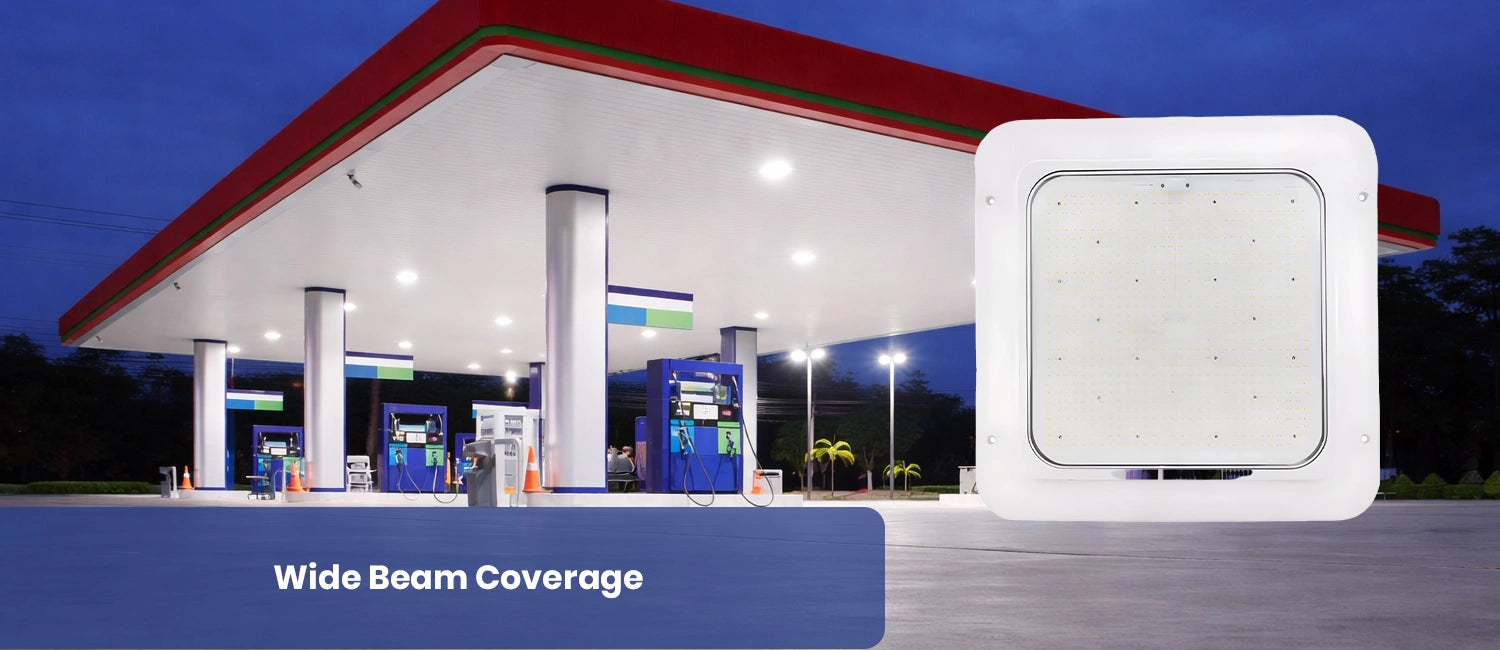

A matte lens produces uniform, soft, glare-free illumination with no UV or IR emissions. The wide 110° beam angle ensures broad coverage, improving safety and reducing dark spots in canopies, garages, and commercial entry areas.

Durability & Weather Protection
Built with a die-cast aluminum white housing for long-term durability and efficient heat dissipation. Its IP65 waterproof and dustproof design protects the fixture in harsh outdoor conditions, making it suitable for indoor and outdoor installations.

Installation, Voltage & Certifications

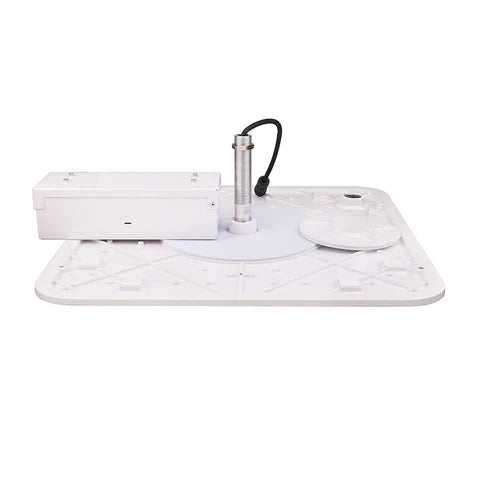

Includes a J-box for secure and easy installation. It supports universal input voltage (120–277 VAC), fitting many electrical systems. UL and DLC listings confirm quality, safety compliance, and potential rebate eligibility.

Applications & Warranty
Perfect for gas stations, parking garages, warehouses, walkways, retail spaces, and loading docks. It improves security and visibility with high CRI (>80) for better color clarity. Backed by a 5-year warranty for dependable performance.

Specifications

Beam angle	110° Degree	Cct	5700K
Certification	ETL and DLC©	Chip type	SMD2835
Color	White	Cri	>80
Dimension	20.47"L x 20.47"W x 9.65"H	Dimmable	0-10V
Efficacy	156 Lm/W	Frequency	50/60Hz
Housing	Die cast Aluminum white housing	Ip rating	IP65
Life hours	50,000 Hours	Lumens	28,080 Lumens
Operating temperature	-40°F to 113°F	Power factor	[">0.9"]
Voltage	120-277 VAC	Warranty	5 years
Watt	180W	Diffuser	Matte lens
Thd	≤20%	Working humidity	20% - 90% RH

Downloads

Installation Guide

FAQS

What makes this 180W canopy light suitable for high-mount installations?

Its 28,080-lumen output delivers powerful illumination even when installed at greater mounting heights.

Why is 5700K a popular choice for commercial lighting?

The 5700K daylight color improves visibility, contrast, and security during nighttime operation.

Is this fixture designed for heavy-duty commercial applications?

Yes, it is engineered for demanding environments that require consistent, high-output lighting.

What types of facilities benefit from this canopy light?

It is ideal for distribution centers, truck terminals, parking decks, fueling stations, and industrial entrances.

Does this light provide consistent brightness across large areas?

Yes, its optical design helps deliver wide, uniform light coverage with minimal dark spots.

Can this fixture help improve nighttime security?

Yes, its high-output daylight illumination enhances visibility for vehicles, pedestrians, and surveillance cameras.

What electrical systems is this canopy light compatible with?

It operates on 120-277 VAC, making it suitable for most commercial installations.

Does the integrated LED design reduce maintenance costs?

Yes, the long-life LEDs eliminate frequent lamp replacements and lower maintenance expenses.

Is this fixture a good upgrade from traditional HID canopy lights?

Yes, it offers comparable or greater brightness while consuming less energy and providing instant-on performance.

Why choose this 180W LED canopy light?

It combines exceptional brightness, commercial-grade durability, and energy-efficient performance for large outdoor covered spaces.
