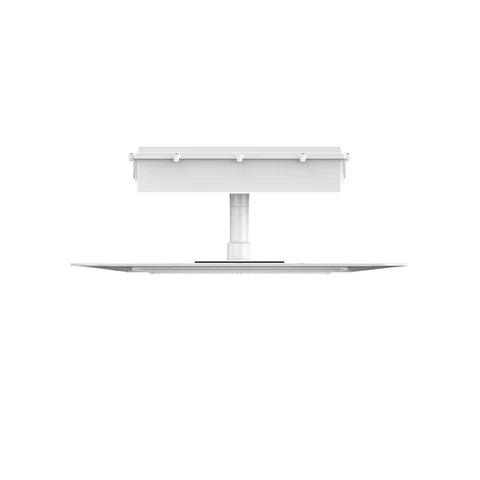

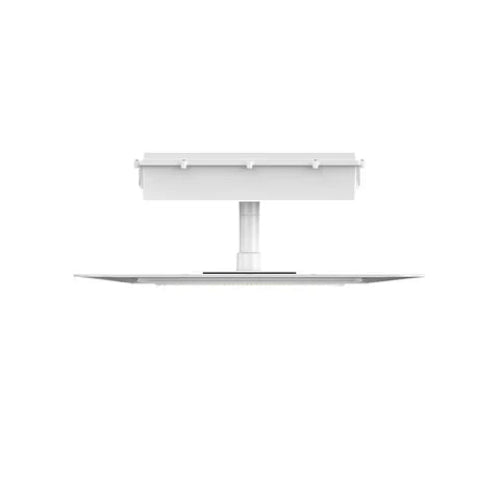

LED Canopy Light, 200W, 5700K, 28,000 Lumens, 120-277 VAC

SKU: SKU:6-CL-068

96 in stock

Enjoy additional discounts on orders above $500 at Lumens Depot.

Learn More

$230.44 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

View full details

Details

Product Overview
The Lumens Depot 200W LED Canopy Light delivers high-output outdoor lighting with 28,000 lumens and 5700K daylight color. Built for commercial and industrial spaces, it provides strong, uniform illumination while reducing energy consumption and improving overall site visibility.

Brightness & Energy Efficiency
With 200W power and up to 140 lumens per watt, this fixture offers ultra-bright lighting using less electricity than traditional systems. It is ideal for large coverage areas where high lumen output and long operating hours are required.

Dimming & Light Distribution
The canopy light supports 0-10V dimming, allowing adjustable brightness to meet different needs. A wide 120° beam angle provides broad and even light spread, reducing shadows and improving safety across parking, canopy, and work areas.

Protection & Durability
A built-in 10KV surge protector guards against sudden power spikes, improving fixture lifespan. The die-cast aluminum housing with white corrosion-resistant finish adds durability, while the IP65 waterproof rating protects against dust, rain, and harsh weather.

Installation & Electrical Compatibility
Designed with a secure 3/4” pipe mount for easy and stable installation. Universal voltage support (120–277V AC) allows compatibility with standard commercial electrical systems, making it suitable for retrofit and new installations.

Applications & Warranty
Perfect for gas stations, parking garages, warehouses, walkways, retail areas, and loading docks. UL & DLC certifications ensure safety, efficiency, and possible rebate eligibility. Backed by a 5-year warranty for long-term reliability and peace of mind.

Specifications

Beam angle	120º Degree	Cct	5700K
Certification	ETL and DLC©	Chip type	SMD2835
Color	White	Cri	>80
Dimension	21.6"L x 21.6"W x 8.5"H	Dimmable	0-10V
Efficacy	140 Lm/W	Frequency	50/60Hz
Housing	Die cast Aluminum white housing	Ip rating	IP65
Life hours	50,000 Hours	Lumens	28,000 Lumens
Operating temperature	-40°F to 113°F	Power factor	[">0.9"]
Voltage	120-277 VAC	Warranty	5 years
Watt	200W	Diffuser	PC Lens
Mounting type	3/4” Pipe mount	Thd	≤20%
Working humidity	10% - 90% RH

Downloads

Installation Guide

FAQS

What type of projects is this 200W canopy light designed for?

It is built for large commercial and industrial spaces that require high-intensity illumination.

How does the 5700K color temperature improve visibility?

The daylight white output enhances object clarity and color recognition in outdoor environments.

What is the light output of this fixture?

It delivers up to 28,000 lumens for powerful, wide-area lighting.

Can this fixture be used in high-traffic commercial locations?

Yes, it's an excellent choice for busy parking facilities, fueling stations, and loading zones.

Does this canopy light provide instant illumination?

Yes, the LED technology delivers full brightness immediately after power is applied.

Will upgrading to this LED fixture reduce operating expenses?

Yes, it consumes less energy than traditional HID fixtures while providing comparable or better brightness.

Is this canopy light suitable for new installations and retrofits?

Yes, it works well for both replacing existing fixtures and new commercial lighting projects.

What voltage range does this fixture support?

It operates on 120-277 VAC, making it compatible with a wide range of commercial electrical systems.

How does LED technology benefit long-term performance?

LEDs offer longer service life, lower maintenance requirements, and consistent light output over time.

Why is this canopy light a dependable choice for commercial properties?

Its high-output performance, durable construction, and energy-efficient design make it ideal for demanding outdoor applications.
