LED Grid Frame Ceiling Light, 2x2, 40W/30W/20W, Adjustable Watts & CCT,3000K-6500K , 4800 Lumens

SKU: SKU:6-LP-224

95 in stock

Enjoy additional discounts on orders above $500 at Lumens Depot.

Learn More

$241.66 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

Packs Pack of 4

View full details

Details

Adjustable Wattage & CCT
This 2×2 LED Grid Frame Ceiling Light offers selectable wattage options (20W, 30W, 40W) and tunable color temperatures (3000K–6500K), allowing you to tailor brightness and ambiance for any environment.

High Lumen Efficiency & Smooth Dimming
Generating up to 4800 lumens at 120 lm/W, the fixture provides bright, energy-efficient illumination. It also supports 0–10V dimming for smooth, flicker-free lighting adjustments that enhance comfort and reduce energy use.

Ultra-Lightweight Aluminium Design
Crafted from durable 6063-T5 aluminium, this panel is extremely lightweight, enabling easy one-person installation into standard grid/T-bar ceilings while maintaining long-term structural strength.

Wide Voltage Compatibility
Operating on 100–277 VAC (50/60Hz), the fixture integrates seamlessly across a broad range of electrical systems, making it suitable for both commercial and residential installations.

Safe, Certified & Eco-Friendly
ETL and DLC listed for safety, performance, and rebate eligibility, the light features a mercury-free, low-maintenance construction and includes a 5-year warranty for added peace of mind.

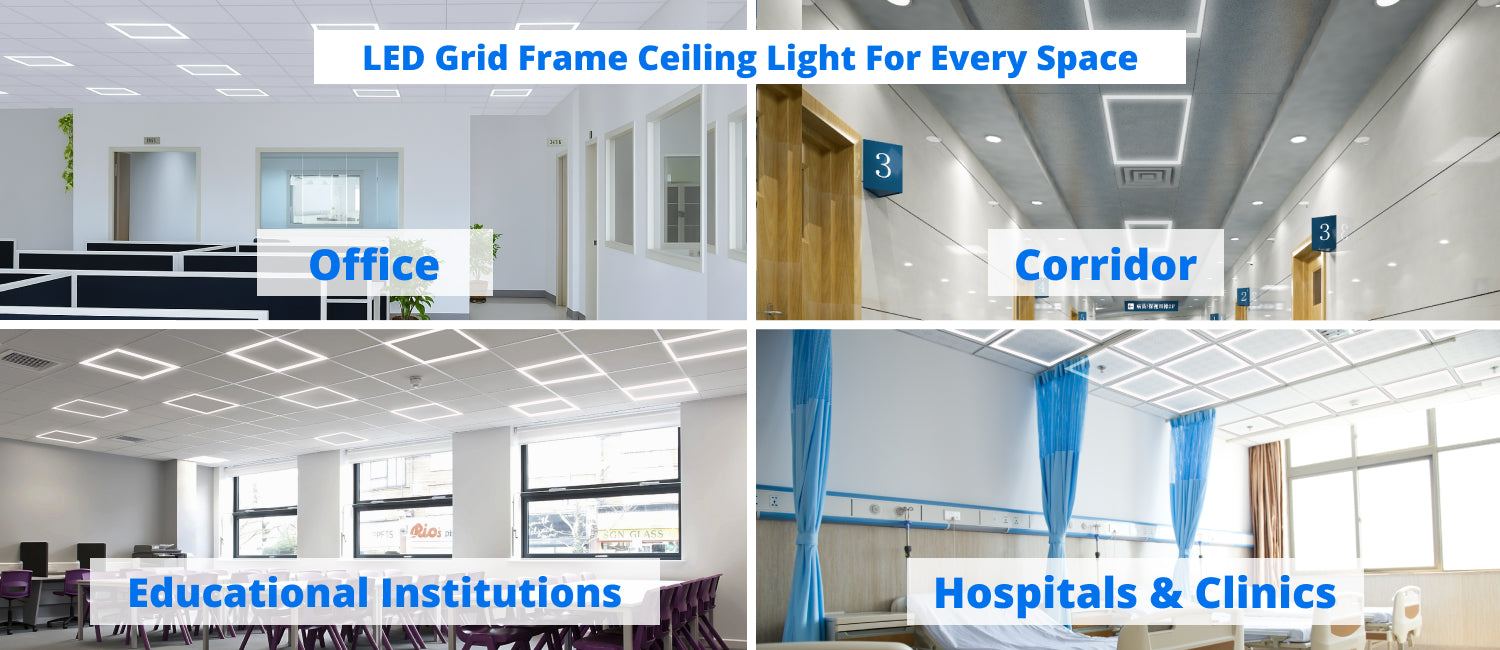

Ideal Applications
Perfect for offices, schools, hospitals, retail stores, restaurants, warehouses, and multi-unit residential spaces—providing flexible, efficient, and modern illumination for any setting.

Specifications

Beam angle	120°	Cct	3000K-6500K
Certification	ETL, UL & DLC©	Chip type	SMD2835
Color	White	Cri	>80
Dimension	23.7”L x 23.7”W x 1.52”D	Dimmable	0-10V
Efficacy	120lm/w	Frequency	50/60Hz
Housing	PC+Aluminum	Ip rating	IP20
Life hours	50000 Hrs	Lumens	4800 Lumens
Operating temperature	-4°F to 104°F	Power factor	[">0.9"]
Size	2ft x 2ft	Voltage	100-277 VAC
Warranty	5 Years	Watt	20W/30W/40W
Diffuser	PC Cover	Operating humidity	65% RH
Thd	<10%

Downloads

Installation Guide

FAQS

What makes this grid frame ceiling light different from a standard panel light?

The open-frame design creates a modern architectural look while providing bright, uniform illumination.

Can I customize the brightness level?

Yes, you can select between 20W, 30W, and 40W to achieve the desired light output.

Does this fixture offer multiple color temperatures?

Yes, adjustable CCT settings from 3000K to 6500K let you choose warm, neutral, or cool white lighting.

How much light does it produce?

This fixture delivers up to 4,800 lumens, making it suitable for a variety of commercial applications.

Is this light suitable for offices and retail spaces?

Yes, it's ideal for offices, retail stores, schools, showrooms, and other commercial environments.

Will it fit a standard 2x2 ceiling grid?

Yes, the fixture is designed for installation in most standard 2x2 T-bar/drop ceilings.

Can I change the settings before installation?

Yes, wattage and CCT can be selected during installation to match your space requirements.

Does the fixture provide uniform lighting?

Yes, the frame-style design helps distribute light evenly across the room with minimal dark spots.

Is this a good option for replacing fluorescent fixtures?

Absolutely. It offers improved energy efficiency, lower maintenance, and modern aesthetics.

Does this fixture require ongoing maintenance?

Very little. The integrated LED design eliminates the need for frequent bulb replacements.
