LED Mini Wall Pack Light Built-in, 12W, 5000K, 956 Lumens, Built-in 4W Battery Backup, 120-277 VAC

Name: LED Mini Wall Pack Light Built-in, 12W, 5000K, 956 Lumens, Built-in 4W Battery Backup, 120-277 VAC
Brand: Lumens Depot
SKU: 23-WP-010
Price: 154.50 USD
Availability: InStock

SKU: SKU:23-WP-010

50 in stock

Enjoy additional discounts on orders above $500 at Lumens Depot.

Learn More

$154.50 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

View full details

Product Description
Product Specification
FAQ

Details

Product Overview

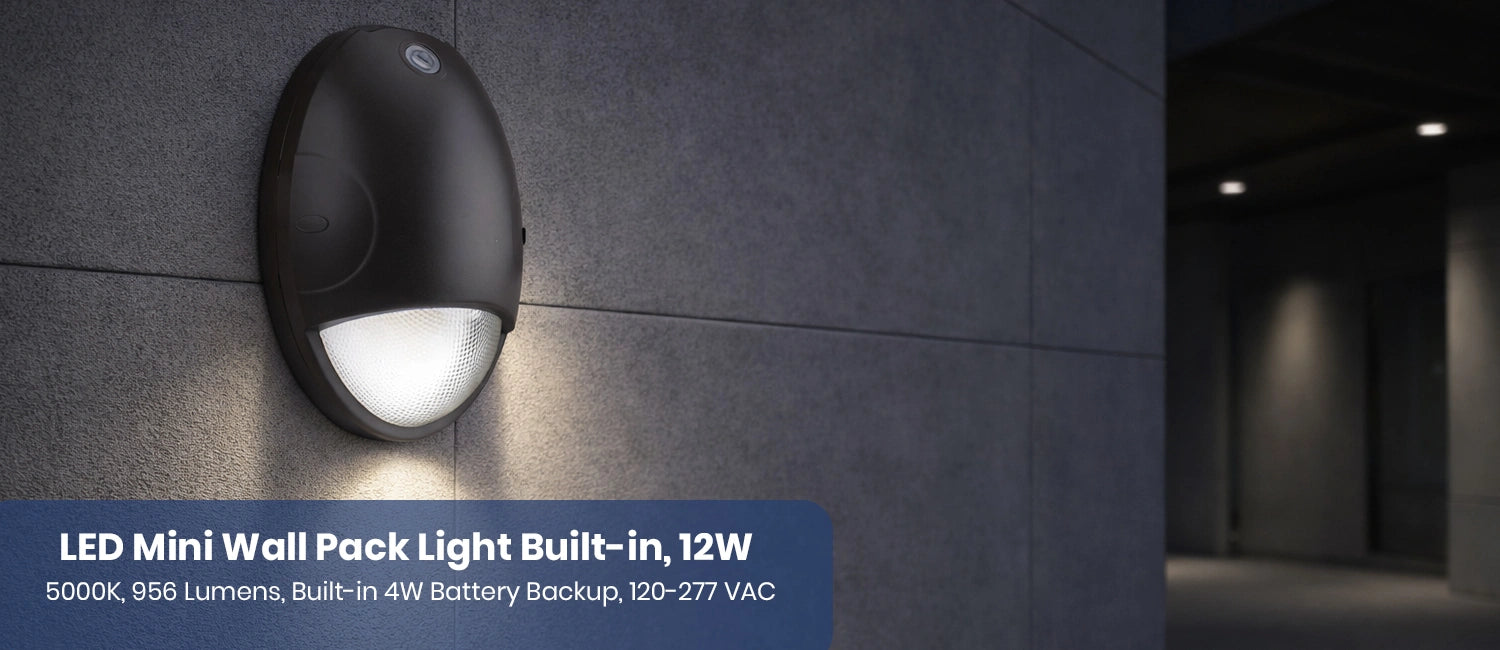

The Lumens Depot LED Mini Wall Pack is a compact 12W outdoor lighting solution delivering bright 5000K daylight illumination. It combines energy efficiency, durability, and emergency functionality in a sleek bronze housing.

Light Output & Efficiency
Producing up to 956 lumens with an efficacy of 134 lumens per watt, this mini wall pack provides clear, high-visibility lighting while significantly reducing energy consumption compared to traditional fixtures.

Emergency Battery Backup

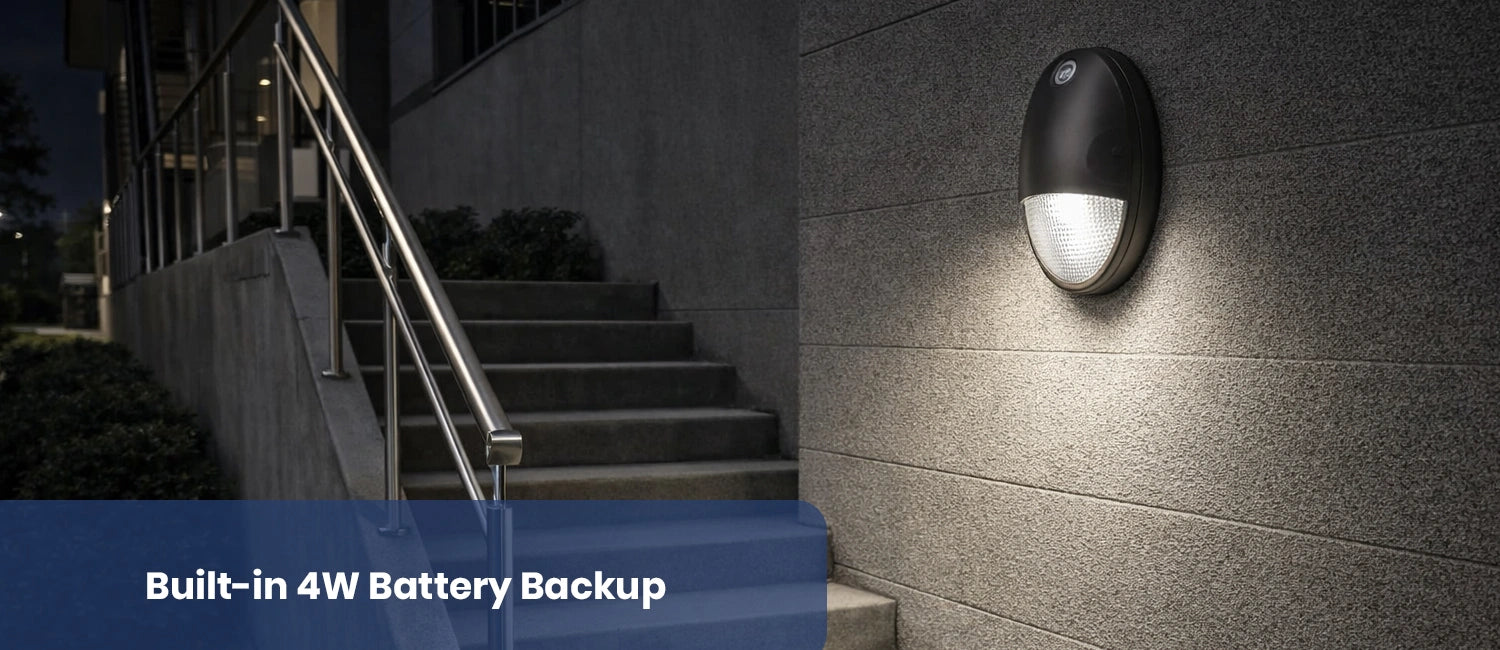

A built-in 4W battery backup delivers up to 90 minutes of emergency lighting during power outages, supporting safety requirements and ensuring continued illumination for exits, pathways, and security areas.

Smart Controls & Dimming

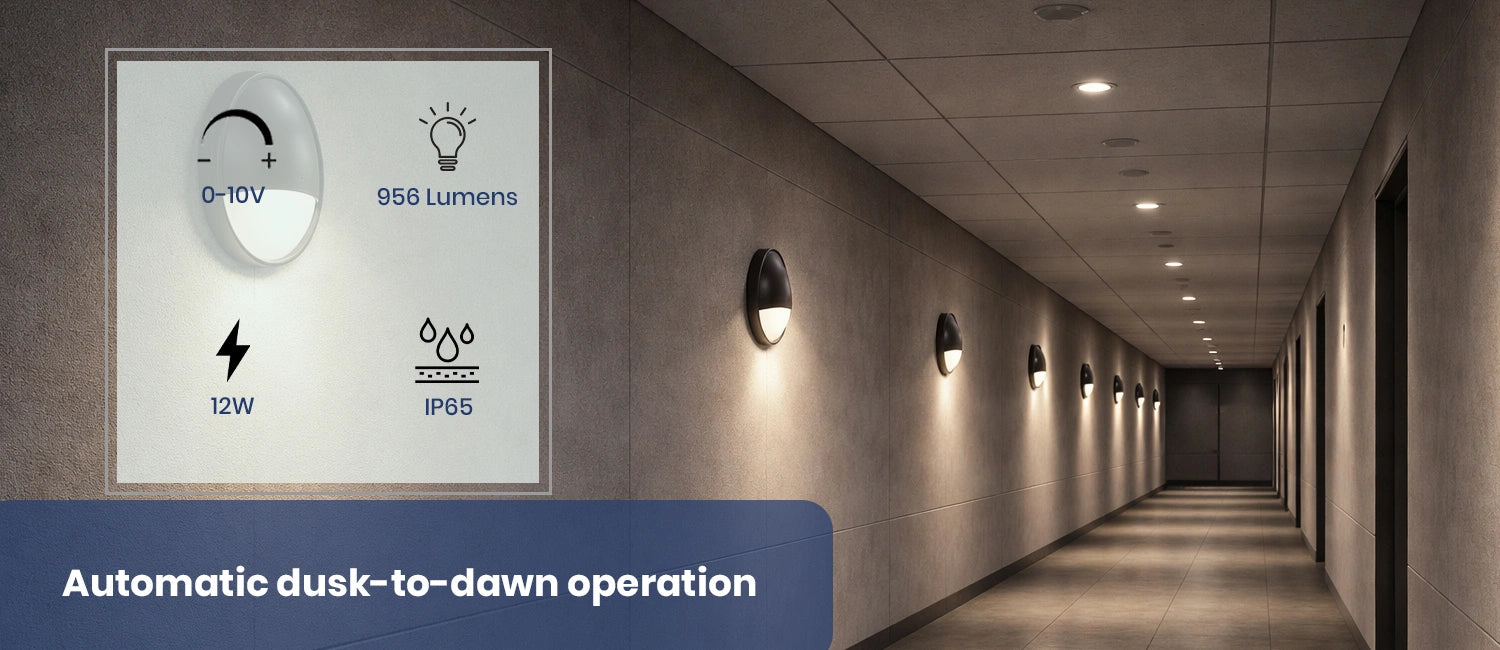

The integrated photocell enables automatic dusk-to-dawn operation for hands-free efficiency. 0–10V dimming support allows adjustable brightness to match site-specific lighting needs.

Durable & Weatherproof Build
Featuring a die-cast aluminum body with bronze powder-coated finish, the fixture is IP65-rated for protection against water, dust, and harsh outdoor conditions, ensuring long-term reliability.

Certifications & Applications

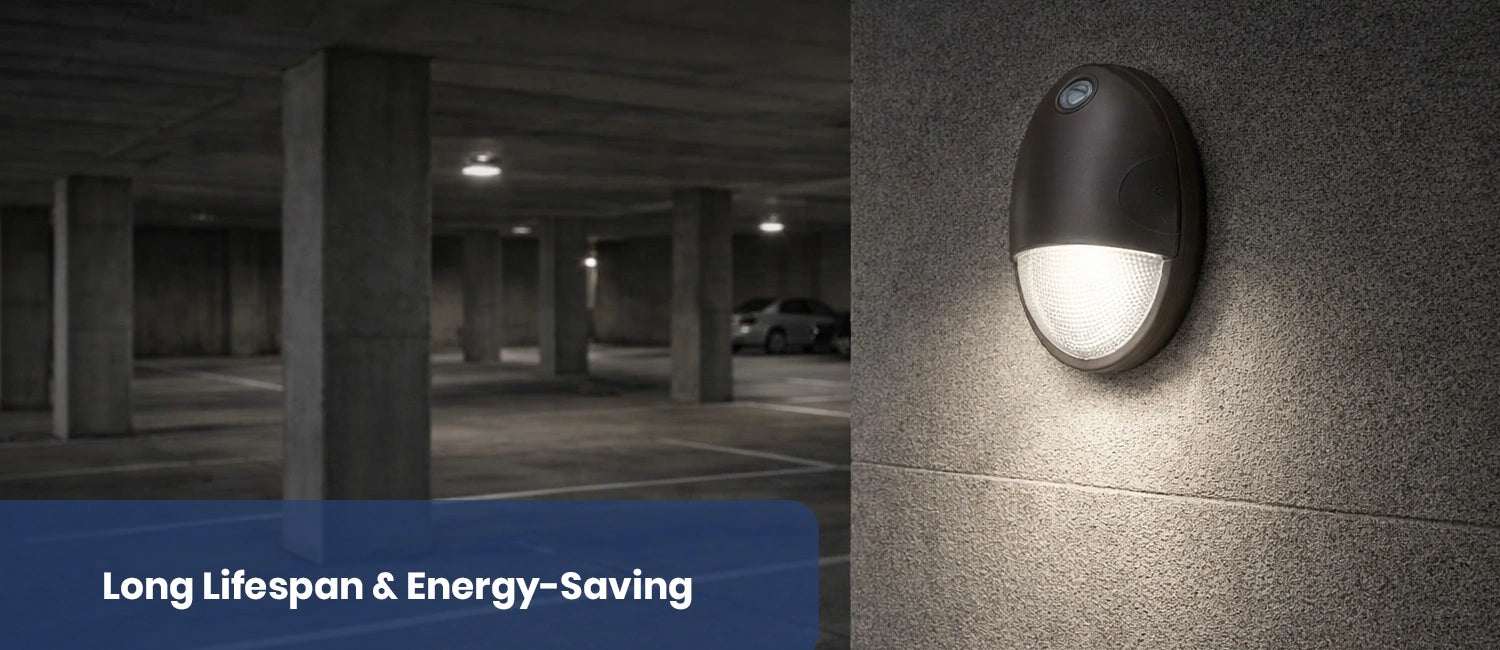

UL and DLC 5.1 listed with a 50,000-hour lifespan and 5-year warranty. Ideal for emergency lighting, commercial buildings, parking areas, walkways, warehouses, entryways, and perimeter security.

Specifications

Beam angle	100° Degree	Cct	5000K
Certification	UL DLC	Chip type	SMD2835
Color	Bronze	Cri	>70
Dimmable	0-10V	Efficacy	134lm/w
Frequency	50/60Hz	Housing	Die-cast Aluminum
Ip rating	IP65	Life hours	50000 Hours
Lumens	956 Lumens	Operating temperature	-40°F - 113°F
Voltage	120V-277 VAC	Warranty	5 Years
Watt	12W	Diffuser	Clear Drop Lens
Thd	≤20%	Working humidity	20% - 90% RH

Downloads

Installation Guide

FAQS

Does this Mini Wall Pack include emergency backup?

Yes. It features a built-in 4W battery backup to provide emergency illumination during a power outage.

How bright is the fixture during normal operation?

The 12W LED fixture produces 956 lumens for everyday lighting.

What happens when the main power fails?

The fixture automatically switches to its battery backup mode to maintain emergency lighting.

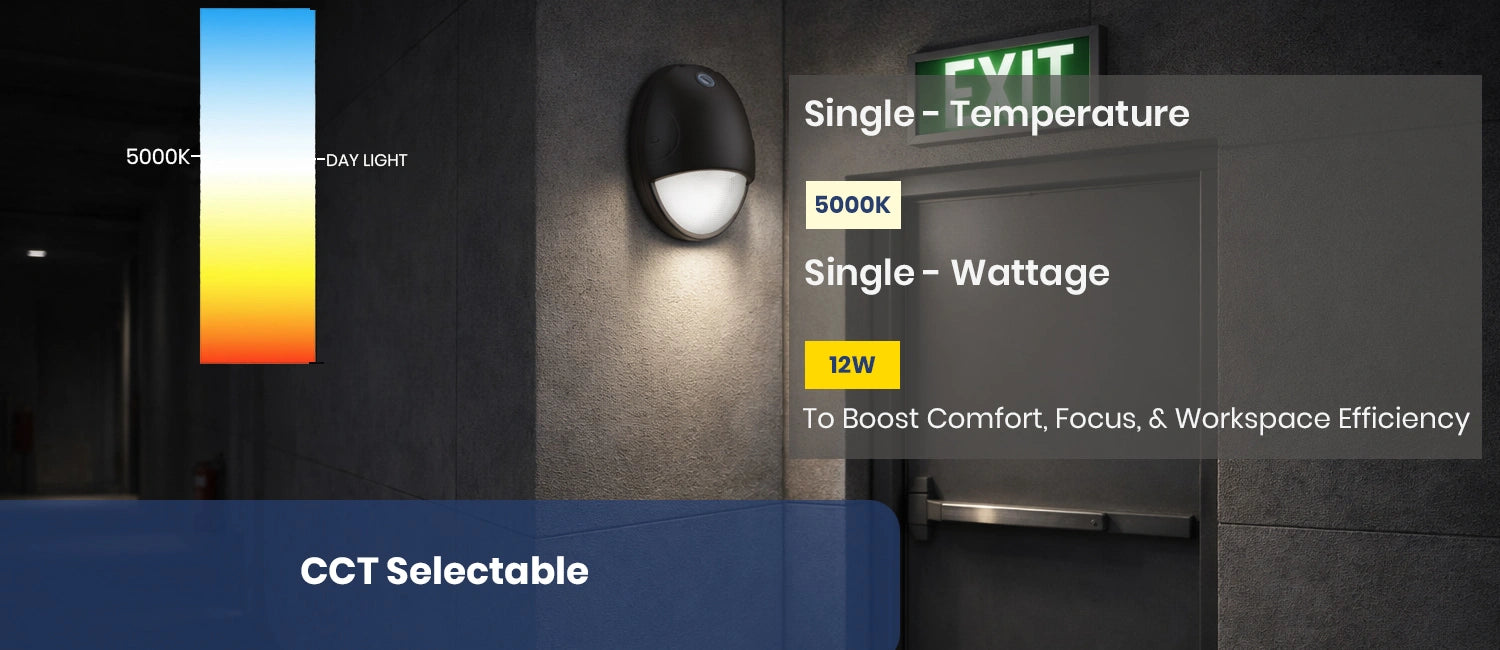

What color temperature does it provide?

It produces 5000K daylight white for clear and bright visibility.

Where can this Mini Wall Pack be installed?

It is suitable for entrances, stairways, corridors, walkways, doorways, and building exteriors.

Is it suitable for emergency egress lighting?

Its built-in battery backup makes it useful for areas where continued illumination during power outages is needed.

What voltage range does it support?

It operates on 120–277 VAC, making it compatible with many commercial electrical systems.

Is a separate emergency battery unit required?

No. The 4W emergency battery backup is built into the fixture, simplifying installation.

Is this fixture suitable for smaller spaces?

Yes. Its compact mini wall pack design works well where a full-size wall pack is unnecessary.

Does the light turn on instantly?

Yes. The LED provides instant illumination without requiring any warm-up time.
