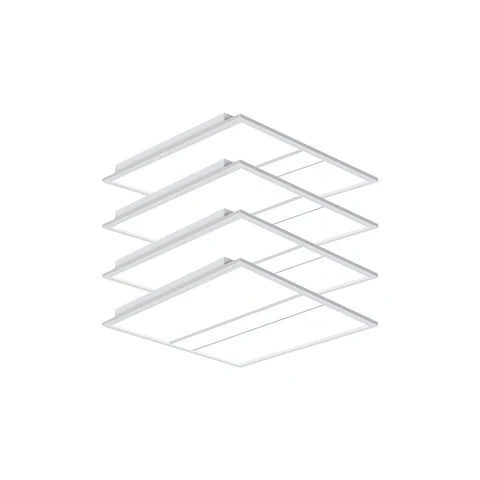

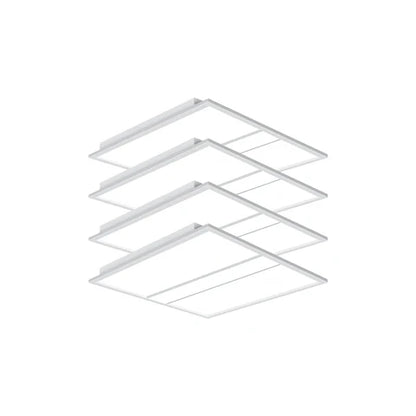

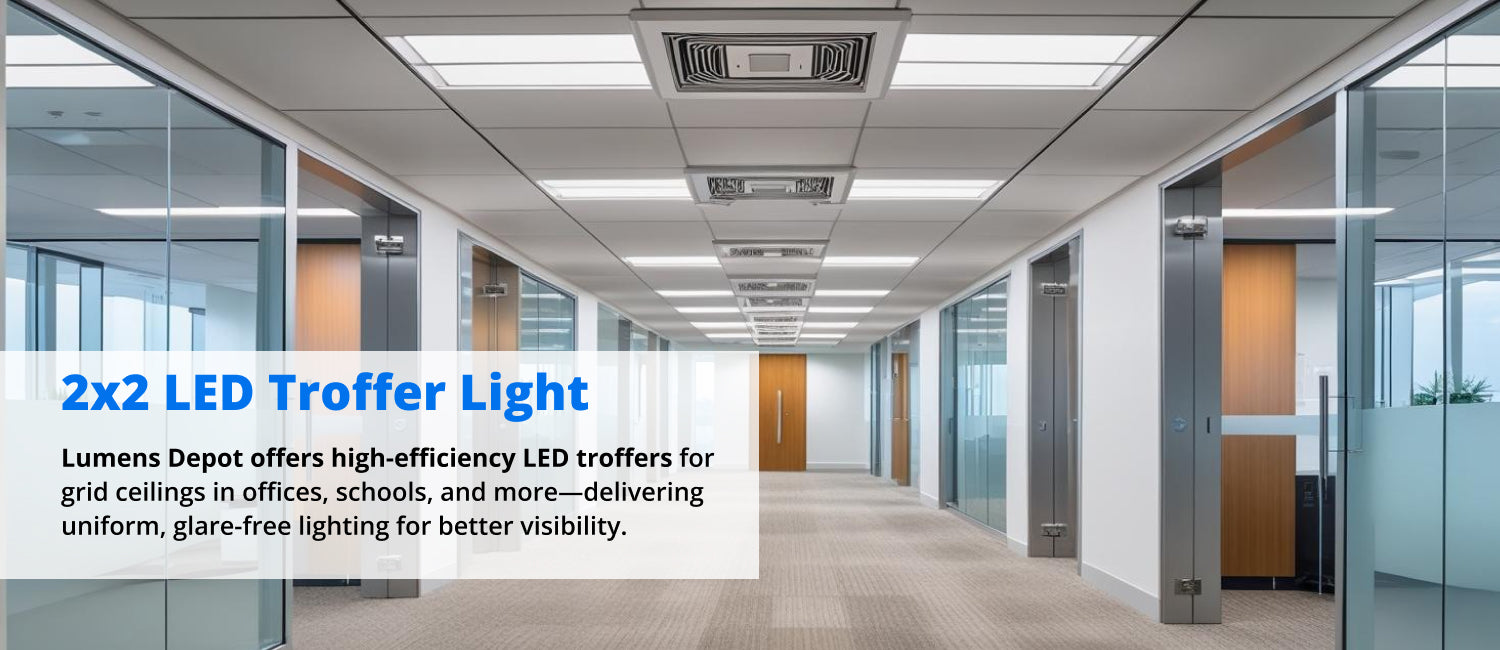

LED Panel/Troffer, 2x2, Adjustable Wattage 25W/30W/35W, CCT, Adjustable 3500K/4000K/5000K, 3850 Lumens

SKU: SKU:6-LT-177

100 in stock

Enjoy additional discounts on orders above $500 at Lumens Depot.

Learn More

$359.00 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

Packs Pack of 4

View full details

Product Description
Product Specification
FAQ

Details

Adjustable Wattage & CCT
This 2ft x 2ft LED Panel/Troffer offers customizable lighting with selectable 25W, 30W, and 35W wattage options and tunable color temperatures of 3500K, 4000K, and 5000K, allowing you to create the ideal brightness and ambiance for any environment.

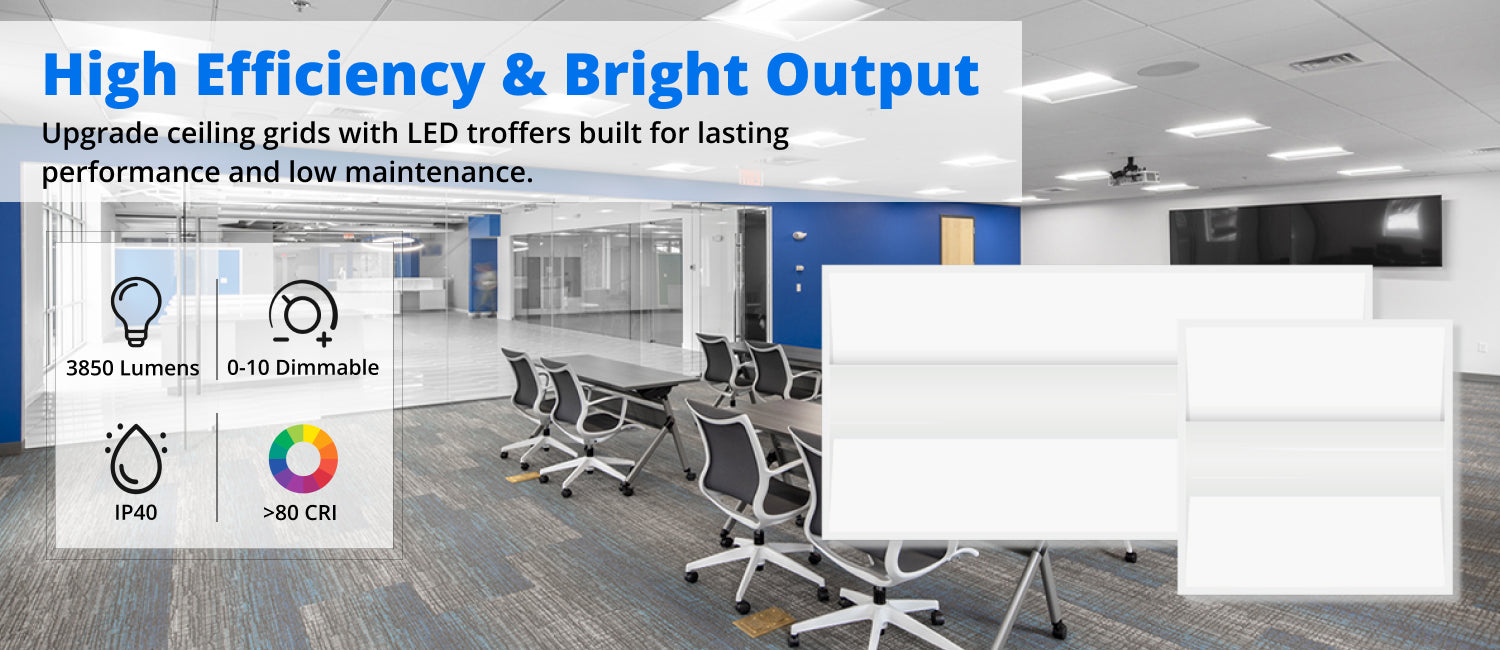

High Efficiency & Bright Output
Delivering up to 110 lumens per watt and a total output of 3850 lumens, this fixture provides powerful illumination while significantly reducing energy consumption in commercial settings.

Uniform, Glare-Free Lighting
Featuring a fully luminous center panel, the fixture distributes soft, even light with no hotspots or glare—enhancing comfort and visibility in offices, schools, hospitals, and retail spaces.

Dimmable & Wide Coverage
Equipped with 1–10V dimming capability, it allows smooth brightness adjustment and offers a wide 120° beam angle, ensuring broad, consistent coverage across any room.

Durable Construction & Easy Installation
Built with architectural-grade materials, this panel fits standard 2ft x 2ft and 2ft x 4ft grid ceilings and supports optional hanging or surface mounting. It operates on 100–277 VAC, offering compatibility with a wide range of electrical systems.

Certified, Long-Lasting Performance

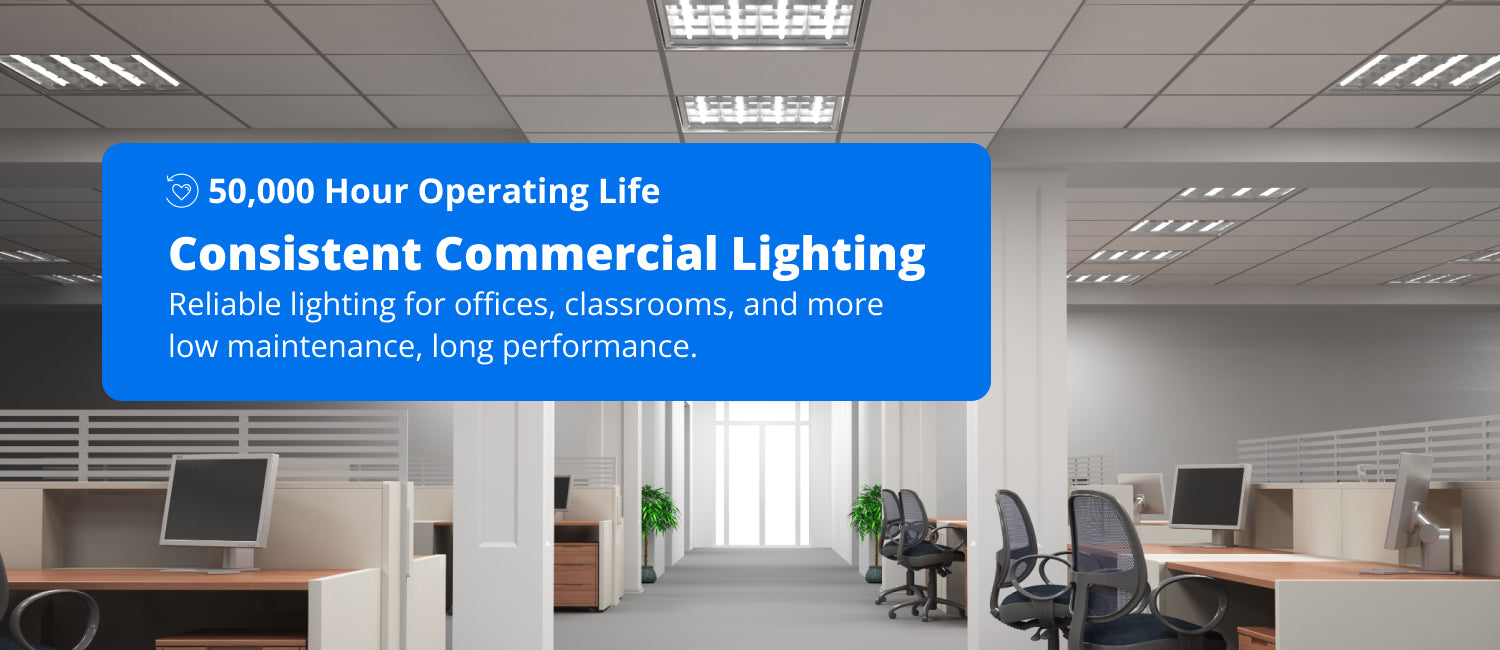

UL Listed for safety and lasting reliability, this LED panel provides 50,000+ hours of operation and comes with a 5-year warranty, ensuring dependable, low-maintenance performance.

Specifications

Beam angle	110°	Cct	3500K/4000K/5000K
Certification	ETL, UL & DLC©	Chip type	SMD2835
Color	White	Cri	>80
Dimension	23.75”L X 23.75”W X 2.2”D	Dimmable	0-10V
Efficacy	110lm/w	Frequency	50/60Hz
Housing	Aluminum	Ip rating	IP40
Life hours	50000 Hours	Lumens	3850 Lumens
Operating temperature	-4°F to 104°F	Power factor	[">0.9"]
Size	2ft x 2ft	Voltage	100-277 VAC
Warranty	5 Years	Watt	25W/30W/35W
Storage humidity	<50%

Downloads

Installation Guide Installation Guide

FAQS

What type of ceiling is this troffer designed for?

It is designed for standard 2x2 suspended grid ceiling systems.

Is this fixture suitable for small commercial spaces?

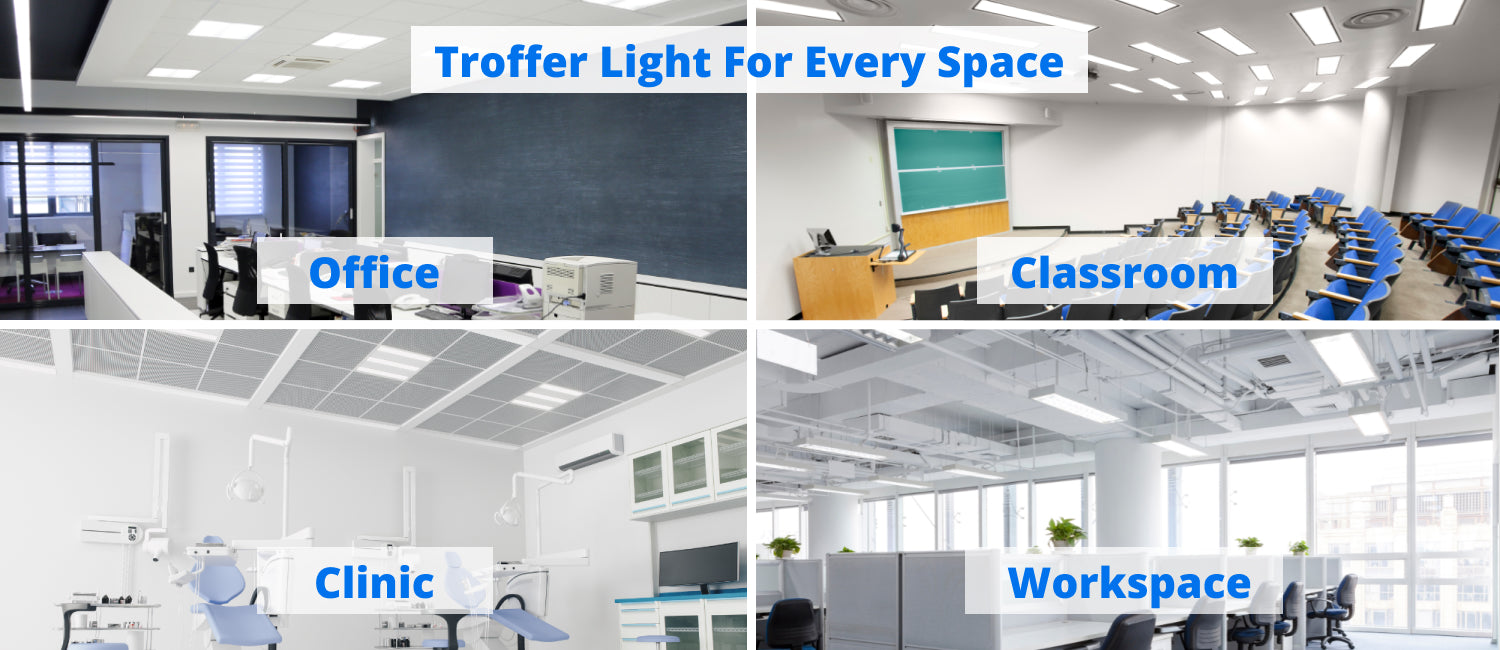

Yes, it's ideal for offices, clinics, classrooms, and meeting rooms.

Can I adjust the fixture for different brightness levels?

Yes, selectable wattage settings allow light output customization.

Does this troffer support different lighting preferences?

Yes, selectable CCT options provide flexible light color selection.

Is this fixture a good choice for retrofit projects?

Yes, it easily replaces outdated fluorescent troffers.

Can the same fixture be used across multiple applications?

Yes, its adjustable settings make it suitable for various environments.

Does this troffer provide consistent illumination?

Yes, it delivers smooth and uniform light distribution.

Is this fixture suitable for professional environments?

Yes, it is commonly used in commercial and institutional settings.

Can adjustable settings help reduce inventory needs?

Yes, one fixture can replace multiple fixed-output models.

What makes this troffer a flexible lighting solution?

Its selectable wattage and CCT options provide installation versatility.
