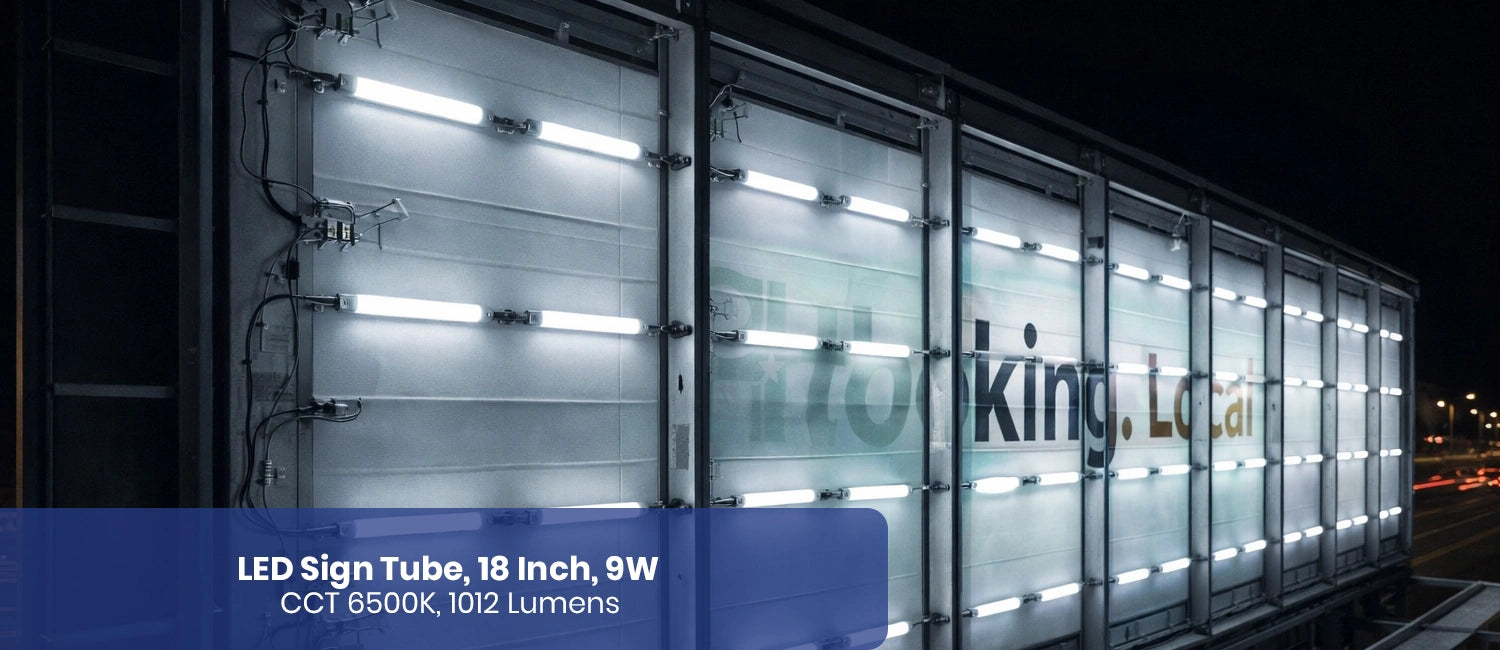

LED Sign Tube, 18 Inch, 9W, CCT 6500K, 1012 Lumens

LED Sign Tube, 18 Inch, 9W, CCT 6500K, 1012 Lumens

SKU: SKU:6-ST-245

100 in stock

free-shipping-icon
free-shipping-icon
free-shipping-icon

Enjoy additional discounts on orders above $500 at Lumens Depot.

Learn More
Regular price $1,089.00 USD

Regular price Sale price $1,089.00 USD
Sale Sold out
Shipping calculated at checkout.
Packs

Accessories

12

12" Daisy Chain Connector for LED Sig...

$10

Bracket with 2 Transparent Joints for LED Sign Tube

Bracket with 2 Transparent Joints for...

$10

End Cap R17 for LED Sign Tube

End Cap R17 for LED Sign Tube

$10

Hanging Chain for LED Sign Tube

Hanging Chain for LED Sign Tube

$10

Power Cord for LED Sign Tube

Power Cord for LED Sign Tube

$10

Transparent Joint for LED Sign Tube

Transparent Joint for LED Sign Tube

$10

View full details
Product A Image Product A Image Product A Image Product A Image Product A Image

Details

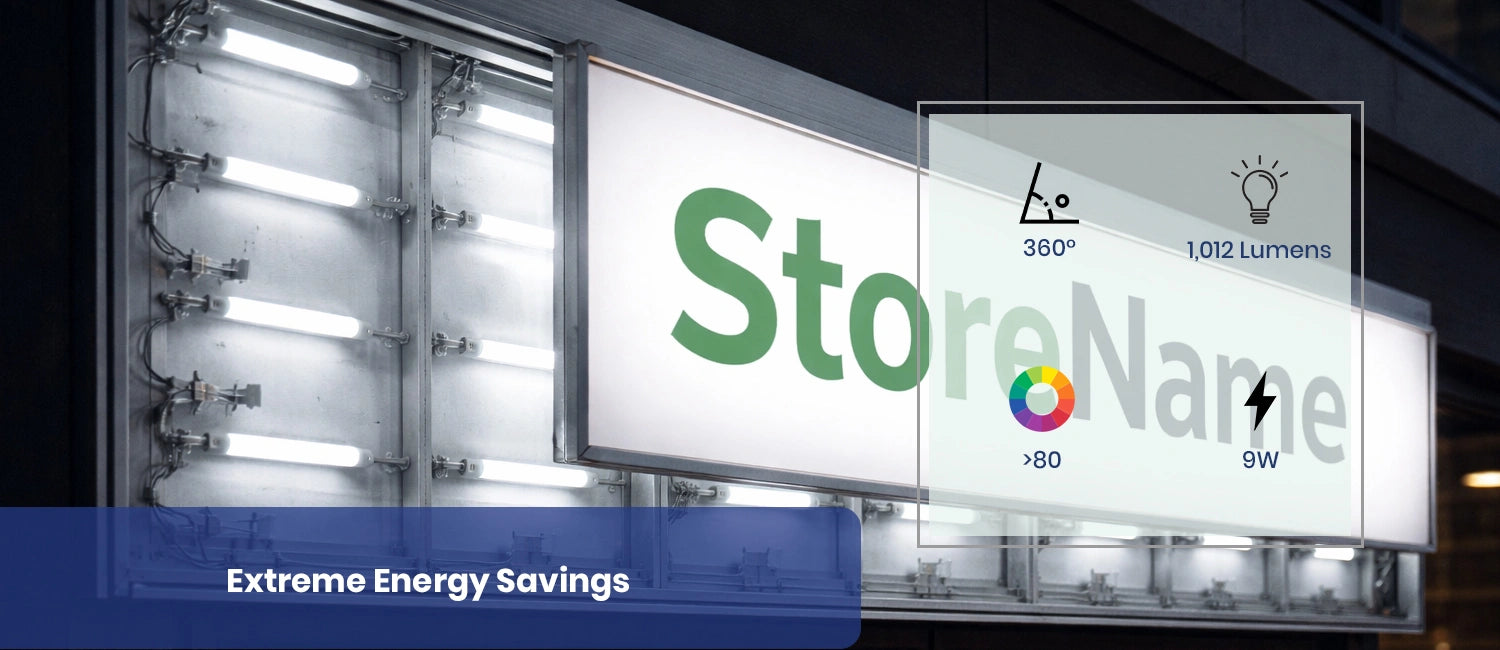

Extreme Energy Savings
This 9W LED sign tube delivers 1012 lumens of bright 6500K light while using far less power than fluorescent lamps, lowering long-term energy, maintenance, and replacement costs.

Quick and Easy Installation
The Type B ballast-bypass design connects directly to existing sockets, eliminating external drivers or ballasts for a fast, hassle-free installation process.

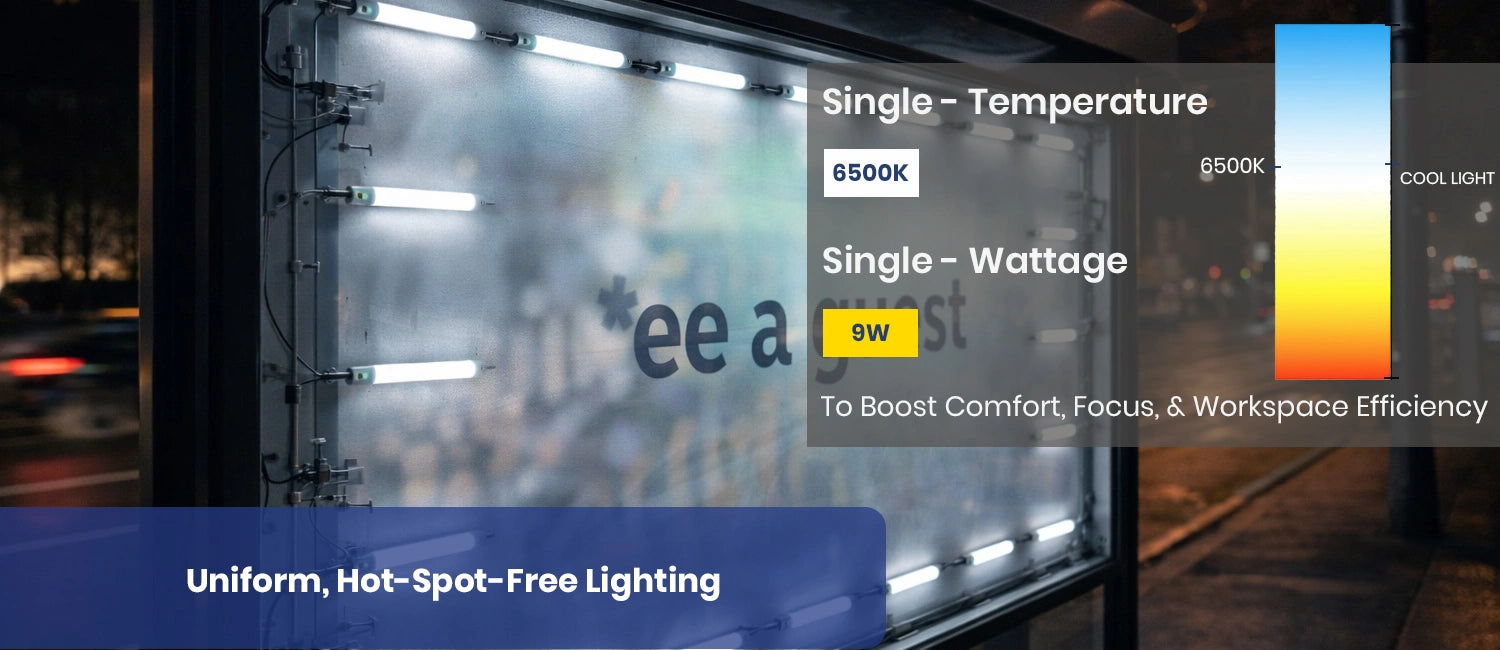

Uniform, Hot-Spot-Free Lighting
Advanced optical lens technology covers every LED chip to ensure smooth, consistent, double-sided illumination without hot spots, providing crisp, vibrant sign lighting.

Flexible Sizing and Adjustable Design
With only four size options needed, its modular two-part design adjusts to fit a wide range of sign cabinet dimensions for maximum versatility.

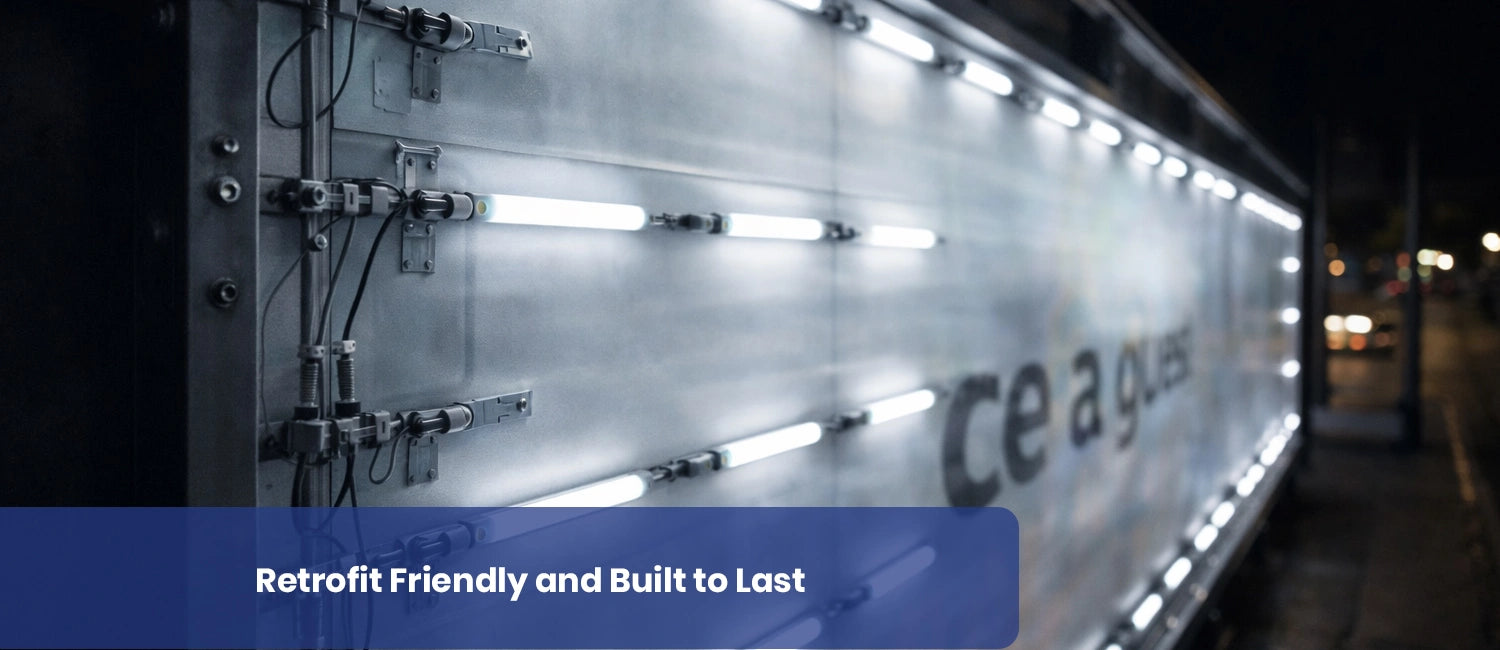

Retrofit Friendly and Built to Last
A rotatable R17 end cap allows easy alignment during retrofits, while the aluminum heatsink and durable construction enhance cooling, longevity, and break-resistance.

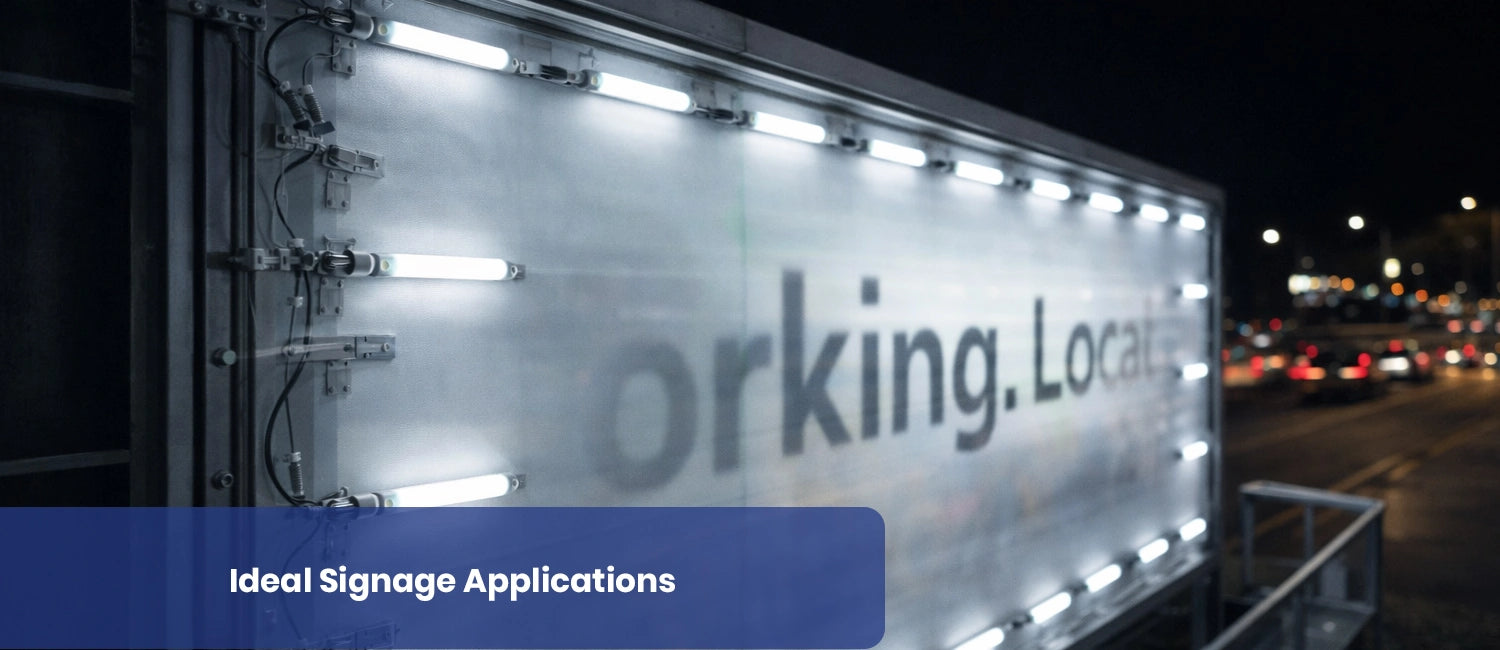

Ideal Signage Applications
Perfect for retail storefronts, gas stations, billboards, menu boards, hotels, entertainment venues, and indoor or outdoor commercial signs requiring bright, reliable illumination.

Specifications

Beam angle 360° Degree Cct 6500K
Certification ETL Chip type SMD2835
Color White Cri >80
Dimension 22.83" x 7.52" x 8.07" Efficacy 112lm/w
Frequency 50/60Hz Housing PC + Aluminum
Ip rating IP65 Life hours 50000 Hours
Lumens
  • 1,012 Lumens
Operating temperature -4°F to 113°F
Power factor ["≥0.9"] Size 18 Inch
Voltage 120-277 VAC Warranty 5 Years
Watt 9W Diffuser type Clear
Glass Clear Lens Power Type B/ Double Ended Power

FAQS

What type of signs can this 18-inch LED tube illuminate?

It’s suitable for menu boards, retail signage, light boxes, and display cabinets.

Is 1,012 lumens enough for sign visibility?

Yes, it provides bright illumination for compact and medium-sized signage applications.

What is the benefit of 6500K lighting in signs?

6500K produces a crisp cool-white tone that enhances sign clarity and readability.

Can this tube help improve nighttime sign visibility?

Yes, the bright LED output helps signage remain noticeable in lower-light conditions.

Is the 18-inch size suitable for compact display areas?

Absolutely, it fits well in smaller sign cabinets and display setups.

Can this LED tube replace traditional fluorescent sign lighting?

Yes, it’s a modern energy-efficient replacement option.

Is this fixture suitable for retail and commercial signage?

Yes, it’s commonly used in stores, restaurants, kiosks, and advertising displays.

Does LED sign lighting help reduce operating costs?

Yes, LED technology helps lower energy usage and maintenance requirements.

Is this tube designed for continuous operation?

Yes, it’s built for long daily operating hours in signage applications.

What is the biggest advantage of this LED sign tube?

It provides compact, bright, and efficient illumination for commercial signage.
