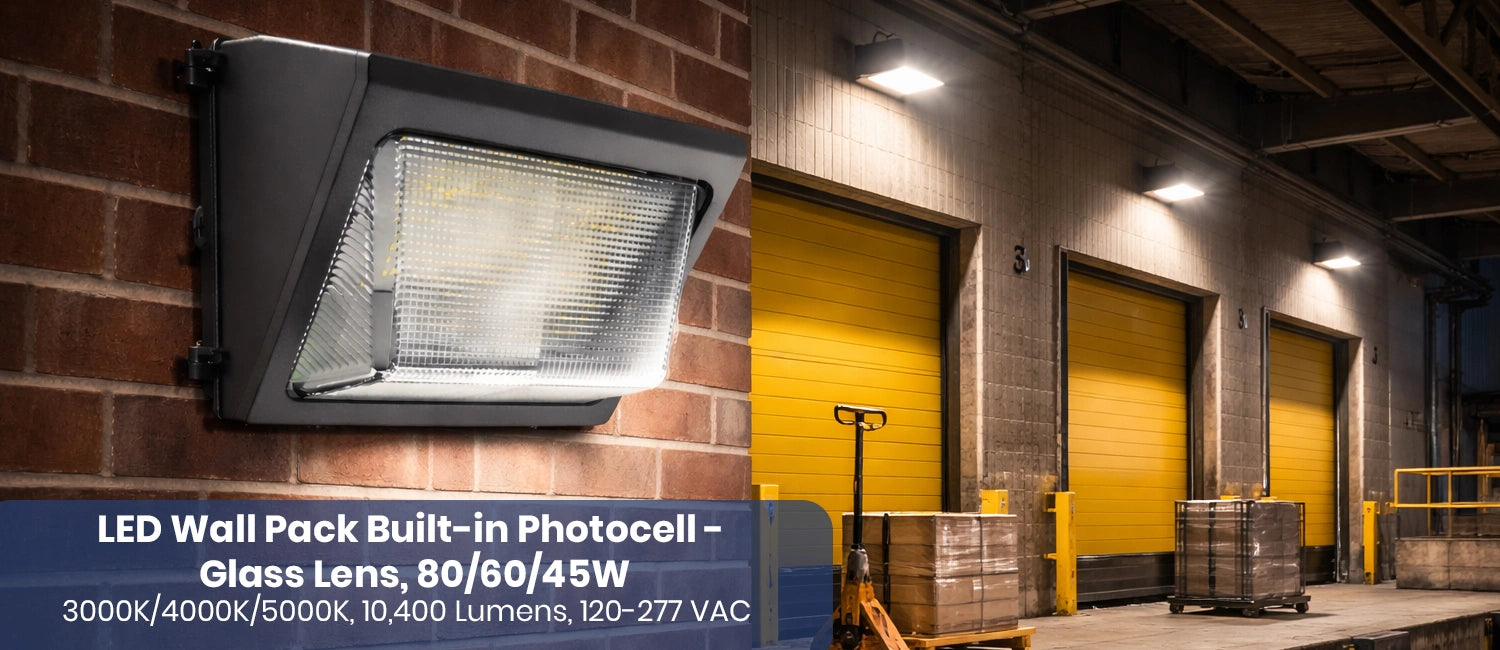

LED Wall Pack Built-in Photocell - Glass Lens, 80/60/45W, 3000K/4000K/5000K, 10,400 Lumens, 120-277 VAC

SKU: SKU:016-WP-006

100 in stock

Enjoy additional discounts on orders above $500 at Lumens Depot.

Learn More

$75.84 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

View full details

Product Description
Product Specification
FAQ

Details

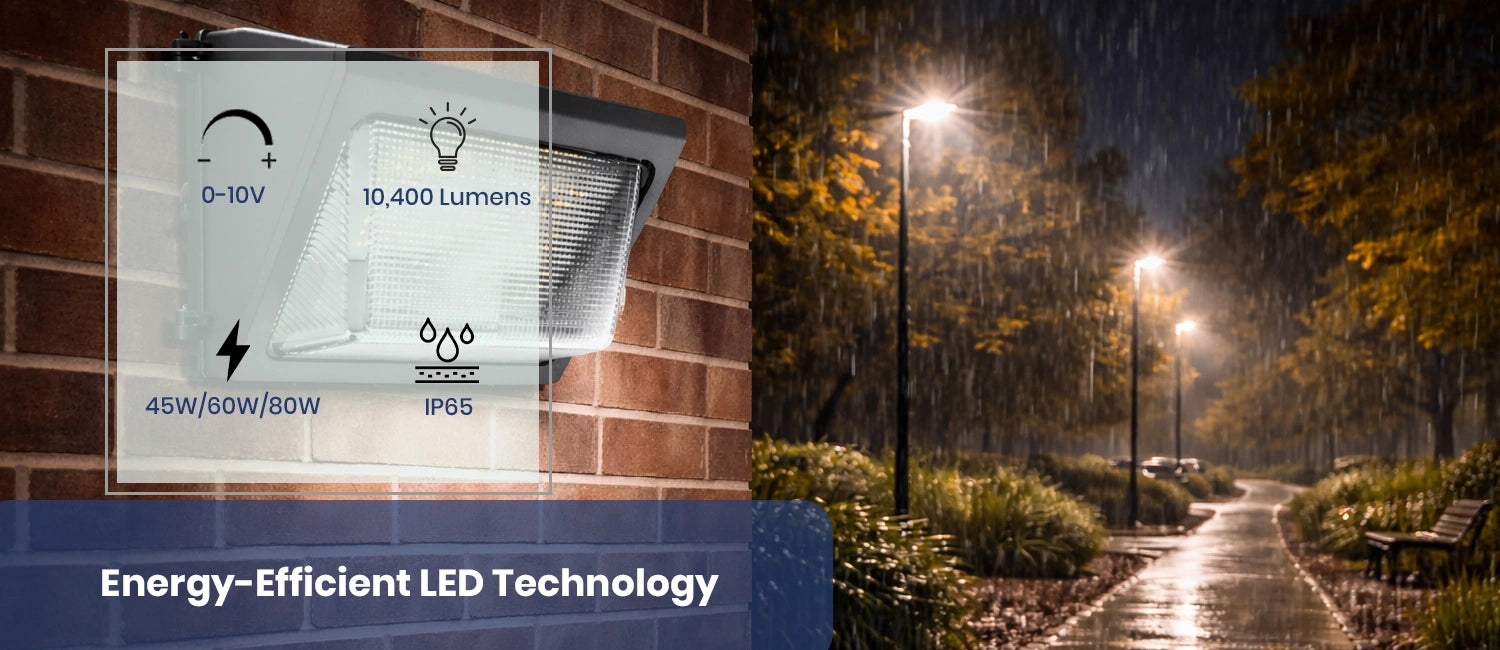

Flexible Outdoor Lighting Performance
The LED Wall Pack offers adjustable wattage options of 45W, 60W, and 80W, allowing customized brightness and energy use. It is designed to deliver reliable illumination for a wide range of outdoor commercial and industrial applications.

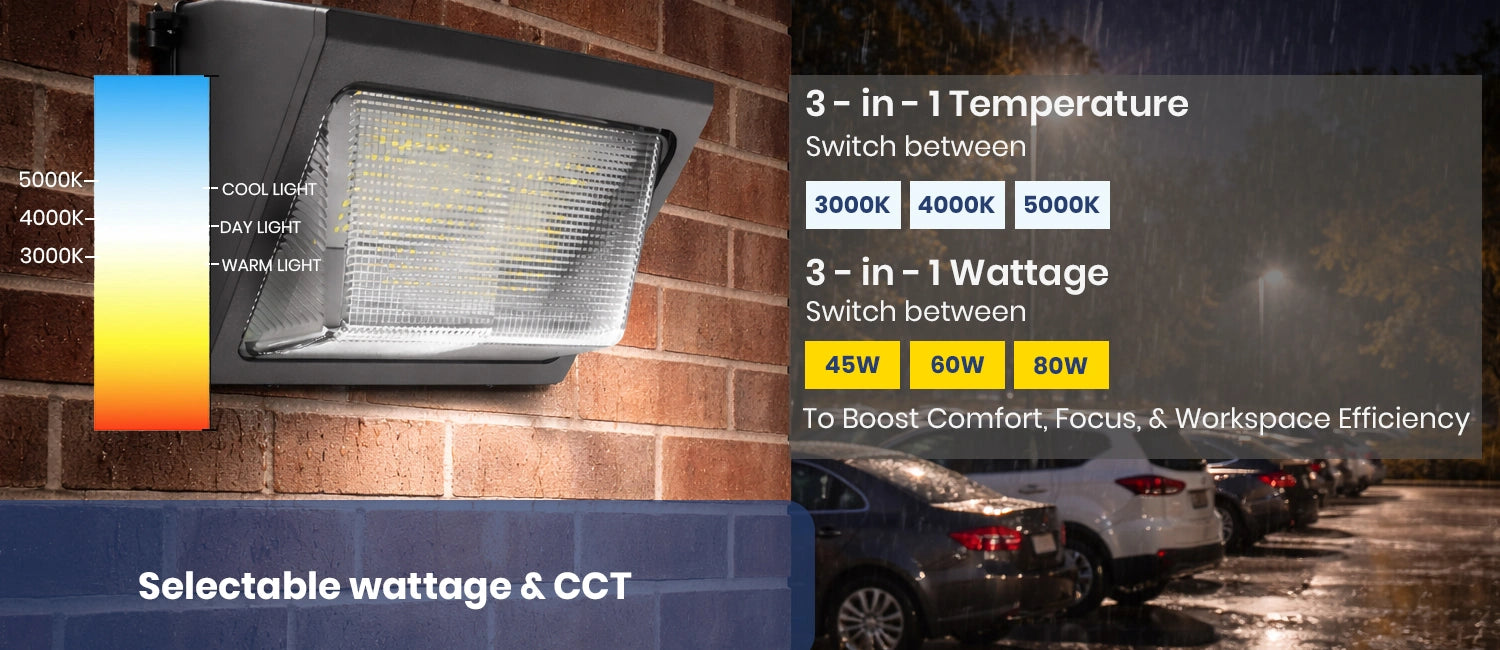

Selectable Color Temperature Options
With CCT selection of 3000K, 4000K, and 5000K, this wall pack adapts easily to different environments. Users can choose warm, neutral, or cool white lighting to meet functional and aesthetic needs.

Automatic Dusk-to-Dawn Operation
A built-in photocell sensor enables automatic on and off operation based on ambient light levels. This feature improves energy efficiency, enhances security, and eliminates the need for manual lighting control.

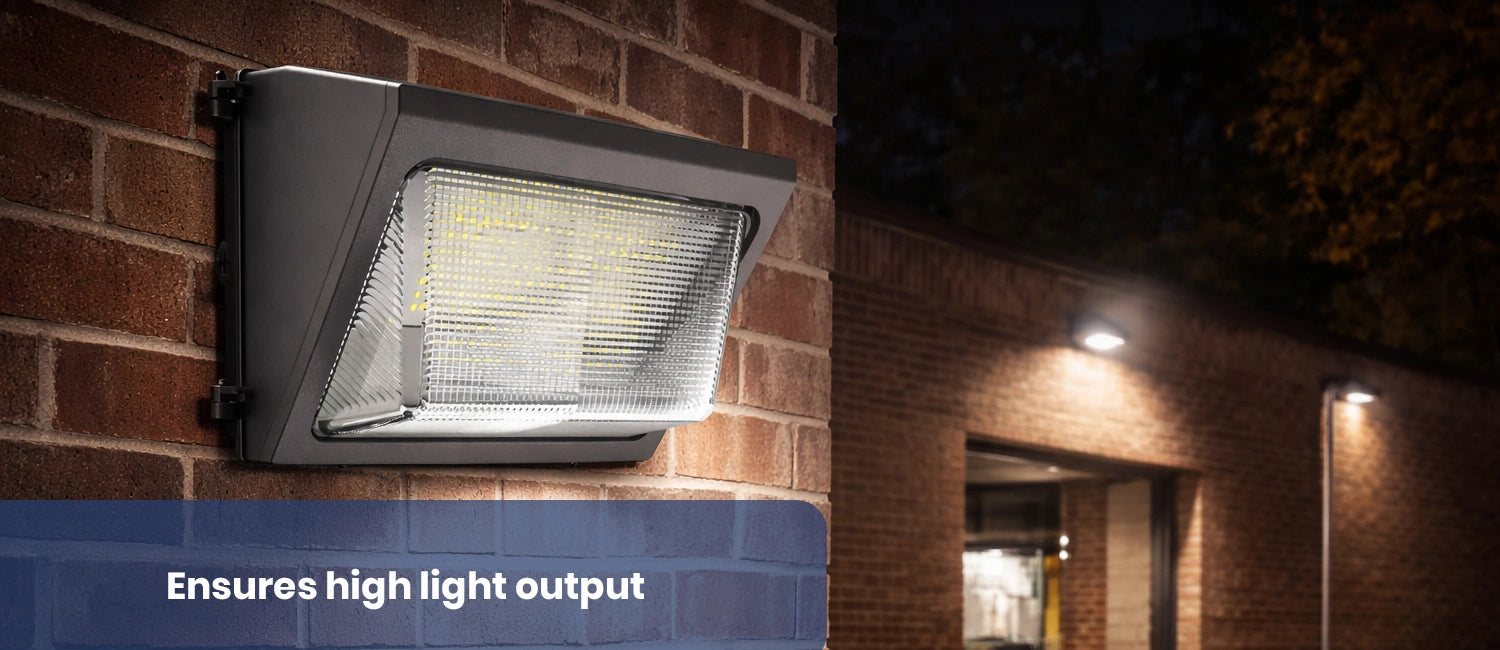

Durable Glass Lens Design
The high-quality glass lens ensures strong light output while providing excellent resistance to outdoor elements. It supports long-term performance and maintains consistent illumination in demanding exterior conditions.

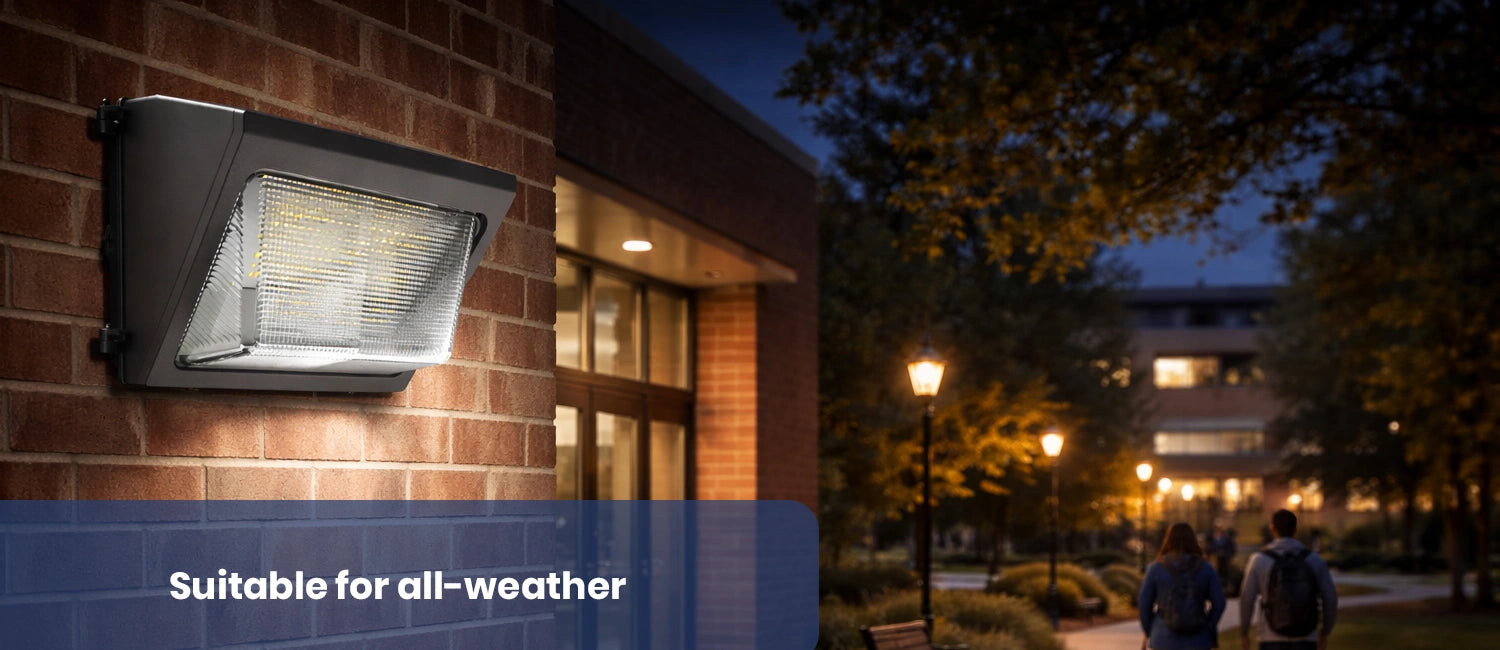

Weatherproof and Rugged Construction
With an IP65 rating and a rugged aluminum housing, the fixture is built to withstand harsh weather, moisture, and dust. Its durable construction ensures dependable performance year-round.

Versatile Applications and Installation
Operating on a wide 120–277V input range, this wall pack is ideal for parking lots, building exteriors, entrances, warehouses, schools, and public spaces, delivering efficient and dependable outdoor lighting.

Specifications

Cct	3000K/4000K/5000K	Certification	UL DLC
Color	Grey	Cri	>70
Dimmable	0-10V	Dlc model number	SS-WK0412
Efficacy	130lm/w	Housing	die cast aluminum housing and glass
Ip rating	IP65	Life hours	50000 Hours
Lumens	10,400 Lumens	Voltage	120-277 VAC
Warranty	5 Years	Watt	80W/60W/45W

Downloads

Installation Guide

FAQS

Can the wattage be adjusted on this LED Wall Pack?

Yes. It offers selectable 45W, 60W, and 80W settings for different lighting requirements.

What is the maximum light output?

It delivers up to 10,400 lumens, providing strong illumination for commercial exterior areas.

Does this wall pack turn on automatically at night?

Yes. The built-in photocell provides automatic dusk-to-dawn operation.

Can I change the color temperature?

Yes. You can select 3000K, 4000K, or 5000K to suit different environments.

What is the advantage of the glass lens?

The glass lens provides durability and helps maintain consistent light output in outdoor applications.

Is this LED Wall Pack dimmable?

Yes. It supports 0–10V dimming for flexible brightness control.

How energy efficient is this fixture?

It delivers approximately 130 lumens per watt, helping reduce energy consumption.

Where can this wall pack be used?

It is ideal for loading docks, warehouses, parking areas, entrances, walkways, and building perimeters.

Is it suitable for outdoor weather?

Yes. Its IP65 rating and die-cast aluminum construction make it suitable for outdoor installations.

What certifications and warranty does it have?

It is UL and DLC certified and comes with a 5-year warranty.
