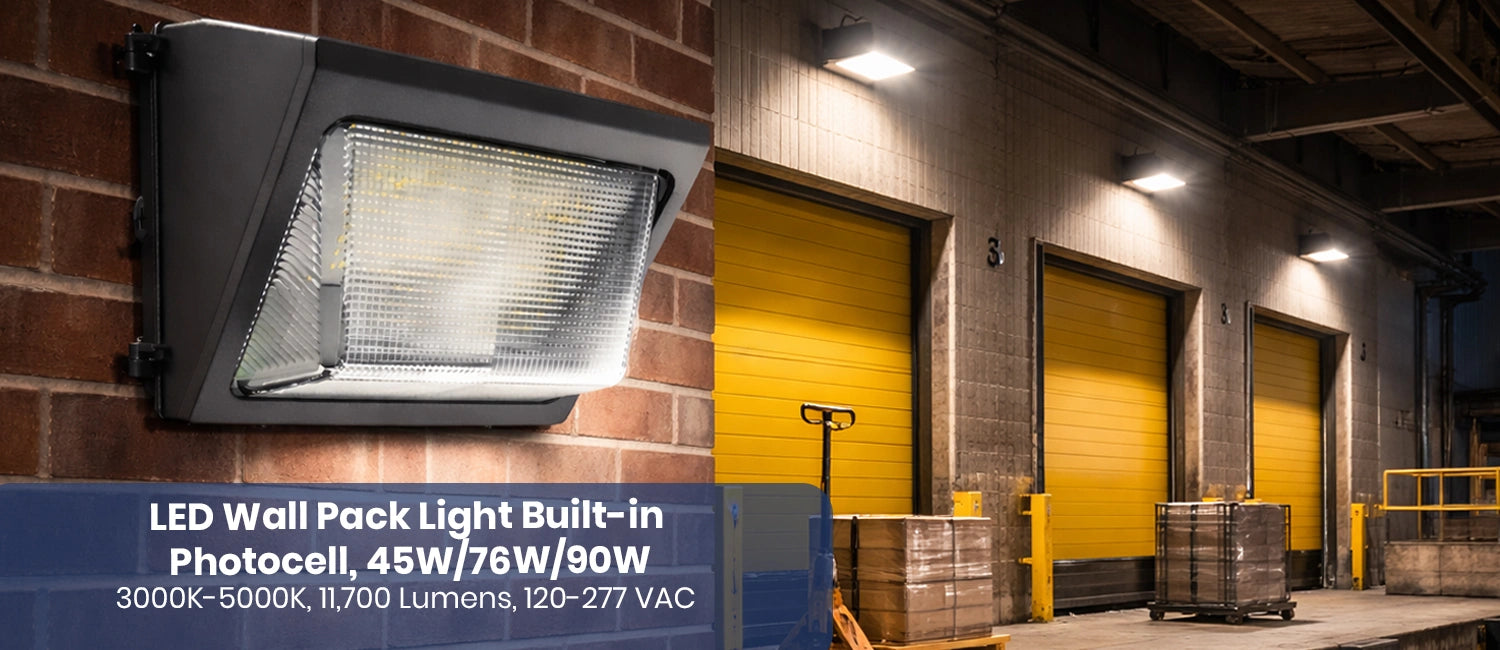

LED Wall Pack Light Built-in Photocell, 45W/76W/90W, 3000K-5000K, 11,700 Lumens, 120-277 VAC

Name: LED Wall Pack Light Built-in Photocell, 45W/76W/90W, 3000K-5000K, 11,700 Lumens, 120-277 VAC
Brand: Lumens Depot
SKU: 7-WL-054
Price: 96.00 USD
Availability: InStock

SKU: SKU:7-WL-054

100 in stock

Enjoy additional discounts on orders above $500 at Lumens Depot.

Learn More

$96.00 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

View full details

Details

Product Overview

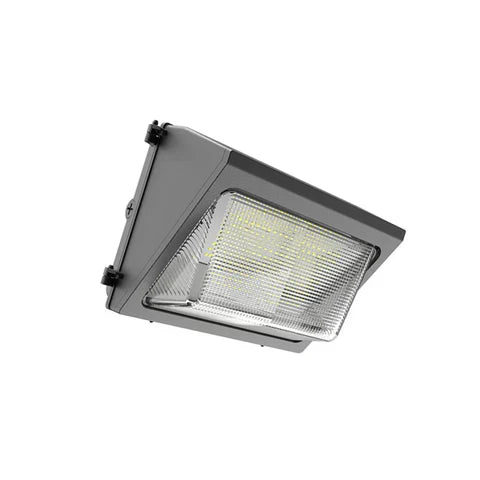

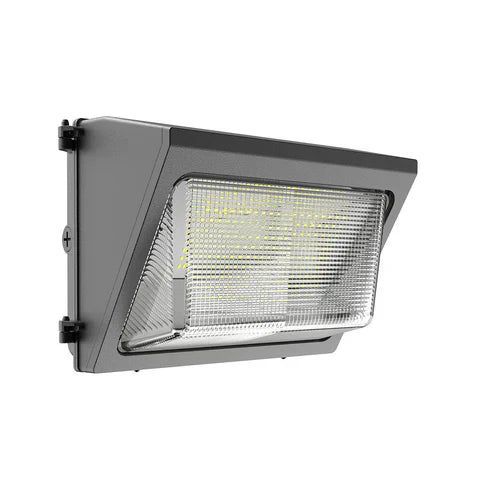

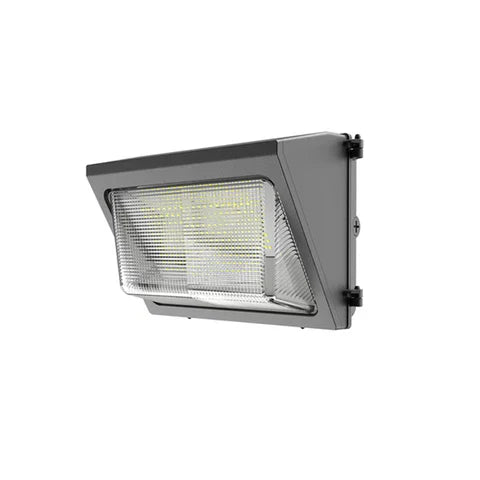

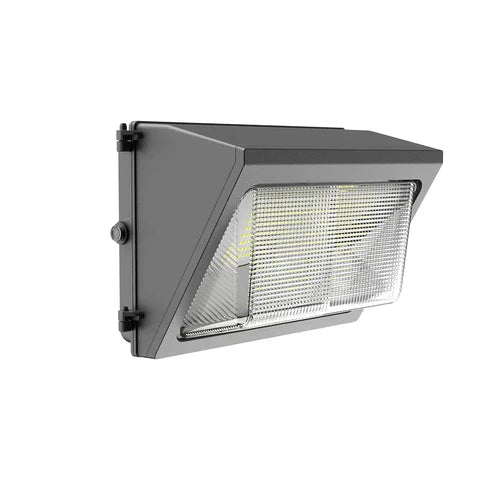

The Lumens Depot LED Wall Pack Light is a high-performance outdoor fixture featuring selectable wattage, tunable color temperature, and an integrated photocell, designed for efficient and adaptable commercial exterior lighting.

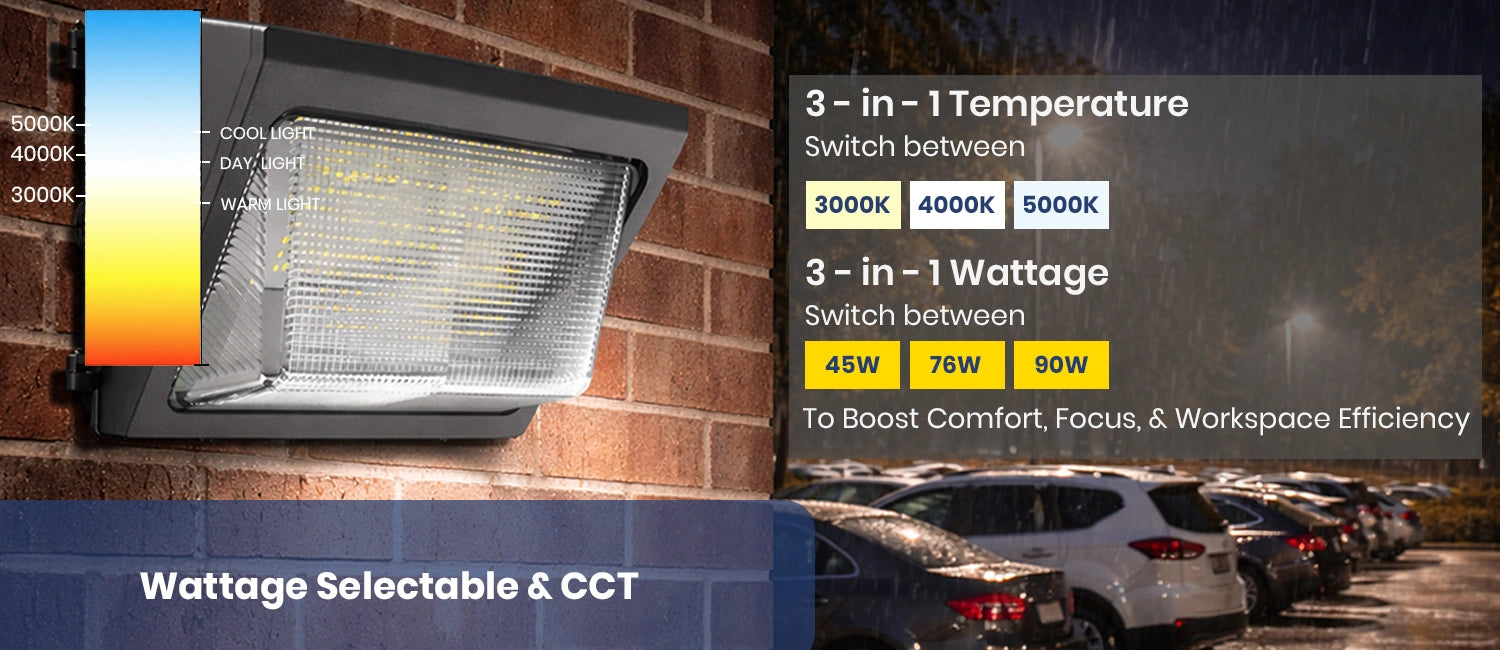

Selectable Wattage & Output
Choose between 45W, 76W, or 90W to match lighting requirements. The fixture delivers up to 11,700 lumens with high efficacy of 130 lm/W, ensuring strong illumination with reduced energy consumption.

CCT Tunable Lighting
Selectable color temperatures of 3000K, 4000K, and 5000K allow warm, neutral, or daylight output, providing flexibility to suit different environments, visibility needs, and aesthetic preferences.

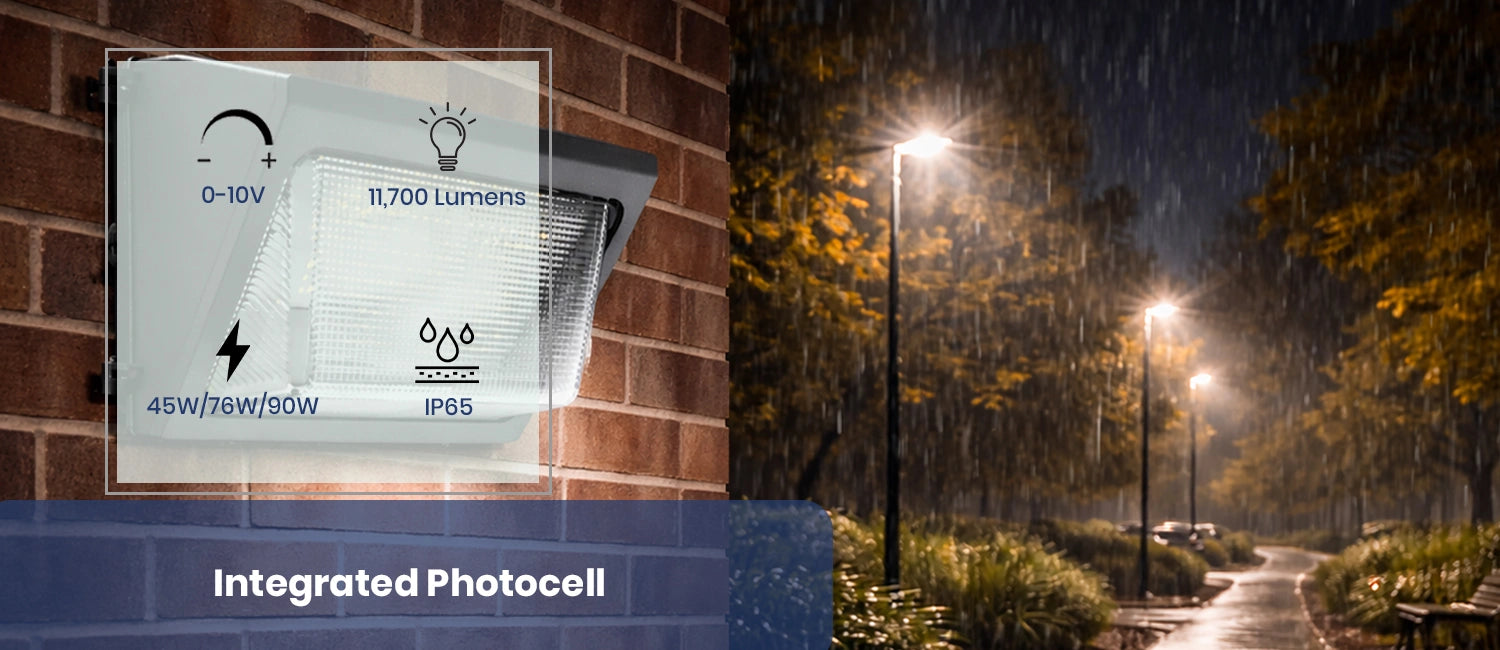

Smart Controls & Dimming
A new-generation integrated photocell enables automatic dusk-to-dawn operation. The 0–10V dimmable driver supports lighting control systems for additional energy savings and brightness adjustment.

Durable Outdoor Construction

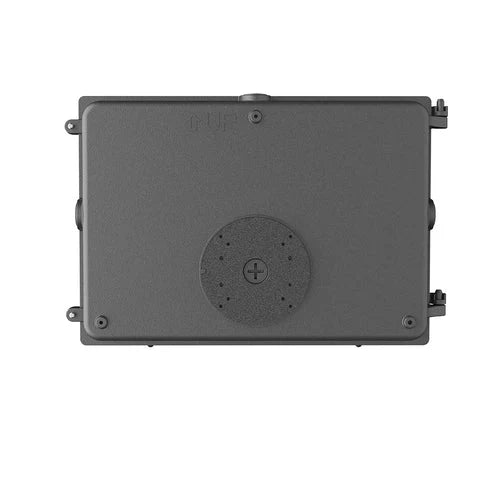

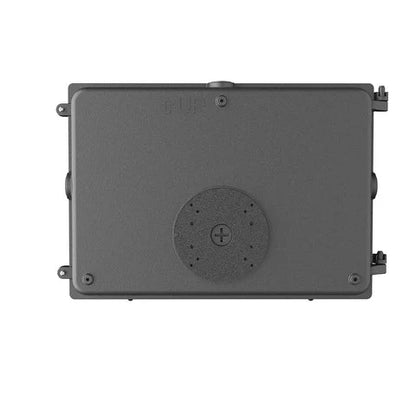

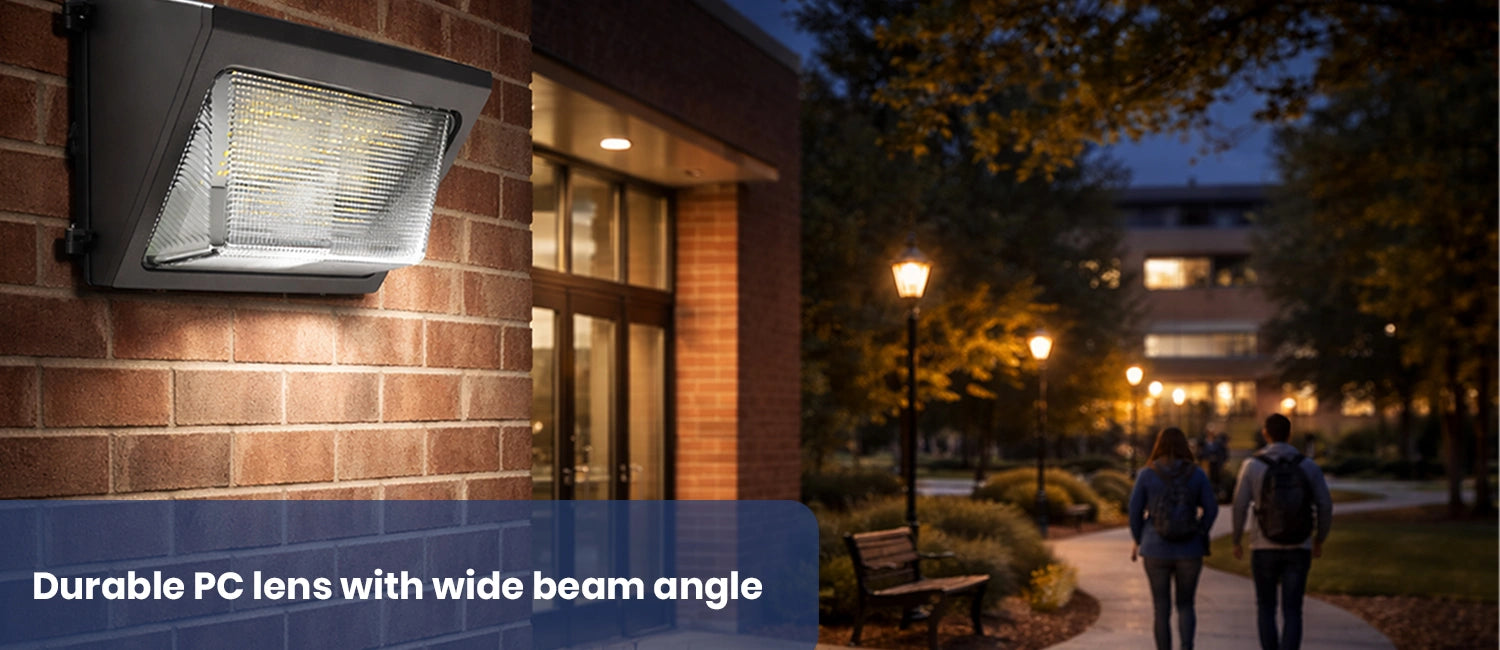

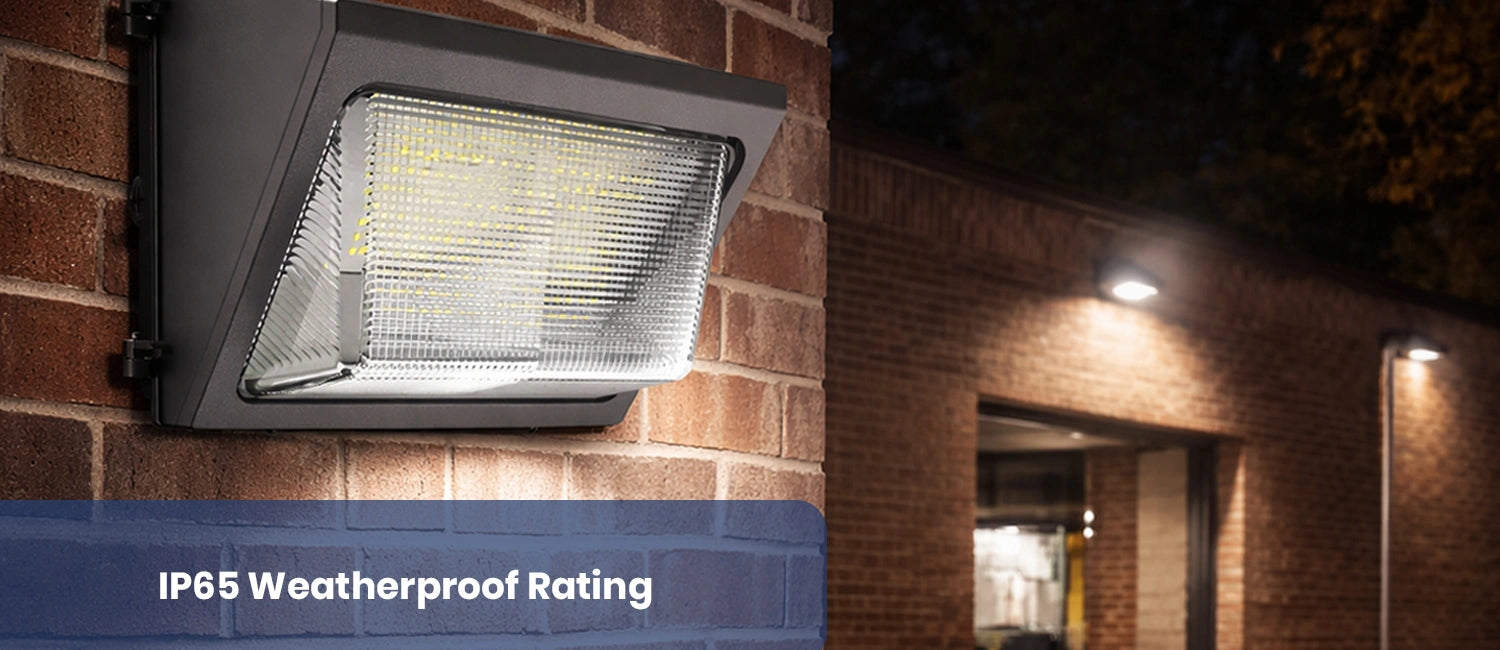

Built with rugged die-cast aluminum housing, dark bronze powder-coated finish, and a durable polycarbonate lens, the fixture is IP65 rated to withstand dust, water, and harsh outdoor conditions.

Certifications & Applications
UL listed and DLC 5.1 Premium certified, this wall pack qualifies for utility rebates. Ideal for building perimeters, parking lots, walkways, warehouses, schools, hospitals, and security lighting applications.

Specifications

Beam angle	Wide beam	Cct	3000K/4000K/5000K
Certification	UL (DLC)© Listed	Color	Bronze
Cri	>70	Dimmable	0-10V
Dlc model number	XWPE90WSCSALVP	Efficacy	130lm/w
Housing	Die-cast aluminum with powder-coated	Ip rating	IP65
Life hours	50000 Hours	Lumens	11,700 Lumens
Voltage	120-277 VAC	Warranty	5 Years
Watt	45W/76W/90W	Diffuser type	PC lens

Downloads

Installation Guide

FAQS

What wattage options are available?

This LED Wall Pack offers selectable 45W, 76W, and 90W settings for different lighting needs.

What is the maximum light output?

It delivers up to 11,700 lumens, providing strong illumination for commercial exterior areas.

Does it automatically operate from dusk to dawn?

Yes. The built-in photocell automatically turns the fixture on at night and off during daylight.

Can the color temperature be adjusted?

Yes. It offers selectable color temperatures from 3000K to 5000K for different lighting environments.

Is this fixture suitable for different mounting heights?

Yes. The selectable wattage allows you to choose a lower or higher output based on the mounting height and required coverage.

Can it be used around commercial entrances?

Yes. It is suitable for entrances, loading areas, garages, walkways, and building perimeters.

What voltage range does it support?

It operates on 120–277 VAC, making it compatible with many commercial electrical systems.

Can the 45W setting be used for smaller areas?

Yes. 45W is useful where lower light output is sufficient, while 76W and 90W provide stronger illumination.

Does it require an external timer?

No. The integrated photocell can automatically control dusk-to-dawn operation without a separate timer.

Is it useful for contractors working on multiple projects?

Yes. Its selectable wattage and CCT allow one fixture model to accommodate several exterior lighting requirements.
