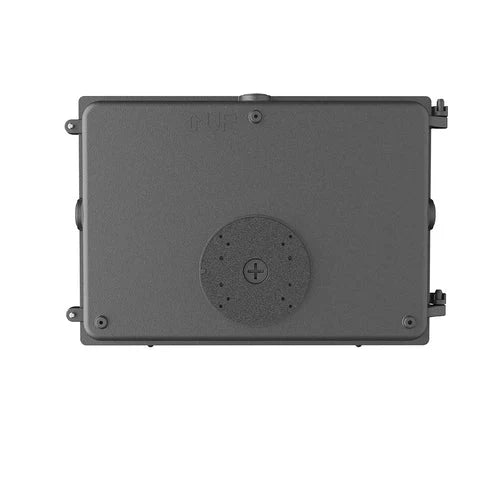

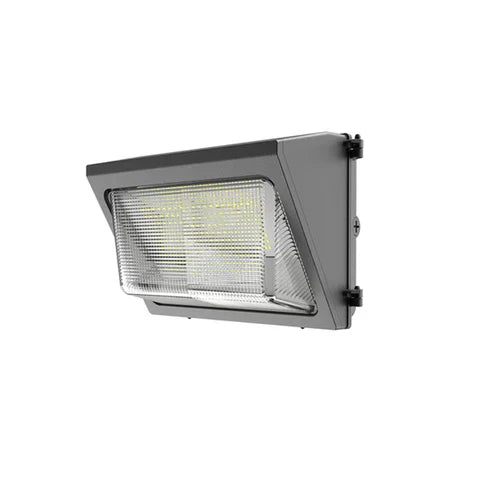

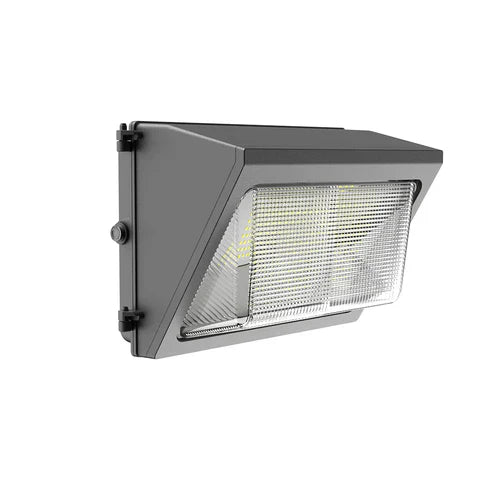

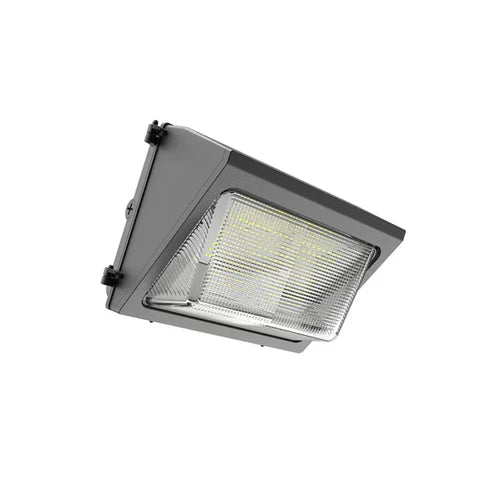

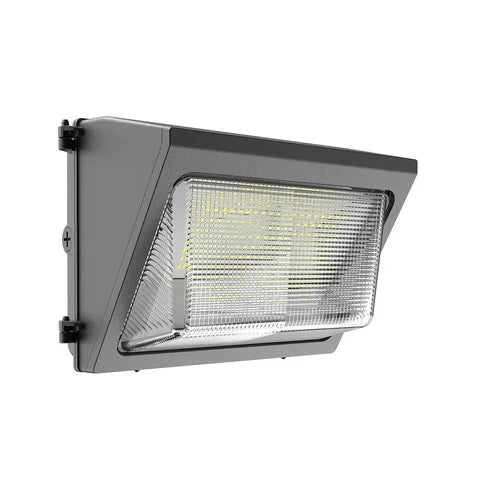

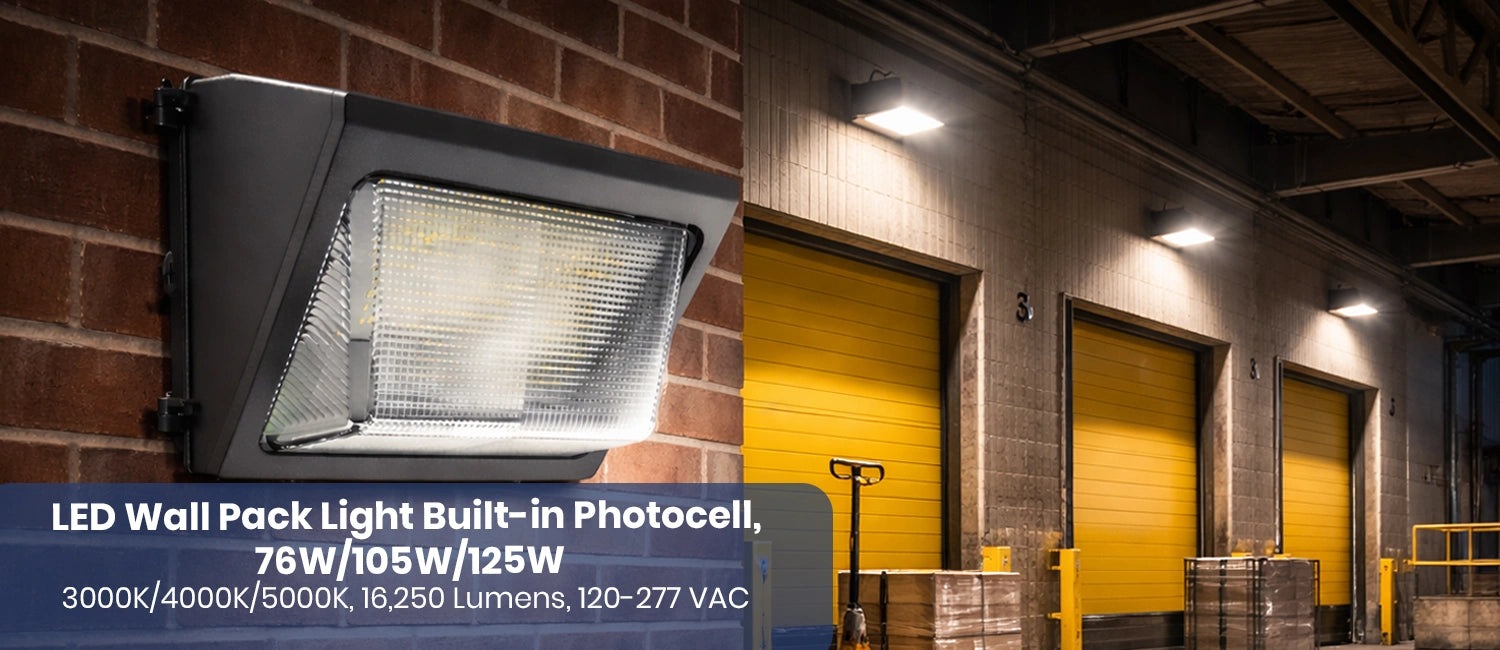

LED Wall Pack Light Built-in Photocell, 76W/105W/125W, 3000K/4000K/5000K, 16,250 Lumens, 120-277 VAC

Name: LED Wall Pack Light Built-in Photocell, 76W/105W/125W, 3000K/4000K/5000K, 16,250 Lumens, 120-277 VAC
Brand: Lumens Depot
SKU: 7-WL-055
Price: 100.00 USD
Availability: InStock

SKU: SKU:7-WL-055

100 in stock

Enjoy additional discounts on orders above $500 at Lumens Depot.

Learn More

$100.00 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

View full details

Details

Product Overview
The Lumens Depot LED Wall Pack Light is a high-output outdoor lighting solution designed for commercial and industrial use, offering selectable wattage, tunable CCT, and advanced energy-saving features.

Selectable Wattage & High Output
With selectable wattage options of 76W, 105W, and 125W, this wall pack delivers up to 16,250 lumens at 130 lm/W, providing powerful illumination while optimizing energy efficiency.

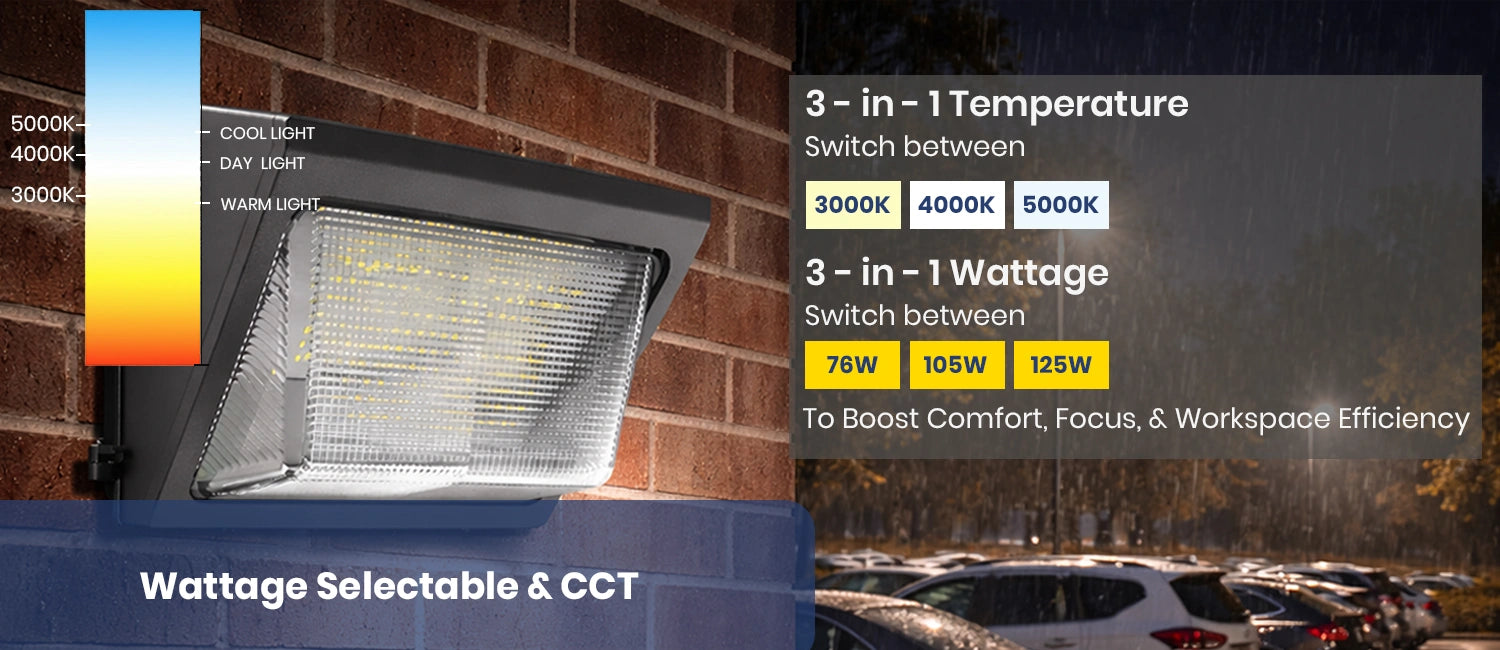

CCT Tunable Lighting
Selectable color temperatures of 3000K, 4000K, and 5000K allow on-site customization, enabling warm, neutral, or daylight illumination to suit different exterior environments and visibility needs.

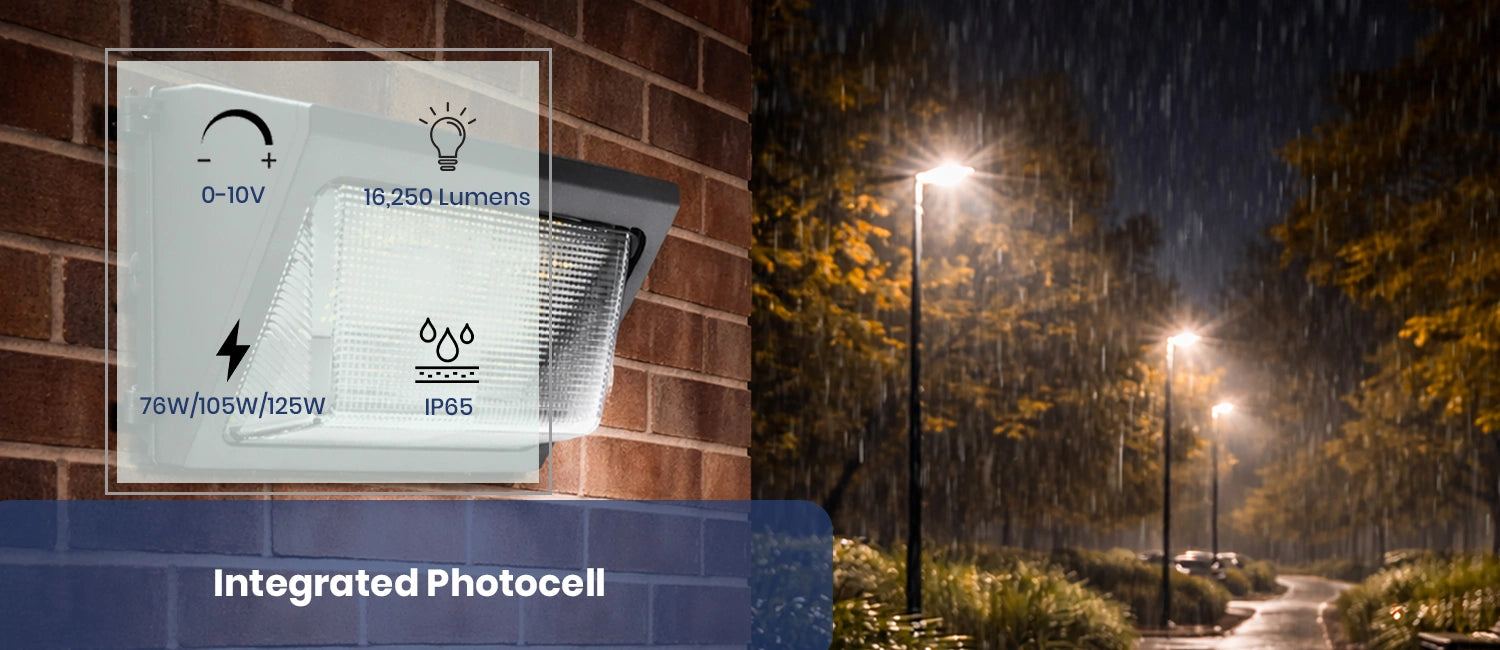

Smart Controls & Dimming
A new-generation integrated photocell enables automatic dusk-to-dawn operation, reducing energy waste. The fixture also supports 0–10V dimming and optional emergency battery backup for added safety and control.

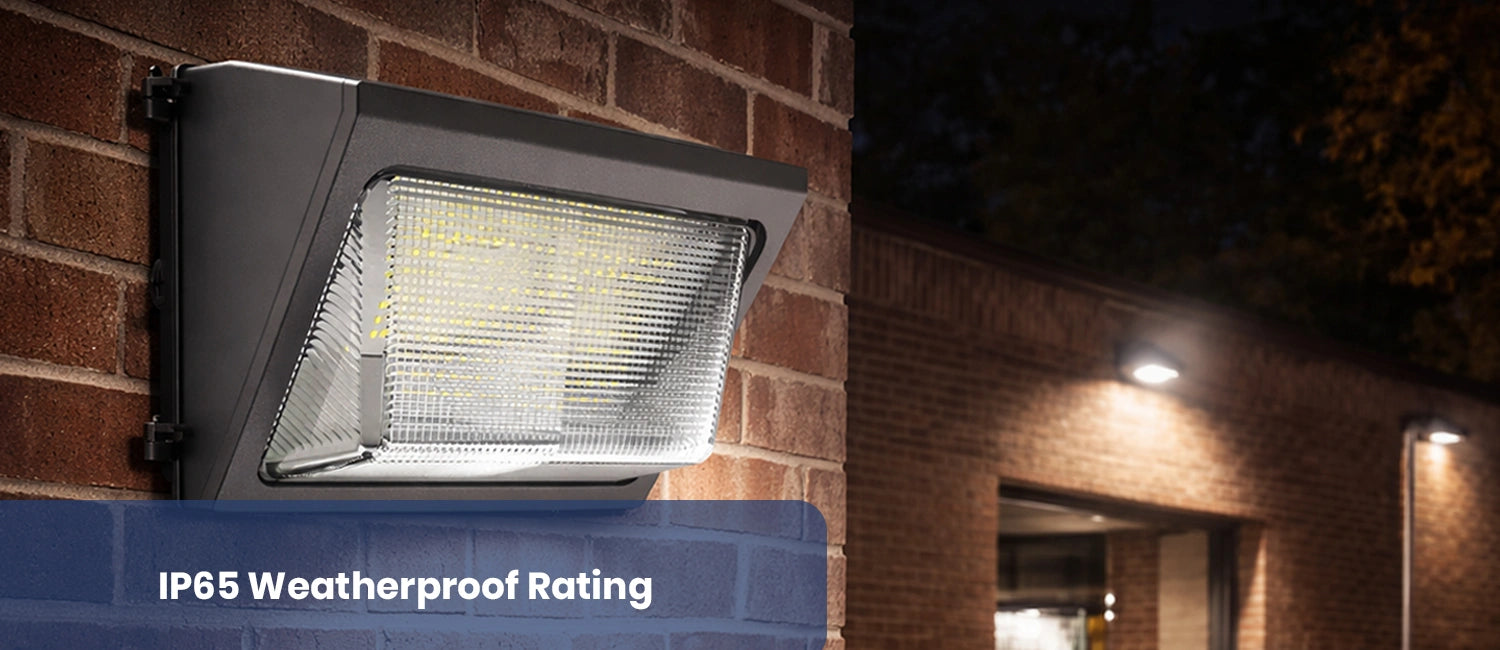

Durable Outdoor Construction

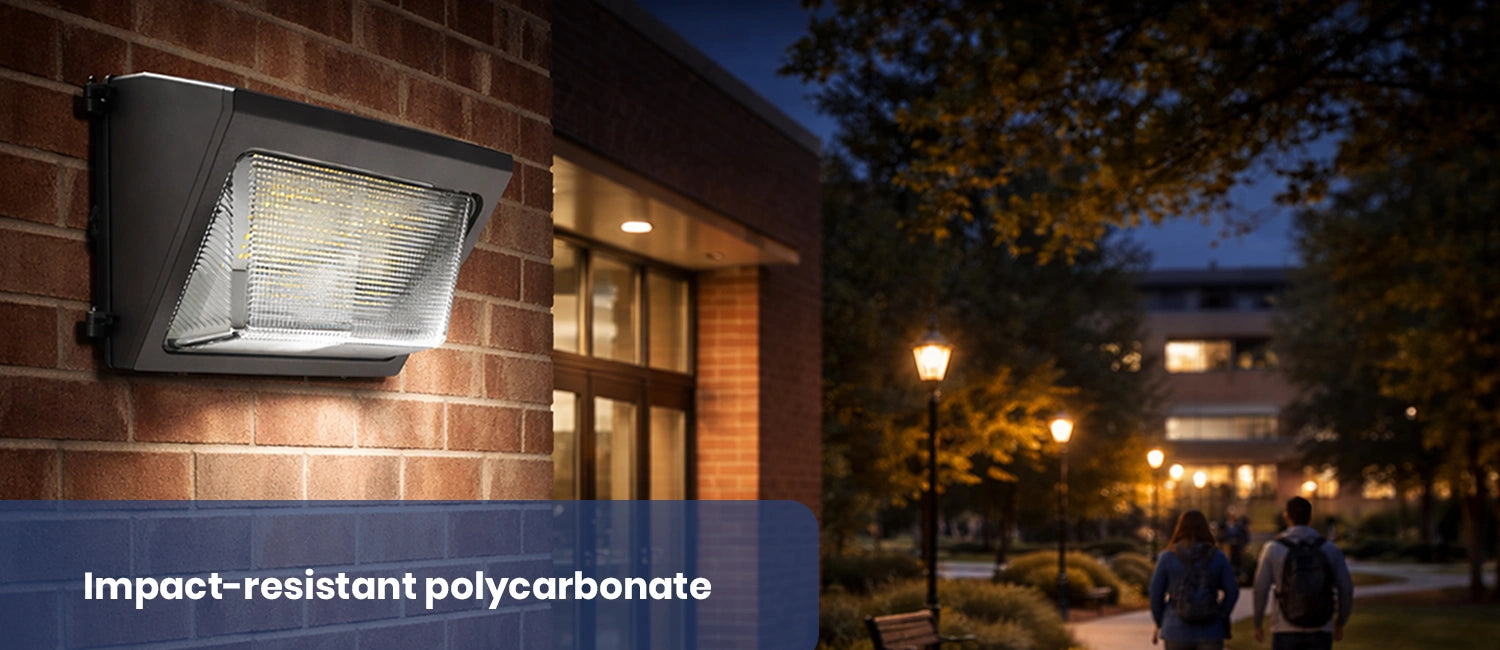

Built with a rugged die-cast aluminum housing, bronze powder-coated finish, and shatter-resistant polycarbonate lens, the fixture is IP65 rated for reliable performance in harsh weather conditions.

Certifications & Applications
UL listed and DLC 5.1 Premium certified for rebate eligibility, backed by a 5-year warranty. Ideal for building exteriors, warehouses, security perimeters, walkways, loading docks, and institutional facilities.

Specifications

Beam angle	Wide beam	Cct	3000K/4000K/5000K
Certification	UL (DLC)© Listed	Color	Bronze
Cri	>70	Dimmable	0-10V
Dlc model number	XWPE125WSCSALVP	Efficacy	130lm/w
Housing	Die-cast aluminum with powder-coated	Ip rating	IP65
Life hours	50000 Hours	Lumens	16,250 Lumens
Voltage	120-277 VAC	Warranty	5 Years
Watt	76W/105W/125W	Diffuser type	PC lens

Downloads

Installation Guide

FAQS

What wattage options are available on this LED Wall Pack?

It offers selectable 76W, 105W, and 125W settings for different lighting requirements.

How bright can this fixture get?

It delivers up to 16,250 lumens, making it suitable for high-output commercial exterior lighting.

Does it have automatic dusk-to-dawn operation?

Yes. The built-in photocell automatically controls the fixture according to ambient daylight.

Can I select the light color?

Yes. You can choose 3000K, 4000K, or 5000K to suit different environments.

Which wattage should I use?

Use 76W for moderate illumination, 105W for higher output, or 125W when maximum brightness is required.

Is it suitable for large parking and loading areas?

Yes. Its high lumen output works well for loading docks, parking facilities, warehouses, and large building exteriors.

What voltage range does it support?

It operates on 120–277 VAC, making it compatible with many commercial electrical systems.

Can it be used on industrial buildings?

Yes. It is suitable for factories, distribution centers, manufacturing facilities, and industrial properties.

Does it require an external photocell?

No. The photocell is already integrated, so a separate dusk-to-dawn sensor is not required.

Can this fixture reduce the number of wall pack models needed for a project?

Yes. Its three wattage and three CCT settings allow one fixture to cover multiple lighting requirements.
